| Prod Model: |
DWS-10 |
| Diamond Beads Diameter: |
11.5mm |
| Fixing Method: |
Rubber |
| Manufacturing Arts: |
Sinter |
| Usage: |
Granite Quarry |
| Diamond Beads: |
40beads/Meter |
| Lifespan: |
7-25m2/M |
| Sawing Speed: |
6-18mm/Min |
| Linear Speed: |
28-33m/S |
| Delivery Time: |
7-10days |
| OEM&ODM: |
Acceptable |
Product Description

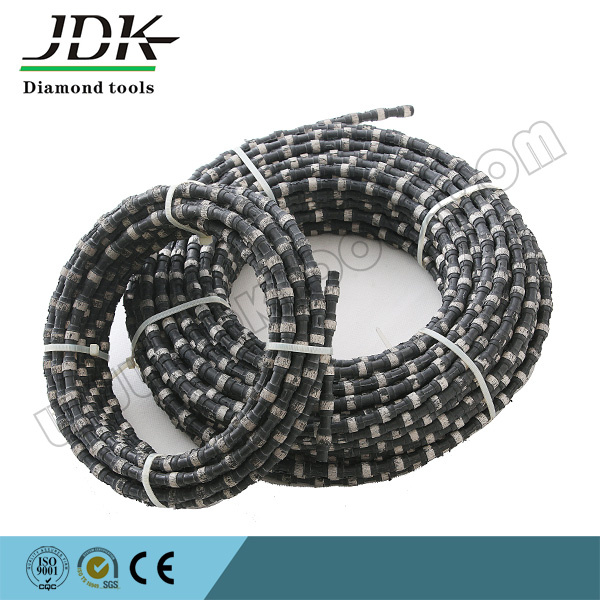

Description for the Diamond Wire with Rubber fitting:
1,This type of wire have long lifetime, stable performance and are more flexible to different environment condtion.
2,The advantage of rubber fitting ensures the wire is good before the beads wear out.
3,This diamond wire have been widely used in stone quarrying and concrete cutting
A).Change the diameter according to the request of customers
B).Supply different hardness of beads HRB (95-105)
C).Supply different length of beads
D).We develop special rubber and the technology of vulcanization, make sure the diamond wire can work in all hard-working condition.| Model No. | Diameter (mm) | Fixing Type | Beads/M | Material type | Sawing Speed (mm/min) | Lifetime (m2/m) | Linear Speed (m/s) |
| GQR11.4 | 11.5 | RUBBER | 40 | Class1-2
Class 3-4
Class 5 | 12-18
10-15
6-10 | 15-25
12-18
7-12 | 28-33
28-33
28-30 |
Other Specifications Are Available Upon Request.
Our Feature:
Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:
1. Manufacturer with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:
T/T, Western Union, L/C, Cash
Delivery day:
For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.
Packaging:
The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:
<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
