| Prod Model: |
6.5mm-11.5mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
a |
| Application: |
Stone |
| Fix: |
Plastic/Rubber/Spring Pressing |
| Beads: |
37/40 |
| Certificate: |
ISO9001:2008 |
| Raw Material: |
Use Diamond From Element Six |
| Package Details: |
Carton, Box |
| Delivery Details: |
7-15 Days After Payment Received |
| Performance: |
Stable Performance and Long Lifespan |
| Service: |
Quickly Response |
Product Description

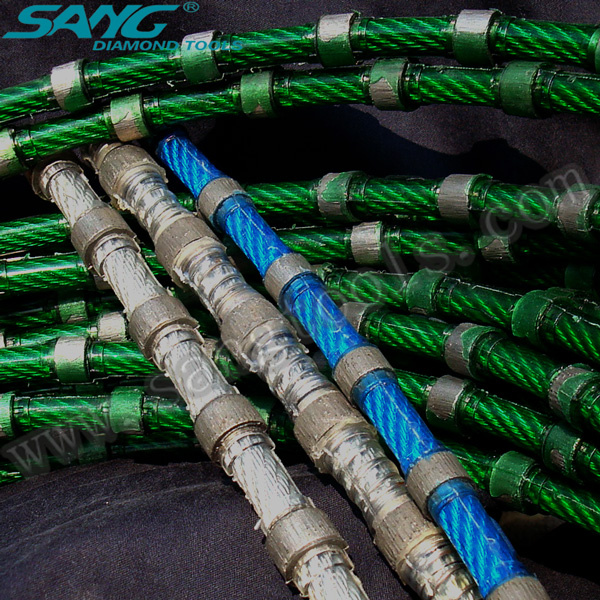

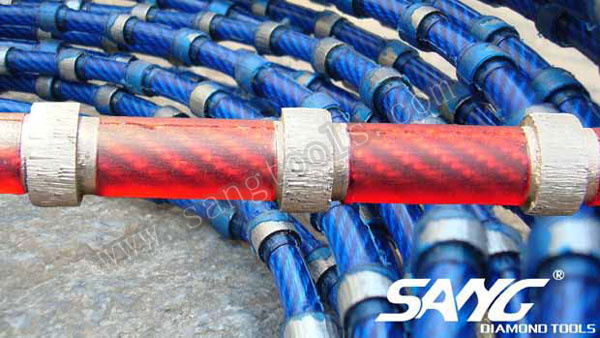

Cutting with diamond wire should be considered when there is a need for cutting composites of dissimilar materials, because the gentlecutting action of diamond wire does not smear one material into another and does not snag at the border between two materials.
This feature is especially useful in failure analysis. Diamond wire can easily cut through stacks of ceramic/ metal/ plastic/ silicon composites without snagging or smearing the various layers onto one another. Or even the voids between layers.
Features:
1) Diameter: 8.0mm to 11.5mm

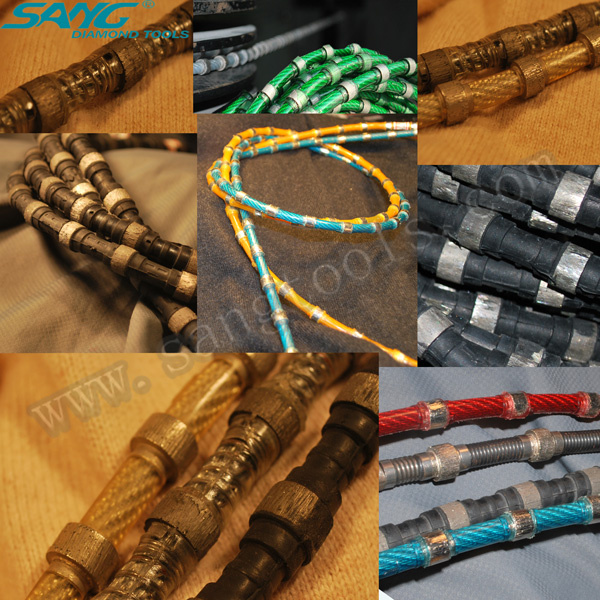

2) The fixation is spring, plastic, and rubber
3) Used for concrete, construction and stone processing

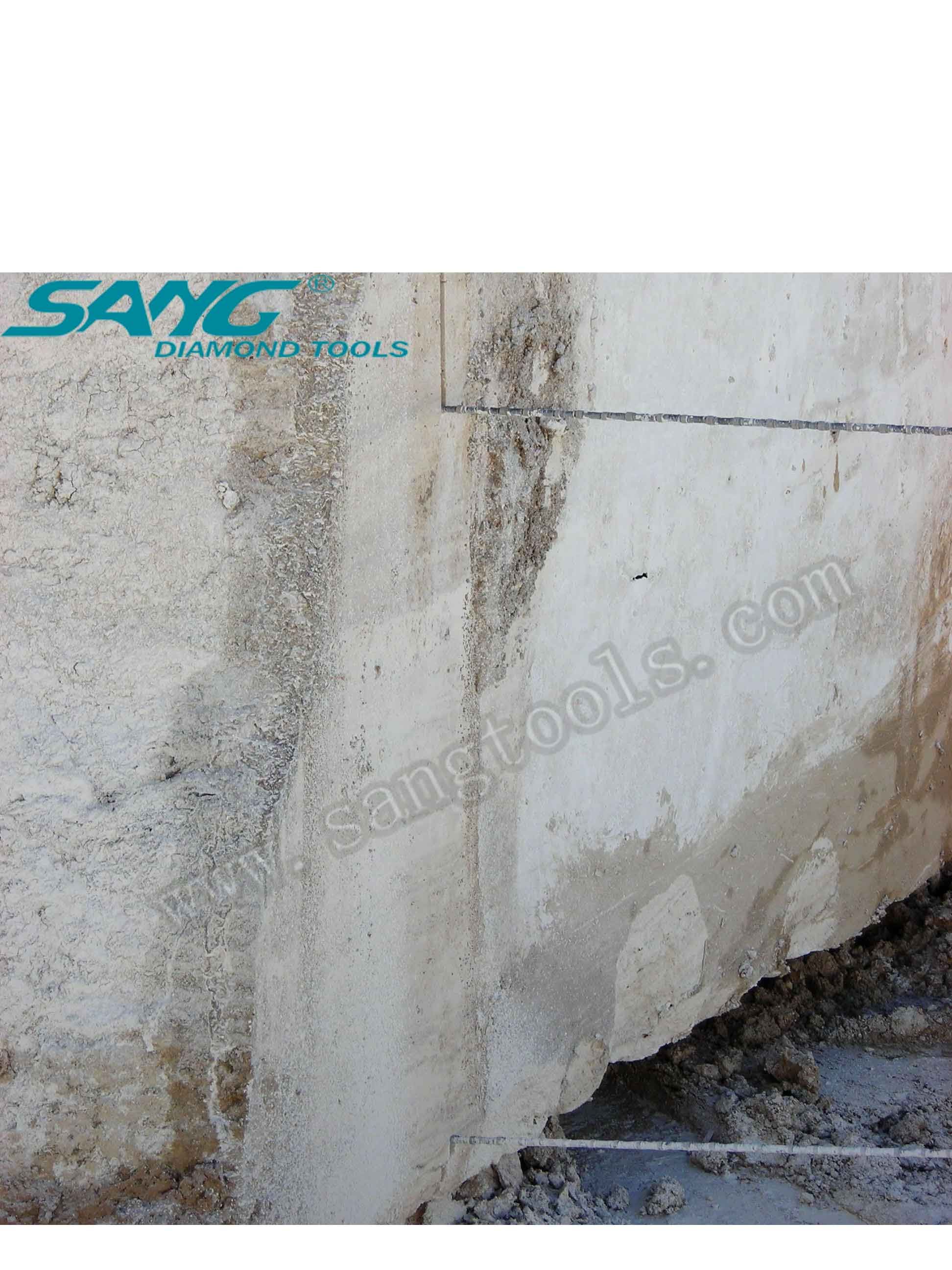

1. Quarries, for extracting raw blocks.
Bead diameter(mm) Material Bead No. PCS/meter Fix
11.5(11.0) Granite Sandstone 40 Plastic/Rubber
11.5(11.0) Marble 28-32 Spring pressing
11.5(11.0) Marble 37 Rubber
Recommendations:
Rubber wires are recommended for Granite quarry. It is better for the beads to adhere and support cable. Rubber wire is temperature-resistance. It is applicable for less water spraying.
2. Stationary blocks saws, for block trimming and cutting to slab.
Bead diameter(mm) Material Bead No. PCS/meter Fix
10.5 Granite 37 Rubber/Plastic
10.5 Marble 37 Plastic
3. Profilling, for proccessing special shape. Or curved slabs.
Bead diameter(mm) Material Bead No. PCS/meter Fix
9.0(8.5) Granite 37 Plastic
9.0(8.5) Marble 37 Plastic
4. Application on multiwire machine, for cutting slab with high efficiency.
Bead diameter(mm) Material Bead No. PCS/meter Fix
8.5 Granite 37 Plastic
8.5 Marble 37 Plastic
Maintenance Information
The rotation of the wire should be timely checked.
The beads wear profile should be regularly inspected.
The connections should be checked timely.
Multi-wire saw is available as customer's request.
please provide photos of your stone if possible, we would supply best and suitable tools for you base on your stone.
D2(mm) |
Usage rang
|
Fixation
|
Beads No./m
|
11
|
Concrete cutting, Granite quarries
|
Plastic or rubber
|
40
|
Marble quarries
|
Spring pressing
|
28-33
|
10.5
|
Granite block squaring
|
Molding infusing
|
37
|
Marble block squaring
|
8.5
|
Marble profiling
|
Molding infusing
|
37
|
Granite profiling
|
6
|
Curve cutting
|
Molding infusing
|
37
|
