| Prod Model: |
DX-35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Magnetic Adhesion: |
10000n |
| The Type Of Shank: |
19mm |
| Stroke: |
118mm |
| Magnetic Base Size: |
80*168mm |
| Input Power: |
1100W |
| The Max Cutting Depth: |
50mm |
| The Max Cutter Capacity: |
35mm |
| Countersunk Drilling: |
10-35mm |
| The Min Cutter Depth: |
5mm |
| Load Speed: |
450rpm |
| Structure: |
Deep Hole Drilling |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Number Of Shaft: |
Other |
| Hole Diameter: |
35mm |
| Certification: |
ISO4001 |
Product Description

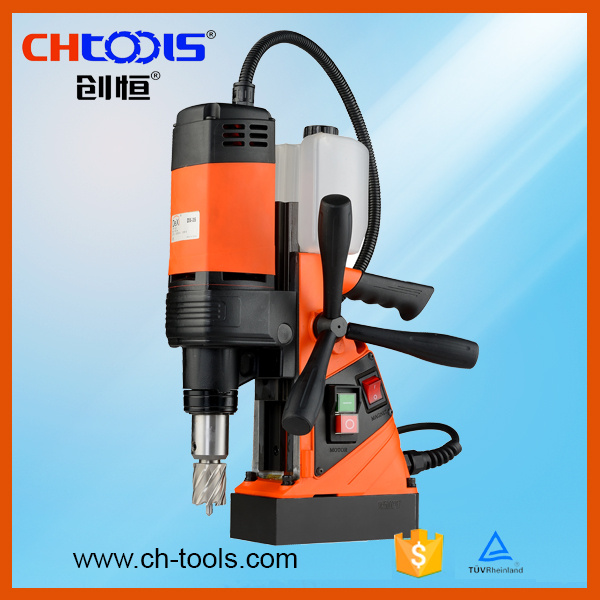

DX-35 Annular cutter Magnetic Base Drill
Magnetic Drill DX-35
Twist drill: φ 13mm
Rated voltage: 220V
Rated input power: 1100W
No-load speed: 450RPM
Max attraction: 10000N
Max travel: 118mm
Drill capacoty: 35mm
Cool mode: Automatic Internal Cooling
Drill mode: Hand
Core Size: 80*168mm
N. W.: 10.5kgs
G. W.: 14.8kgs
Advantage: Tilt protection design for motor air inlet avoid liquid or debris falling into the inside of motor.
Two- way silding rails , which make the motor height be adjustable according to the different requirement.
Strokr up to 210mm. Rail positioning function, which can make the motor stop at any position to prevent self-
rig decline and damage cutter.
Design of internal self-lubricating function ensure longer life of gear.
Magnetic suction protection ensure that the motor does not start on non-metallic flat or low suction.
| Type: DX-35 | Magnetic adhesion: 10000N |
| Stroke: 118mm | The min cutter depth: 5mm |
| input power: 1100W | Total weight: 10.5kg |
| The max cutting depth: 50mm | The max cutter capacity: 35mm |
Zhejiang Xinxing Tools Co., Ltd. Established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. It is the worldwide leader in annular cutter industry.
Our products include: Annular cutter, rail cutter, hole saw, spade drill, step drill, countersink, solid carbide cutter, magnetic drill machine, diamond drilling bit, deep hole drill, etc.
We concentrate on manufacturing high-quality cutting tools, normalize ISO9001: 2008 quality control system under operation strictly, and ensure unified high standard quality requirements. Staying with hardwork and perseverance, CHTOOLS Brand has been created and widely acknowledged resulting from the valuable trust of all esteemed customers.

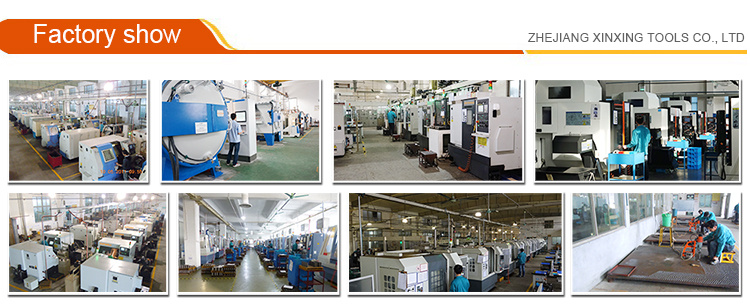

We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory. We also own top detecting instrument in the world, conducting a series of detections to raw materials, heat treatment, and cutting tools. For you, which means: The most reliable products supply and the fastest delivery time.
For 25 years, the company has won over one hundred honors successively.
In future, we will continue to devote to be an international leading cutting tools manufacturer, to provide you with more effective and excellent service, be a designated cutting tools supplier who you can rely on from your deep heart.
