| Prod Model: |
BW-L02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

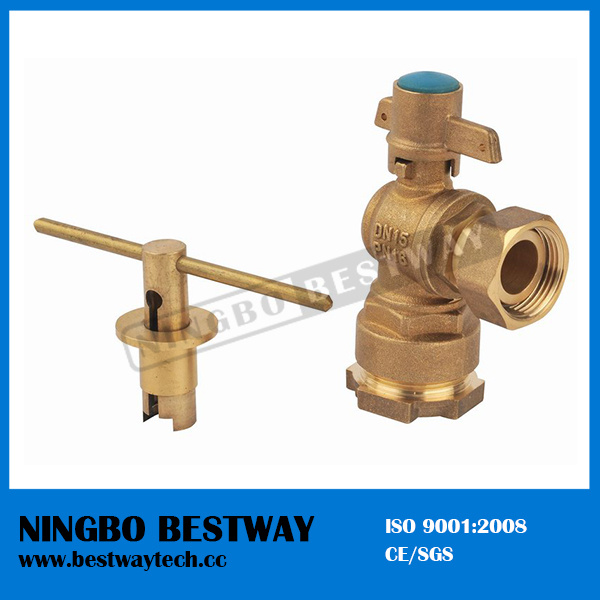

Dzr Brass Lockable Ball Valve |
| Size: |
Dn15 to Dn25 |
| Power: |
Hydraulic |
| Key Material: |
Brass |
| Temperature Of Media: |
Normal Temperature |
| Working Medium: |
Water, Oil, Gas |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Angle Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
Product Description
Product name: BrassLockable Ball Valve/ Brass anti-theft Ball Valve/Brass Ball Valve
Description:
Material |
Brass Body, Brass Bonnet, brass ball,Brass Stem, PTFE ball seat, brass short or long handle or magnetic zinc handle
Brass can be CuZn39Pb3, CZ121, C37710, CW614N, CW617N, DZR, etc |
Surface |
Natural brass or Nickel plated |
Size |
DN15 x 3/4" x 20mm, DN15 x 3/4" x 25mm, DN15 x 1" x 25mm |
Testing Pressure |
100% tested with 0.6MPa - 0.8MPa by air. |
Thread |
BSP & NPT for selecting |
Samples Time |
1) 2 days - For our existing samples for reference
2) 15 days - If new size, need make the new mould |
OEM Acceptable |
Yes |
Production Capacity |
100,000 pcs each month |
Packing Details |
Poly bag, inner box, out carton and pallet. |
Payment Term |
T/T ,L/C,,D/P,D/A,PAYPAL,WESTERN UNION |
Delivery Time |
20 days to 40 days after confirming the order |
Minimum Order Quantity |
300-2000 Pieces |
Technical Standard:
Working pressure: 2.0Mpa
Working medium: Water, oil, gas
Working temperature: -20° C≤ T≤ 150° C
Thread standard: ISO228
There also magnetic zinc lock handle or long brass handle is available
We always insisting on the principle of "Competitive price, superior quality, prompt delivery and excellent service makes all customers satisfied".
Welcome to visit our company and do business with us. We sincerely wish to establish long standing cooperation with you. Any of your inquiries will get our close attention.
For custom order, we can design full-color custom packaging to match your brand, if requires. Most shipments include boxes packed inside an outer carton and placed on a wooden pallet.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We can provide the samples to you for testing if you need.
For more information, pls be free to contact with us...
Ningbo Bestway M&E Co., Ltd. is located in ningbo China, which was established in June of 1997. We specialized in manufacturing brass & bronze valves and water plumbing. Our major products are ball valves, angle valves, gate valves, check valves, bibcocks, drinking taps, faucets, fittings, water meter accessories and so on.
We are professional supplier for lockable ball valves, including magnetic & mechanical, straight & angle type which are with competitive price and good quality in Europe, south America, Asia, etc. We developed new products ferrule & saddle which are popular in Middle East, Asia and so on.
We are proud that we have a professional technologist team. We could supply various valves in material of brass & bronze, such as dzr, cw614, cw617, c83600, c84400, LG2, no lead brass, which are suitable for Europe and the USA market. We have obtained ISO9001, CE certificate. We have ability to design and OEM according to clients' reqirement.
We are insisting on service principle " bestway is your best partner for water solution". Sincerely weclome to visit us for good cooperation!
