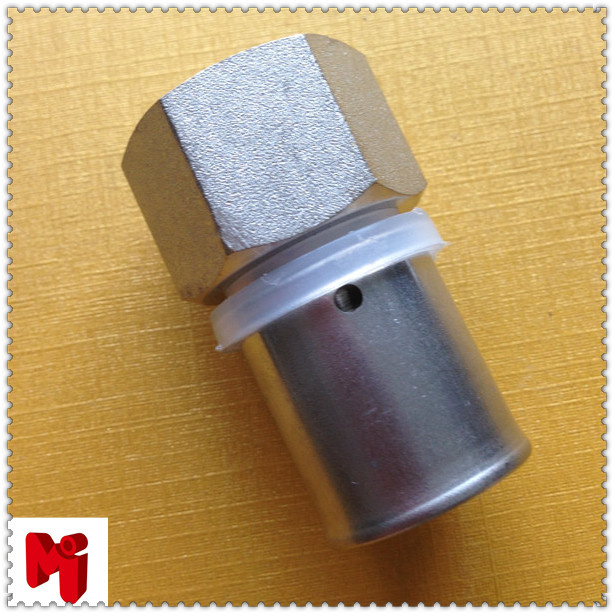

Dzr Brass Press Fitting for Pex Al Pex Pipe
| Price: |
US $ 0.76-0.78/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MPL03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
Male |
| Structure: |
Vertical |
| Flexible Or Rigid: |
Rigid |
| Material: |
Copper |
| Standard: |
Standard |
Product Description
Dzr Brass Press Fitting for Pex al pex pipeA:Used for:
1, Hot&cold water systems
2, Gas translation.
B, Products Description:
1). Material: Brass optional: Normal brass, DZR, CW617N
2)Light weight, convenient to transport and handle
3)High strength
4)less resistance
5)sound insulation
6)No pipe furring
7)easy to install
7)Colors: Silver, other custon-made colors available
8)OEM/ODM welcome
9)Healthy and non-toxic, bacterial neutral, conforming to drinking water stndards
10)Resistant to high temperature(110)with good impact strength(over 500Mpa)
11)good heat preservation
12)Smooth inner walls reduce pressure loss and increase folw speed
13)Forged brass body
14)chorme or brass plated fitting
15) Type: Tee, elbow, couple.
16)Excellent Leak-Free Sealing System in heavy vibration, high thermal stresses and high impulse
17)connect with pex-al-pex pipe, pex pipe
Technical specification
Material: Brass
Suitable medium: Water, gas, oil
Nominal pressure: 1.6Mpa
Working temperature: < 150° C
Pipe thread to ISO228
C,Detail goods:| Modle | Name | Spec | Picture |
| MFS | Straight | 16mm,20mm,25mm,32mm
40mm,50mm,63mm |  |
| MFS | Male straight | 16*1/2M,20*1/2M,20*3/4M
25*3/4M,32*1,40*11/4,50*11/2M,63*2M |  |
| MFS | Female straight | 16*1/2F,20*1/2F,20*3/4F,25*3/4F
32*1F,40*11/4F,50*11/2F,63*2F |  |
| MFl | Elbow | 16mm,20mm,25mm,32mm
40mm,50mm,63mm |  |
| MFL | Female elbow | 16*1/2F,20*1/2F,20*3/4F,25*3/4F
32*1F,40*11/4F,50*11/2F,63*2F |  |
| MFL | Male elbow | 16*1/2M,20*1/2M,20*3/4M
25*3/4M,32*1,40*11/4,50*11/2M,63*2M |  |
| MFT | TEE | 16mm,20mm,25mm,32mm
40mm,50mm,63mm | |
| MFT | Female tee | 16*1/2F,20*1/2F,20*3/4F,25*3/4F
32*1F | |
| MFT | Male tee | 16*1/2M,20*1/2M,20*3/4M
25*3/4M,32*1M | |
D,Packing &Shipping:
Packing:
1, 5pcs or 10pcs in one box, then 8 boxes in carton
2, Pallet if needed.
3, Customer requirment print or lable on box
Shipping:
1,Delivery date:25 days after order confirmed.
2,100% delivery in time
3,LCL order and part shipment accept
4,Ship by express ,air and sea.
