| Prod Model: |
9J3656 |
| Weight: |
31.5kgs |
| Material (1): |
Boron Steel |
| Material (2): |
High Carbon Steel |
| Original Brand: |
Caterpillar |
| Shape: |
Double Bevel Curved |

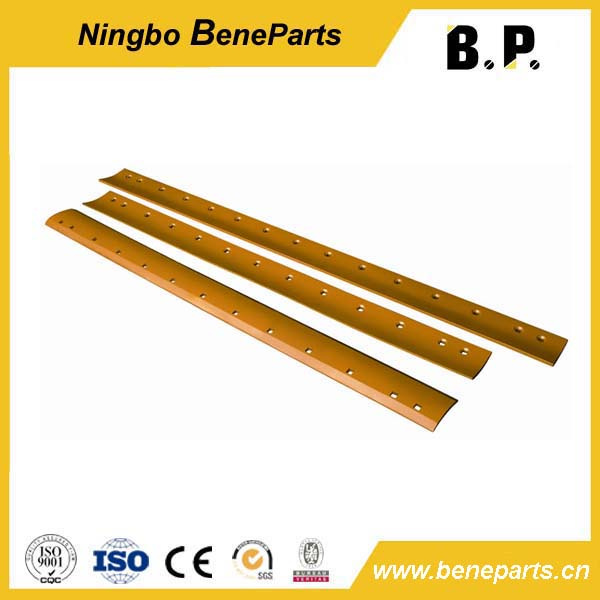

Product Description
1. Description| Part No.: | 9J3656 |
| Description: | DBC Grader Blades |
| Applied Machine: | Motor grader |
| Material: | High carbon steel, Heat treated boron steel (30MnB) |
| | |
| Measurement: | |
| Weight: | 31.5Kg |
| Width: | 152mm |
| Thickness: | 13mm |
| Length: | 2438mm |
| Bolt: | 3/4'' plow bolt |
| Bolt Qty.: | 17 |

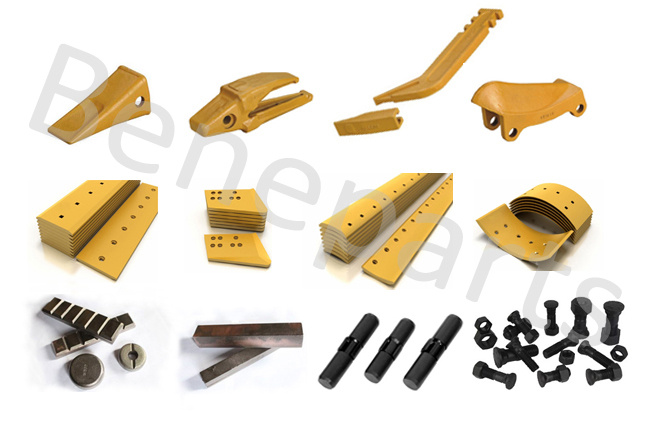

2. Our products range:

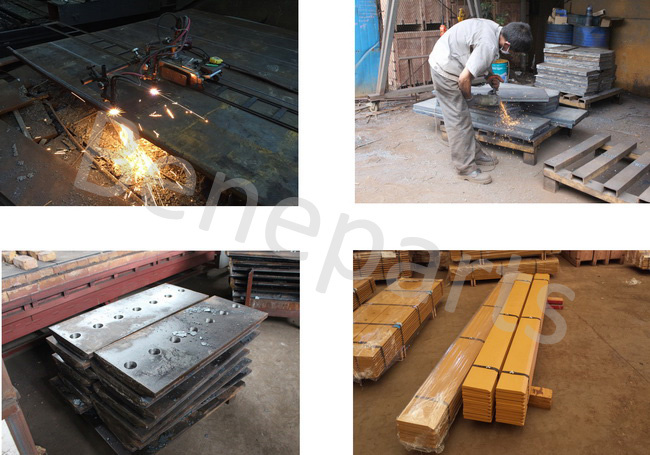

3. Production line:
4. Popular items blow for reference:| Part Number | Measurement (mm) | Description | Brand | Weight(Kgs) |
| 232-70-12142 | 1828mmX152mmX13mm 5/8"X8 | DBC Grader Blades | Komatsu | 24 |
| 4T3512 | 1219mmX203mmX25mm 3/4"X9 | DBC Grader Blades | CAT | 45 |
| 7T1627 | 2438mmX203mmX19mm 3/4"X17 | DBC Grader Blades | CAT | 67 |
| 7T1625 | 2133mmX203mmX19mm 3/4"X15 | DBC Grader Blades | CAT | 59 |
| 7T1638 | 1828mmX203mmX19mm 3/4"X13 | DBC Grader Blades | CAT | 50 |
| 9W2341 | 1524mmX203mmX19mm 3/4"X11 | DBC Grader Blades | CAT | 42 |
| 9W2339 | 1219mmX203mmX19mm 3/4"X9 | DBC Grader Blades | CAT | 33.5 |
| 7T1630 | 2438mmX203mmX19mm 5/8"X17 | DBC Grader Blades | CAT | 67 |
| 7T1623 | 2133mmX203mmX19mm 5/8"X15 | DBC Grader Blades | CAT | 59 |
| 7T1634 | 1828mmX203mmX19mm 5/8"X13 | DBC Grader Blades | CAT | 50 |
| 9W2340 | 1524mmX203mmX19mm 5/8"X11 | DBC Grader Blades | CAT | 42 |
| 9W2338 | 1219mmX203mmX19mm 5/8"X9 | DBC Grader Blades | CAT | 33.5 |
| 7T1628 | 2438mmX203mmX16mm 3/4"X17 | DBC Grader Blades | CAT | 56 |
| 7T1624 | 2133mmX203mmX16mm 3/4"X15 | DBC Grader Blades | CAT | 49 |
| 7T1639 | 1828mmX203mmX16mm 3/4"X13 | DBC Grader Blades | CAT | 42 |
| 9W2329 | 1219mmX203mmX16mm 3/4"X9 | DBC Grader Blades | CAT | 28 |
| 7T1631 | 2438mmX203mmX16mm 5/8"X17 | DBC Grader Blades | CAT | 56 |
| 7T1643 | 2133mmX203mmX16mm 5/8"X15 | DBC Grader Blades | CAT | 49 |
| 7T1636 | 1828mmX203mmX16mm 5/8"X13 | DBC Grader Blades | CAT | 42 |

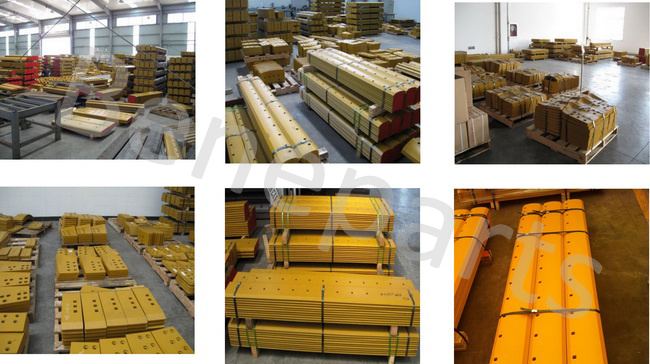

5. Our warehouse:
6.Company informationNingbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc.. Our parts cover machine brands Caterpillar, Komatsu, Volvo Doosan, Daewoo, Hyundai, Case, JCB, Kobelco, Liebherr John Deere etc.
Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.
Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.
Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
7.Contact Information
Ningbo Beneparts Machinery is a young company armed with hard-won experience from years of success in the G. E. T. Industry and new-kid-on-the-block enthusiasm. We have a solid reputation as being a company that can deliver what you need to the specifications that you demand. We are proud of our ability to deliver your requirements when and where you need them, and most importantly, produced at the highest quality levels. Coupled with competitive prices we believe that Ningbo Beneparts Machinery has a winning formula to be a "supplier of choice. "
Our extensive services include, but are not limited to, the following:
· On hand inventory of over 6000 Ground Engaging Tools - 500 that were developed just last year
· The capability to develop any part according to your drawings or samples
· 3D designs to ensure accurate fitment or new tooling within 15 - 20 days
· Prompt delivery, usually within 30 days
· A one-year, full replacement warranty in the rare event of manufacturing defects or breakage
· Our guarantee that we will only use the best materials and chemical components
· Electric and/or gas furnaces equipped with precise electronic temperature controls for state of the art heat treatment
· Sand and lost wax processes with the capacity to produce parts ranging in size from 0.5 KG to 2000 KG
· The ability to validate tensile strength, yield strength, hardness values, and microstructures
· Stellar after sales service
· A world-wide network of clients and suppliers that ensures an excellent working relationship
AND...
· The dedication to produce and supply superior quality parts coupled with our energy and passion to be the best.
We are only a "click" away on the internet or by email. We will do our utmost to make even the most complicated projects happen for you. We will double or triple check all specifications and quality standards, pack, and deliver your finished parts to wherever you need them to be. GIVE US A TRY
Ningbo Beneparts Machinery.
At your service.
