| Prod Model: |
SB81A |
| Chisel: |
42cr |
| Tool Diameter: |
140mm |
| Excavator: |
Komatsu,Cat,Case,Hitachi,Jcb,Kobelco,Volvo,Doosan |
| Breaker Type: |
Top Type, Box-Silence Type, Side Type |
| Certificate: |
Ce,ISO9001 |
| Warranty: |
14 Months |
| Carrier Weight: |
18-26 Ton |
| Color: |
Yellow or as Customer′s Request |
| Operation Weight: |
3916 Lb |
| Impact Energy: |
4200 Joule |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Hydraulic Breaker |
Product Description
edt msb hydraulic breaker hammer for 18-26 tons excavator
Our products are based at unique and deep engineering developments which were stared at 1995. Our chief engineer is the original developer from Korea.Our R&D team are all Korean engineers.For the past 20 years ,we have constantly developed future oriented hydraulic breakers to meet changing market requirements.
Whatever your industry!
Choose our hydraulic breakers as your partner for a huge range of tasks.
Suitbale for a wide range of carriers like wheeled and carwler excavators will get the job done-quickly and economically!
We can supply Box/Silence type,Top type,Side type hydraulic breakers,whatever you need we can supply for you!

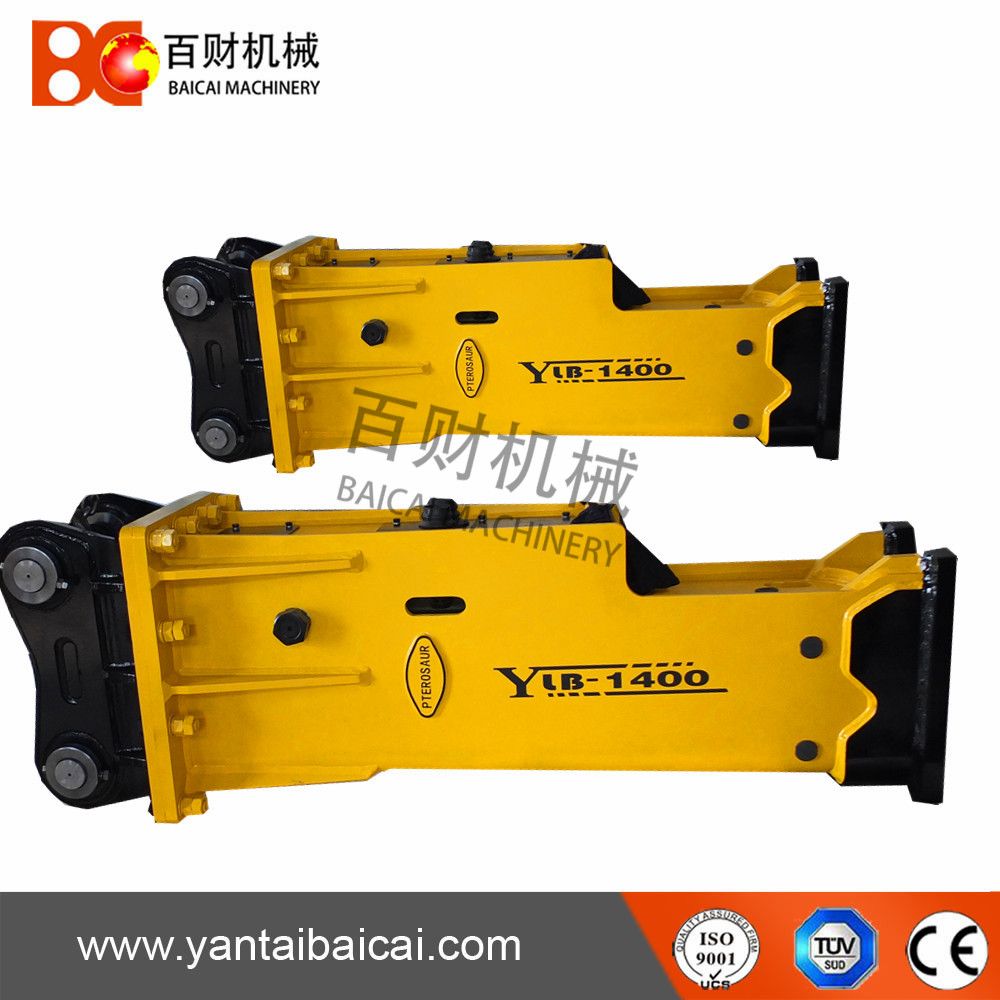

| SPECIFICATIONS FOR PTEROSAUR HYDRAULIC BREAKERS |
| Model | YLB-1000 | YLB-1350 | YLB-1400 | YLB-1550 | YLB-1750 |
| Weight(KG) | 787 | 1600 | 1650 | 2650 | 3753 |
| Length(MM) | 1940 | 2327 | 2510 | 2631 | 3152 |
| Pressure(psi) | 2176-2466 | 2229-2600 | 2321-2611 | 2321-2611 | 2321-2611 |
| Flow(l/min) | 80-120 | 136-150 | 130-170 | 170-220 | 200-300 |
| Rate(bmp) | 400-700 | 400-800 | 400-600 | 250-400 | 250-350 |
| Hose(inch) | 3/4 | 1 | 1 | 1¼ | 1¼ |
| Chisel(MM) | 100 | 135 | 140 | 155 | 175 |
| Suit(ton) | 11-16 | 18-26 | 19-26 | 28-35 | 30-45 |

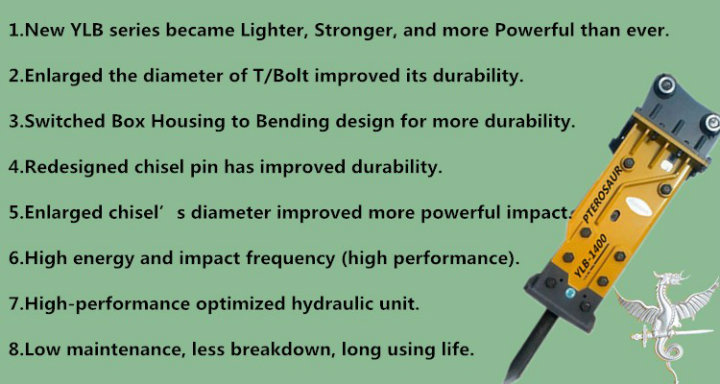

Pterosaur Hydraulic Breakers Features:
Package 1. Inner is stretch film, outside is export wooden case or as customer's request
2.The standard free spare parts: two pcs of Chisel, two pcs of oil hose, one pc of Nitrogen Cylinder, a set of repair tools with tool box, a Nitrogen pressure gauge.Delivery
1. Delivery time: Usually 3-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
FAQ:Q:Are you a manufacture?
A:Yes, We are a professional manufacturer for nearly 20 years. All parts are manufactured in our factory from start to finish. We also supply kinds of Cylinders to many companies in China.
Q:What is your advantage?
A:We have the R&D Department, we are specialized in heavy-duty hydraulic breakers and we already successfully developed first 210mm and 230mm breakers in 2016.
Q: How long is your delivery time?
A:Generally it takes 7-10 woking days. It also depends on your ordering quantity.
Q:Do you have any certification in your factory?
A:Yes, we passed ISO9001 Ceritification
Q: What is your warranty?
A: Two Years Limited warranty. There is the warranty policy and we will send you together with breakers.
Q: Can you manufacture the products according to customers' design?
A: Yes, OEM / ODM service available, technical drawing is needed.
Q: How is your after-sale service?
A: We have the professional after-sale service team and we can give you the best suggestion online at 24H*7days.
Q: I plan to sell hydraulic breakers, but I don't know how to do after-sale service and maintainence.
A: All customers who buy hydraulic breakers from us, we will give the overall and professional instruction and training.
Yantai Baicai Machinery Co., Ltd. Was established in 2004, We are a professional manufacturer for producing hydraulic breakers. Now our factory Mainly produces Soosan System hydraulic breakers, Furukawa system hydraulic breakers and spare parts in China. We supply kinds of Cylinder Assy' to home and abroad.
We sincerely hope that you can join us, we will be glad to support you on quality and technology.
