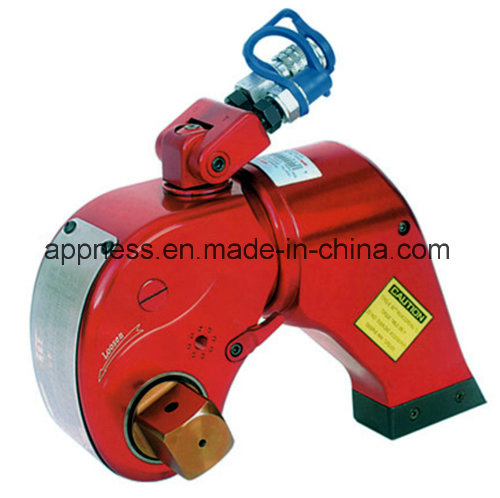

Due to its innovative design and the high quality materials used, this tool is extremely durable and easy to operate. A 360 degree, fully adjustable in-line reaction arm ensures the operator can select a reaction point to suit any application.
Operator Safety
To improve operator safety we have also designed an ergonomic, adjustable torque wrench handle which can be easily fitted to Hydraulic Torque Wrench. This lightweight, durable accessory can prevent injuries such as trapped fingers by eliminating the need to hold the tool itself.
Production Features
Using high-tech aerospace aluminum titanium alloy materials, adhering to the German industry exquisite design and manufacturing processIntegral molded body and 360 °± 180 ° tubing rotary joint,360 ° 60 point fine adjustment reaction arm, can be adapted to a variety of complex applicationsThe unique anti-reverse rotation back is designed to overcome the bolt deformation caused by the rebound of the wrench phenomenon Achieve two or four hydraulic wrench synchronous operation to ensure its set torque accuracy within ± 3%Exclusive patented filler hole design,achieve a longer working timeWorking pressure up to 700 bar to ensure that bolts, nuts can be fastened to the workpiece according to the set torque.
Production Specification
Model Item
GDH02
GDH05
GDH08
GDH10
GDH16
GDH20
GDH28
GDH36
GDH50
Max.Torque(Nm)
1882
4466
7451
10732
15339
20108
26392
35397
48740
Min.Torque(Nm)
188
447
745
1073
1536
2011
2639
3540
4874
Nut side size(mm)
16-36
22-48
27-55
30-64
36-72
42-90
42-90
48-100
64-120
Drive shaft
3/4''
1''
1-1/2''
1-1/2''
1-1/2''
2-1/2''
2-1/2''
2-1/2''
2-1/2''
L1(mm)
130
170
202
228
237
273
287
323
351
L2(mm)
182
249
286
326
336
391
433
464
494
H1(mm)
52
70
81
90
100
110
120
138
153
H2(mm)
77
98
125
134
144
164
187
206
217
H3(mm)
96
127
149
172
181
206
221
258
279
H4(mm)
133
165
184
207
216
241
256
293
315
R1(mm)
25.8
34.8
39.8
16.8
50.8
56.8
59.8
70.8
76.8
R2(mm)
102
140
160
184
192
223
248
256
271
Weight(Kg)
1.7
3.8
6.6
9
12.9
24.5
24.5
30.7
44.8

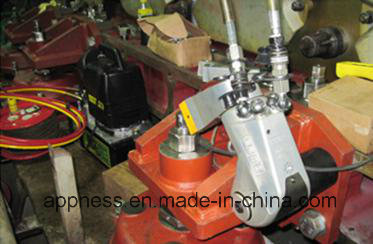

Product Application
Application Range
They are widely used in the fields of petroleum, chemical, natural gas, boilers, nuclear power, pharmaceutical, plant construction and pipeline engineering.
