Efficient Hydraulic Torque Wrench Gdh Series
| Price: |
US $ 3374-16192.35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Feature: |
Anti-Explosion, Ordinary, Anti-Magnetic |
| Folded: |
Folded |
| Accessories Available: |
Hydraulic Hose, Hydraulic Pump |
| Min. Torque: |
188-7066nm |
| Max. Torque: |
1882-70660nm |
Product Description

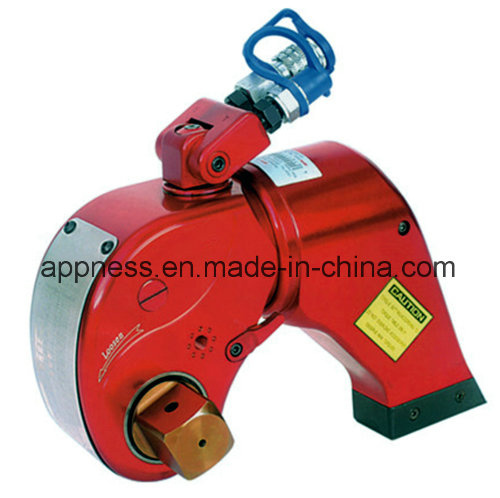

GDH Drive Hydraulic Torque WrenchOur Product
Production Description Innovative Design
Due to its innovative design and the high quality materials used, this tool is extremely durable and easy to operate.
A 360 degree, fully adjustable in-line reaction arm ensures the operator can select a reaction point to suit any application.
Operator Safety
To improve operator safety we have also designed an ergonomic, adjustable torque wrench handle which can be easily fitted to Hydraulic Torque Wrench. This lightweight, durable accessory can prevent injuries such as trapped fingers by eliminating the need to hold the tool itself.Production FeaturesUsing high-tech aerospace aluminum titanium alloy materials, adhering to the German industry exquisite design and manufacturing processIntegral molded body and 360 °± 180 ° tubing rotary joint,360 ° 60 point fine adjustment reaction arm, can be adapted to a variety of complex applicationsThe unique anti-reverse rotation back is designed to overcome the bolt deformation caused by the rebound of the wrench phenomenon Achieve two or four hydraulic wrench synchronous operation to ensure its set torque accuracy within ± 3%Exclusive patented filler hole design,achieve a longer working timeWorking pressure up to 700 bar to ensure that bolts, nuts can be fastened to the workpiece according to the set torque.Production Specification Model
Item | GDH02 | GDH05 | GDH08 | GDH10 | GDH16 | GDH20 | GDH28 | GDH36 | GDH50 |
| Max.Torque(Nm) | 1882 | 4466 | 7451 | 10732 | 15339 | 20108 | 26392 | 35397 | 48740 |
| Min.Torque(Nm) | 188 | 447 | 745 | 1073 | 1536 | 2011 | 2639 | 3540 | 4874 |
| Nut side size(mm) | 16-36 | 22-48 | 27-55 | 30-64 | 36-72 | 42-90 | 42-90 | 48-100 | 64-120 |
| Drive shaft | 3/4'' | 1'' | 1-1/2'' | 1-1/2'' | 1-1/2'' | 2-1/2'' | 2-1/2'' | 2-1/2'' | 2-1/2'' |
| L1(mm) | 130 | 170 | 202 | 228 | 237 | 273 | 287 | 323 | 351 |
| L2(mm) | 182 | 249 | 286 | 326 | 336 | 391 | 433 | 464 | 494 |
| H1(mm) | 52 | 70 | 81 | 90 | 100 | 110 | 120 | 138 | 153 |
| H2(mm) | 77 | 98 | 125 | 134 | 144 | 164 | 187 | 206 | 217 |
| H3(mm) | 96 | 127 | 149 | 172 | 181 | 206 | 221 | 258 | 279 |
| H4(mm) | 133 | 165 | 184 | 207 | 216 | 241 | 256 | 293 | 315 |
| R1(mm) | 25.8 | 34.8 | 39.8 | 16.8 | 50.8 | 56.8 | 59.8 | 70.8 | 76.8 |
| R2(mm) | 102 | 140 | 160 | 184 | 192 | 223 | 248 | 256 | 271 |
| Weight(Kg) | 1.7 | 3.8 | 6.6 | 9 | 12.9 | 24.5 | 24.5 | 30.7 | 44.8 |

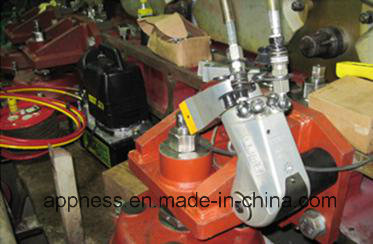

Product Application
Application RangeThey are widely used in the fields of petroleum, chemical, natural gas, boilers, nuclear power, pharmaceutical, plant construction and pipeline engineering.
