Product Description
EFM1/A/B-(H) ELECTRIC ACTUATOR QUARTER TURN
Features
LIGHT WEIGHT
Aluminum alloy base & cover. Light weight, small size with big output. Aluminum cover is optional.
WATER-PROOF
Rubber seal between cover and basement to ensure good water -proof function. Can be installed outdoor.
3D INDICATOR
Special and high strength plastic material achieves longer life. 3D indicator function create 360° visual angle.
MOTOR OVERHEATING PROTECTION
Inner overheat protective component can automatically shut power off to prevent motor from damage when the torque of the valve is bigger than that of the actuator's.
CARBON STEEL GEAR
Adopting carbon steel alloy resists to abrasion to ensure longer lifecycle.
MANUAL OPERATION
EFM1/A needs extra 8# wrench. EFM1/A/B-H is manual handwheel for operation.

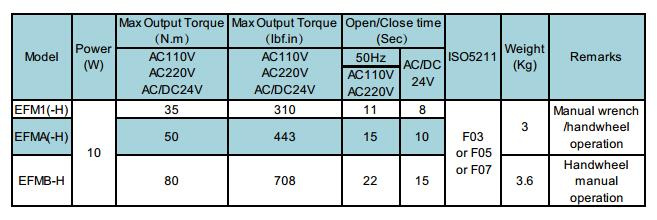

PARAMETERS
POWER
DC24V/AC24V/AC110~120V/AC220~240V, 50/60Hz
ENVIRONMENT TEMPERATURE -25C~70C
RELATED HUMIDITY ≤90% (25°C).
ENVIRONMENT
Without any high corrosion and explosion medium.
WORKING TIME
S2 standard, rated working time is 30 min. Please consult with the sales department if in need of 50% or 75% duty cycle.
INPUT/OUTPUT SIGNAL (MODULATING)
4~20mA, 0~10V & 2~10V input & output
HOUSING PROTECTION CLASS
IP67 (Std configuration); IP68 is optional.
REMARKS: IP68 means 15M under water level and 72 hour duration time.

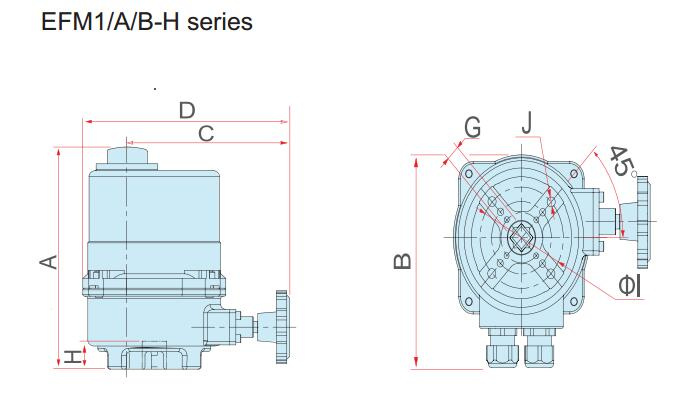

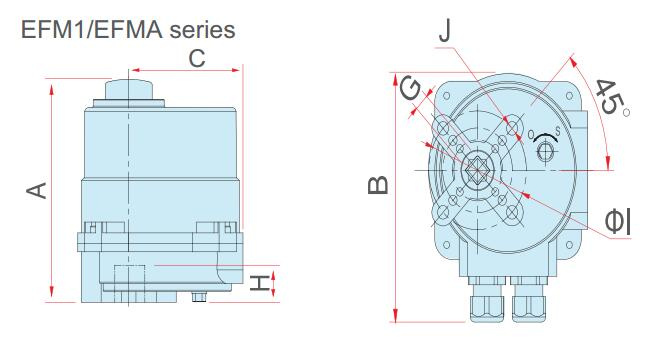

DRAWING

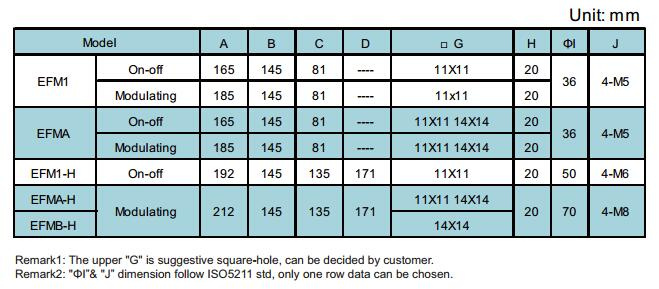

DIMESIONS
