| Prod Model: |
PN800-5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Steel: |
Enhanced |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
| Feature: |
Fire/Flame Retardant |
| Type: |
Steel Bobbin |

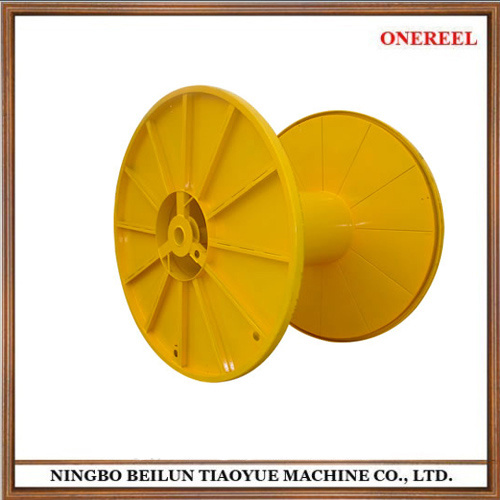

Product Description
It is manufactured according to the GB4004_83. JB/T7600.3_94, DIN46395, it is made with the punched and compacted iron plate, and shaped with welding. With the big hardness and the lingt weight, it can fit for using in bunching, stranding, cabling, extrusion and the armouring machine.
| d1 | d2 | d3 | d4 | d5 | e | I1 | I2 |
| 800 | 400 | 160 | 80 | 28-40 | 160 | 600 | 500 |
| 900 | 450 | 670 | 560 |
| 1000 | 500 | 750 | 630 |
| 1150 | 560 | 850 | 710 |
| 1250 | 630 | 950 | 800 |
| 1400 | 710 | 300 | 1060 | 900 |
| 1600 | 800 | 1180 | 1000 |
| 1800 | 1000 | 200 | 100 | 1320 | 1120 |
| 2000 | 1120 | 250 | 125 | 1500 | 1250 |
| 2240 | 1250 | 1700 | 1400 |
| 2500 | 1500 | 1900 | 1600 |
| 2800 | 1800 | 280 | 140 | 2120 | 1800 |
| 3150 | 1900 | 300 | 160 | 500 | 2300 | 2000 |
NINGBO BEILUN TIAOYUE MACHINE Co., Ltd. (ONEREEL) is one of the leading metal parts and plastic parts manufacturers and exporters in China, such as empty spool, wire spool, steel cord spool, warp knitting beam, pumps and cutter knife, OEM customer parts. ONEREEL located in Ningbo City, near Ningbo Seaport and Ningbo Airport.
We have passed the quality system certification ISO9001: 2000 to ensure the product quality. Following the standards of GB4004-83, JB/T8997, DIN46395 and DIN46397 in productions. We can design and tailor various non-standard items subject to the specific requirements of the customers. Focusing on top quality, superior innovation, reasonable price and strong competitiveness, our products have been appreciated and recognized by majority of customers. So far we have built long-term cooperation with more than 60 well-known enterprises from domestic and oversea market. The company hold on philosophy of "Create value, Quality first, Credit first". Effective and Strict internal management, precisely control quality and delivery time, pursuing integrity services, we always put customer satisfaction as the highest goal. ONEREEL sincerely hope tightening cooperation with domestic and oversea customers and create bright future hand in hand!
