| Prod Model: |
CBD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Full-Electric |
| Type: |
Electric Jack |
| Structure: |
Hydraulic Jack |
| Capacity (Load): |
1-10T |
| Power Source: |
Electric |
| Certification: |
CS |
Product Description

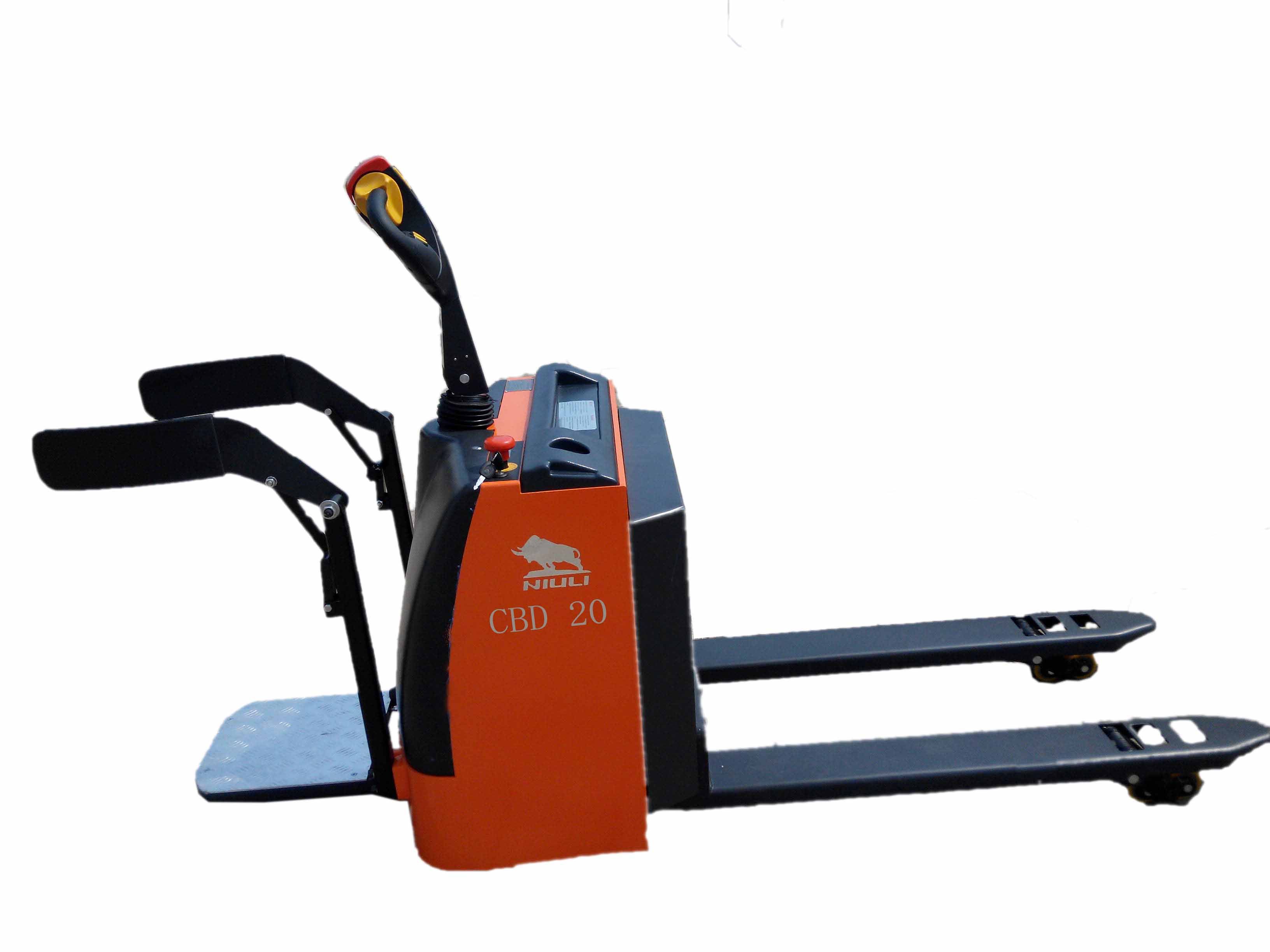

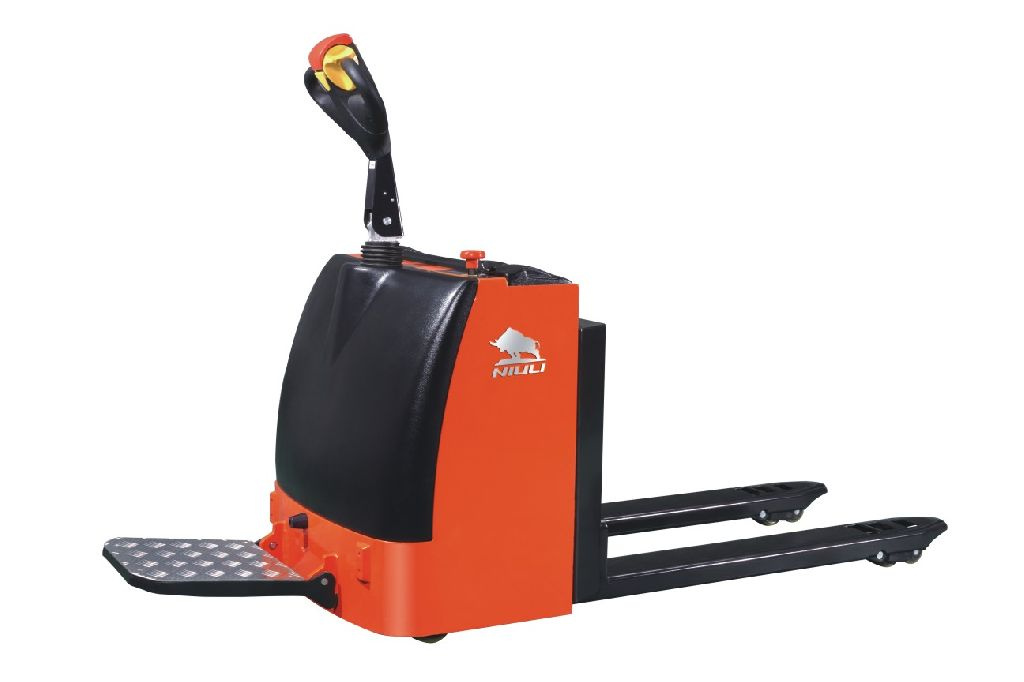

Electric Pallet Truck
1) Capacity: CBD 2, 000kg, CBD2, 500kg
2) Max. Lifting height: 2, 00mm
3) Min. Fork height: 85mm
4) Fork length: 1, 220mm
5) Overall width: 820mm
6) Charging voltage: AC 220V
7) Battery charger: 24V/A, 30V/A, 40V/A
We can made special size Electric pallet truck for you according your special demands.
|
Model |
CBD20 |
CBD25 |
|
Capacity(kg) |
2000 |
2500 |
|
Load Center(Q\mm) |
600 |
600 |
|
Front wheel size(mm) |
φ80x70 |
φ80x70 |
|
Rear wheel size(mm) |
φ130x55 |
φ130x55 |
|
Traction wheel(mm) |
φ250x80 |
φ250x80 |
|
Max.lifting height(mm) |
200 |
200 |
|
Fork clearance from ground(mm) |
85 |
85 |
|
Fork Dimensions(L\mm) |
1200x160x60 |
1200x160x60 |
|
Total length(L2\L3mm) |
1990\2320 |
1990\2320 |
|
Total width(B\mm) |
815 |
815 |
|
Fork overall width(B1\MM) |
550/680 |
550/680 |
|
Turning radius (open pedal)(R1\R2mm) |
1850\2150 |
1850\2150 |
|
Self Weight(kg) |
600 |
660 |
|
Battery volts/ampere |
2Vx12/210AH |
2Vx12/210AH |
|
Battery charger |
AC220V/50HZ/ DC24V/40A |
AC220V/50HZ / DC24V/40A |
NIULI MACHINERY MANUFACTURE Co., Ltd is a specialized hydraulic lifting-transportation machinery manufacturer in China. It has been developing through advanced technology of foreign countries and has profound experience and intense power. It can provide customers with high-effcient, secure and complete logistic load, unload and carrying equipment.
NIULI MACHINERY MANUFACTURE Co., Ltd main products are vehicle hydraulic trail board, hand pallet truck, hand stacker, electric stacker, walked hydraulic stacker, hydraulic lift table and other hydraulic carrying-lifting equipment. We can develop new products according to customers demands.
NIULI MACHINERY MANUFACTURE Co., Ltd is only one corporation including vehicle hydraulic trail board explation, batch produce & sales in China. The production have been passed the produce license by Nation Qulity Vertification Omni-Bureau. The 70% vehicle hydraulic trail board have been exported to HONGKONG and MACAO Taiwan and other region. "NIULI"brand vehicle hydraulic trail board has become the first choice for so many famous enterprises and government in Nations and abroad.
NIULI MACHINERY MANUFACTURE Co., Ltd is one of the biggest factory that produces hand pallet truck in China with a annual production of 50000PCS. The hand pallet truck has been passed the GS/CE certification by TUV in Germany.
NIULI MACHINERY MANUFACTURE Co., Ltd ' S products have been exported to more than 50 countries and region. The sales and post-sale service network cover the whole China with more than 300 regions, which enjoy great reputation.
