Prod Model: |
MJ-1000 |
Max. Wood Diameter: |
1000mm |
Max. Wood Thickness: |
300mm |
Max. Wood Length: |
4500mm |
Electric Motor: |
11kw |
Lifting Motor Power: |
1.1kw |
Power: |
380V,50Hz,Three Phases |
Blade Speed: |
20-25m/S |
Keywords: |
Portable Band Sawmill |
Mode: |
Horizontal Band Sawmills |
Advantage: |
Mobile Band Sawmill |
Type: |
Band Saw |
Layout: |
Horizontal |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Precision: |
Precision |
Certification: |
CE |
Product Description

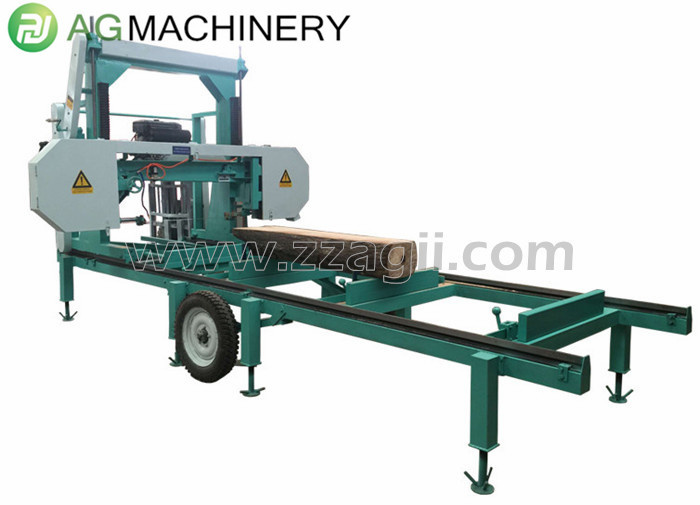

High Quality Electric or Diesel Portable timber wood sawing machine Introduction:The horizontal brand saw is designed to saw the large diameter hard woods and softwood; it has large saw wheel and high power.
Portable horizontal bandsaw sawmills is widely used for Africa rosewoods, birch, spruce, oak, teak woods cutting. Owe reputation position to the steady performance of sawing large diameter wood in Congo, Kenya, Angola and so on.
Technical Data:Model | MJ 700E | MJ 1000E | MJ 1300E | MJ 1600E |
Diameter of Sawing Wood | 700mm | 1000mm | 1300mm | 1600mm |
Thickness of Sawing Wood | 260mm | 300mm | 300mm | 300mm |
Length of Sawing Wood | 4500mm | 4500mm | 4500mm | 4500mm |
Diameter of Saw Wheel | 600mm | 700mm | 700mm | 700mm |
Power of Saw Wheel | 11KW | 15KW | 18.5KW | 22KW |
Power of Lifting | 1.1KW | 1.1KW | 1.1KW | 1.1KW |
Feature:
1. Hydraulic wood clamping system, easy to operate
2. Power: electric motor or diesel engine
3. Applicable wood: hardwood,softwood, such as teak, oak,kwila,African rosewood, mahogany etc.
4. Mobile wheels and adjustable legs can also be installed.
5. Installation: easy installing, operation guide will be provided.
5. Labor saving, high production
6. Options: computer touch screen set sawing thickness, adjustable moving
How to choose a suitable sawmill?According to the diameter and length of wood logs you use.Is this the only type of sawmill you have?
We have three types of sawmill machine
-Large size Horizontal band saw for raw logs
-Portable horizontal band sawmill (diesel or electric engine)
-Double saw blade angle sawmill
What to do without electricity and out-door use?
We can make mobile band sawmill with diesel engine for you.
How long of delivery time?
The delivery time is within 10-15 days generally, it depends on order quantity and our stock situation
Is the Band Sawmill can be customized?
Yes, our company can customize sawmill according to customers' need.
