Electric Furnace Lining Building Rammer, Pneumatic Type
| Price: |
US $ 3000-10000/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
KLQ-D-S |
| Type: |
Furnace Rammer |
| Usage: |
Furnace Lining Form |
| Working Style: |
Vibrating |
| Brand: |
Kx |
Product Description

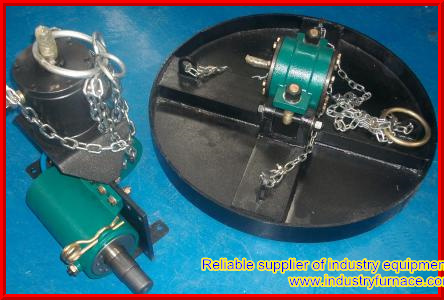

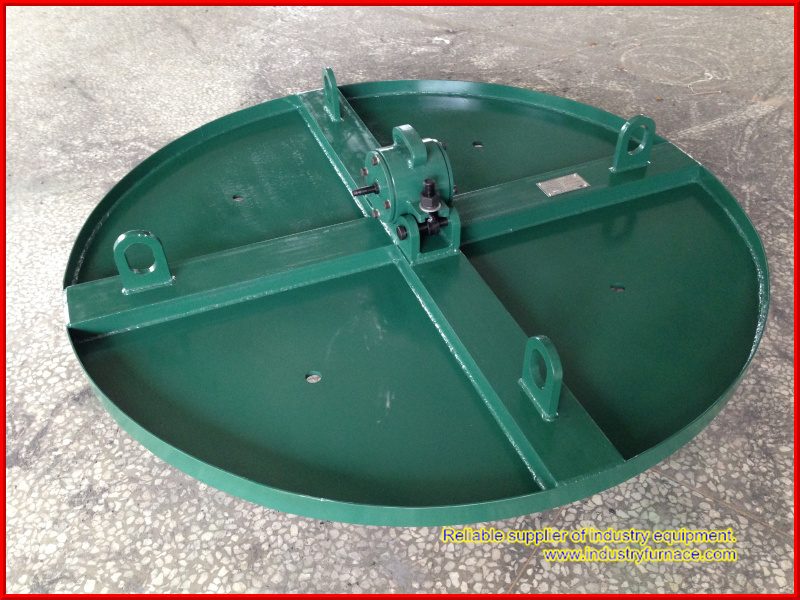

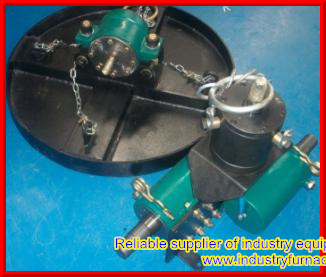

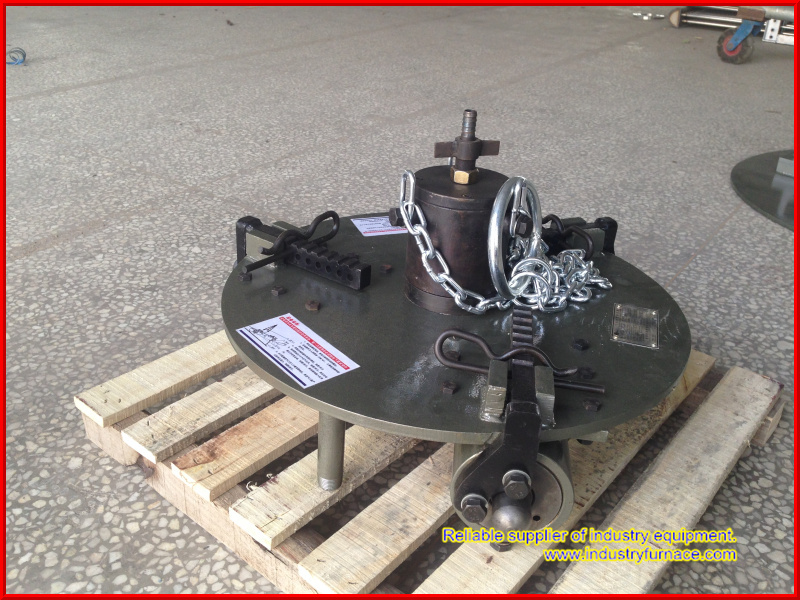

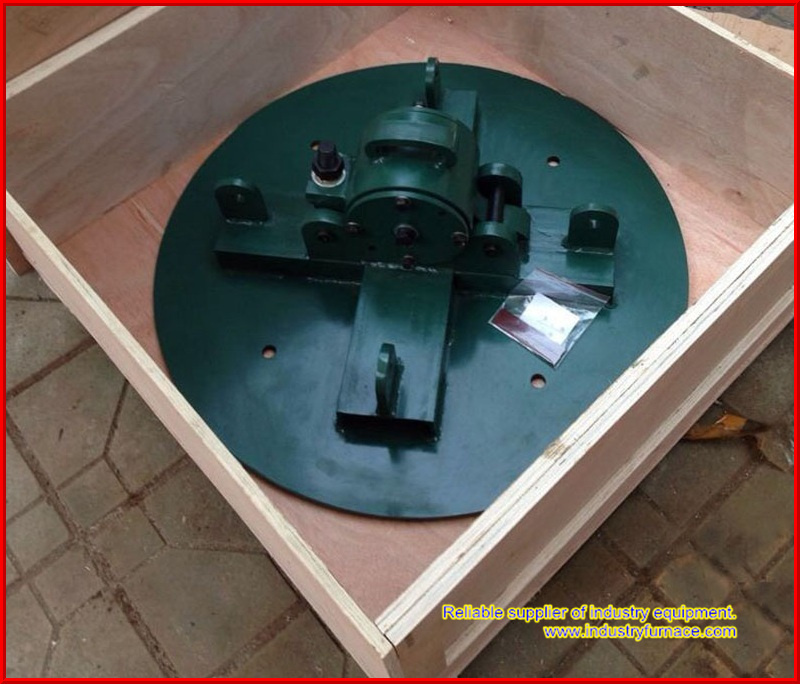

Furnace Lining Former-Pneumatic Rammer

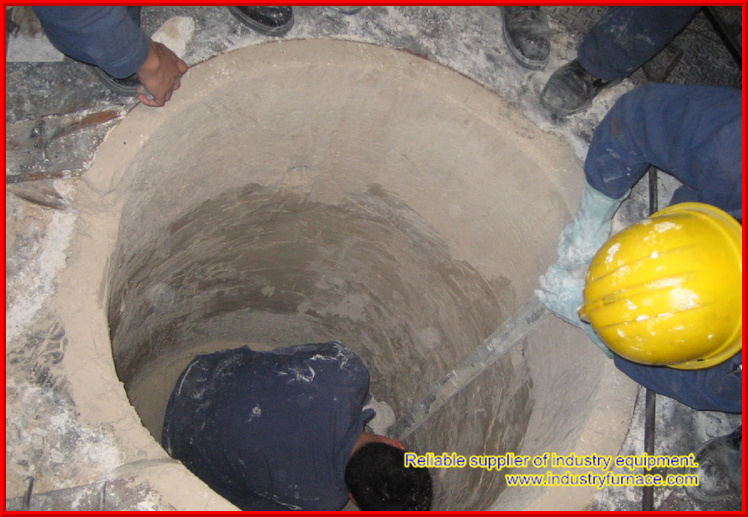

Pneumatic Furnace Lining Former is composed of a gas distributor, cylinder liners, air hammer, length adjustment lever and chain composition,Dry Former type IF furnace lining material mainly used for knotting, furnace building is the use of pneumatic air hammer percussion frequency furnace crucible inner wall of principle, the lining material particle size filling another gap in order to achieve the effect of lining materials closely. The furnace building machine is designed with automatic rotation device, it can be automatically rotated during use, and can freely adjust the input volume to adjust the vibration force size, to ensure the tie uniform effect.The furnace building machine easy to operate, you need one person driving lift, to determine a good location to open an account after knotting the gas source, knotting process can be appropriately adjusted amount of pressure, in order to ensure uniform tie, and ready to operate even move up and down the road .| KLQ-D-S Furnace Lining Former |
| Model | KLQ-D-S |
| Rammer Number: | 2 |
| Steel Plate Mold: | Changeable |
| Vibration Power: | 1000N |
| Vibration Frequency: | 56Hz |
| Pneumatic Gas Consumption per rammer: | 13L/S |
| Air Pressure Requested: | 0.6Mpa |
| Usage: | 2Ton Furnace Lining Forming |
