Product Description

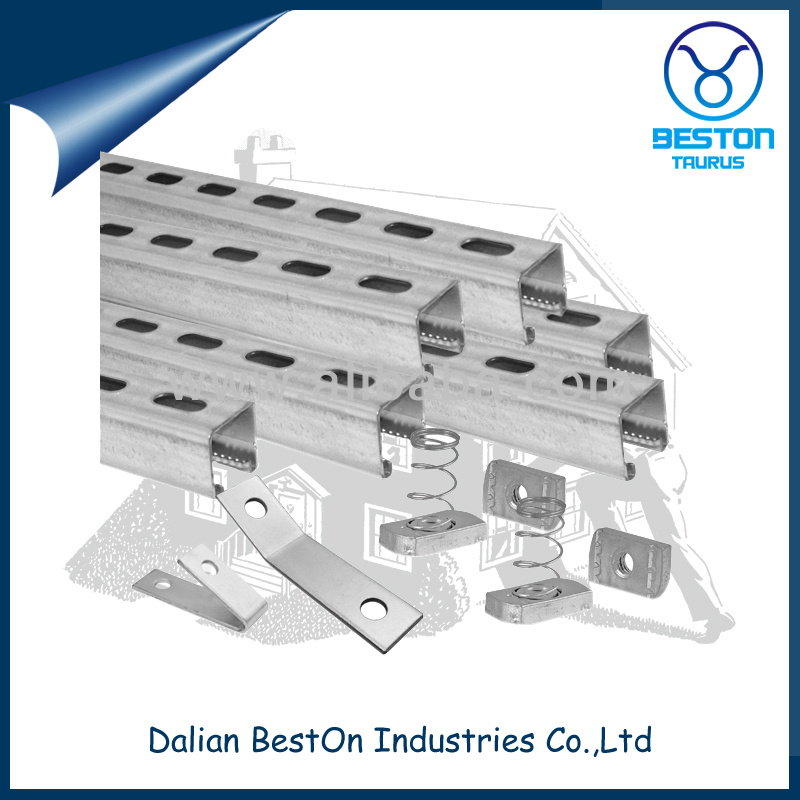

electric galvanized strut C channel
High quality & reasonable Price, no need welding and punching, can use repeatedly, wide usage range, flexible for installation.
? Standard thickness: 1.0mm, 1.5mm, 2mm, 2.5mm,2.75mm, 3mm
? Standard length: 2440mm, 3000mm, 5800mm, 6000mm
? Standard size: 41*21, 41*25, 41*41,41*62,41*72,41*82
No. | Size(mm) | Size(inch) | Thickness(mm) | Thcikness(Gage) | Type | Surface Finish |
| 1 | 21x10 | 13/16x13/32" | 1.0, 1.5,2.0,2.5,2.75,3.0 | 19,16,14,12 | Slotted, Solid | HDG,PG,SS,Al,PC |
| 2 | 21x21 | 13/16x13/16" | 1.0, 1.5,2.0,2.5,2.75,3.0 | 19,16,14,12 | Slotted, Solid | HDG,PG,SS,Al,PC |
| 3 | 41x21 | 1-5/8x13/16" | 1.0, 1.5,2.0,2.5,2.75,3.0 | 19,16,14,12 | Slotted, Solid | HDG,PG,SS,Al,PC |
| 4 | 41x22 | 1-5/8x7/8" | 1.0, 1.5,2.0,2.5,2.75,3.0 | 19,16,14,12 | Slotted, Solid | HDG,PG,SS,Al,PC |
| 5 | 41x25 | 1-5/8x1" | 1.0, 1.5,2.0,2.5,2.75,3.0 | 19,16,14,12 | Slotted, Solid | HDG,PG,SS,Al,PC |
| 6 | 41x41 | 1-5/8x1-5/8" | 1.0, 1.5,2.0,2.5,2.75,3.0 | 19,16,14,12 | Slotted, Solid | HDG,PG,SS,Al,PC |
| 7 | 41x62 | 1-5/8x2-7/16" | 1.0, 1.5,2.0,2.5,2.75,3.0 | 19,16,14,12 | Slotted, Solid | HDG,PG,SS,Al,PC |
| 8 | 41x83 | 1-5/8x3-1/4" | 1.0, 1.5,2.0,2.5,2.75,3.0 | 19,16,14,12 | Slotted, Solid | HDG,PG,SS,Al,PC |
| '''''' | ''''''''' | ''''''''' | ''''''' | ''''' | '''''''' |
Strut Channel System Advantages:
? High strength to ocst ratio
? Completely adjustable
? No welding or drilling required
? Strut is re-usable
? One-inventory adaptable to many jobs
? Saw and wrench are the only tools needed
Strut Channel Surface Finish:
? Powder coated- BS-6497-1984, between 60 and 85 microns thick
? Hot Dipped Galvanized-for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
? Acid Washing or Electrolytic Polishing- for stainless cable basket tray use
