| Price: | US $ 1/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal |
| Prod Model: | FY023 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item No.: | Fy023 |
| Load Capacity: | 3000n |
| Speed: | 20mm/S |
| Stroke: | 50-750mm |
| Type Of Duty: | S2-10min |
| Limit Switches: | Inner |
| Operation Temperature: | -15-45degree |
| Protection Class: | IP67 |
| Ball Screw: | Available |

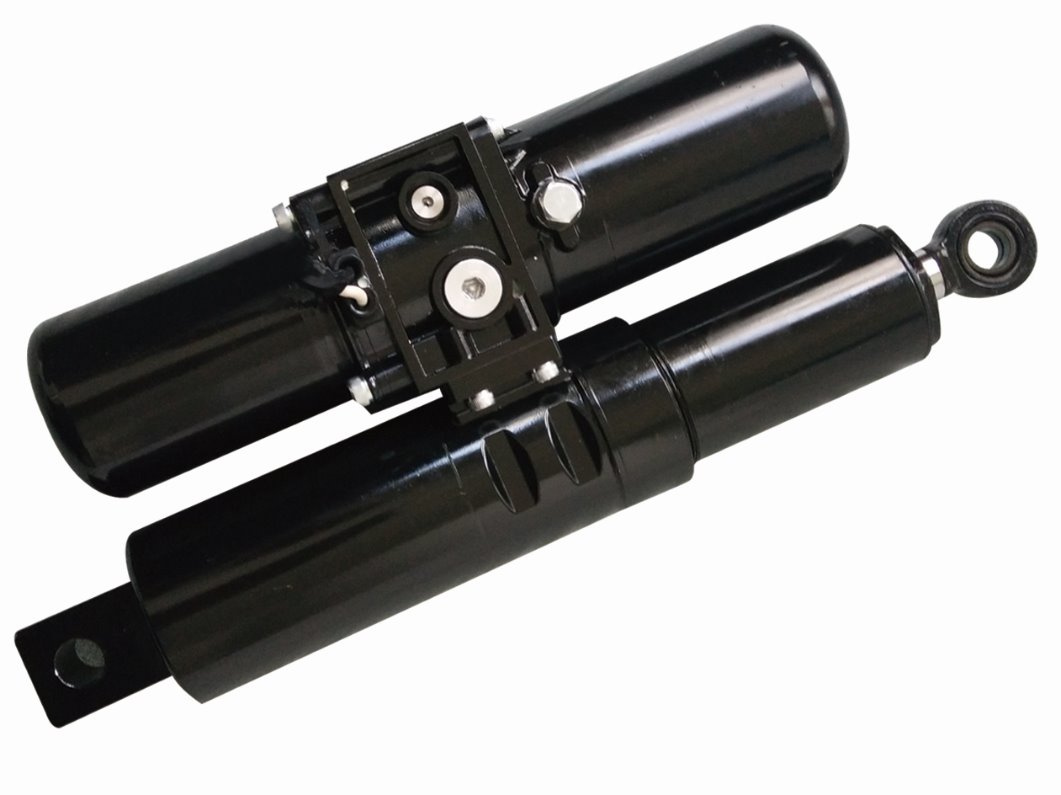

Linear Actuator FY023 for industrial or contruction using
FY023 Linear Actuator is a multipurpose product . By advantage of its bigger size and powerful comprehnsive funtion , it is popular in industrial ,equipmet, and so on .
Products Specifications :
1) 12VDC or 24VDC permanent magnet motor
2) Thrust up to 3000N in push , and up to 3000 N in pull
3) Elegant and compact design with bigger instanllation dimensions
4) Built-in limit switches ( not adjustable after leaving factory )
5) Aluminium or zinc outer tube / steel inner tube
6) Steel back fixture
7) Standard protection class
8) Noise level < 50 db
9) Warranty : Two years
10) Duty cycle : 10%, or 2 munutes continous working followed by 18 minutes not in use

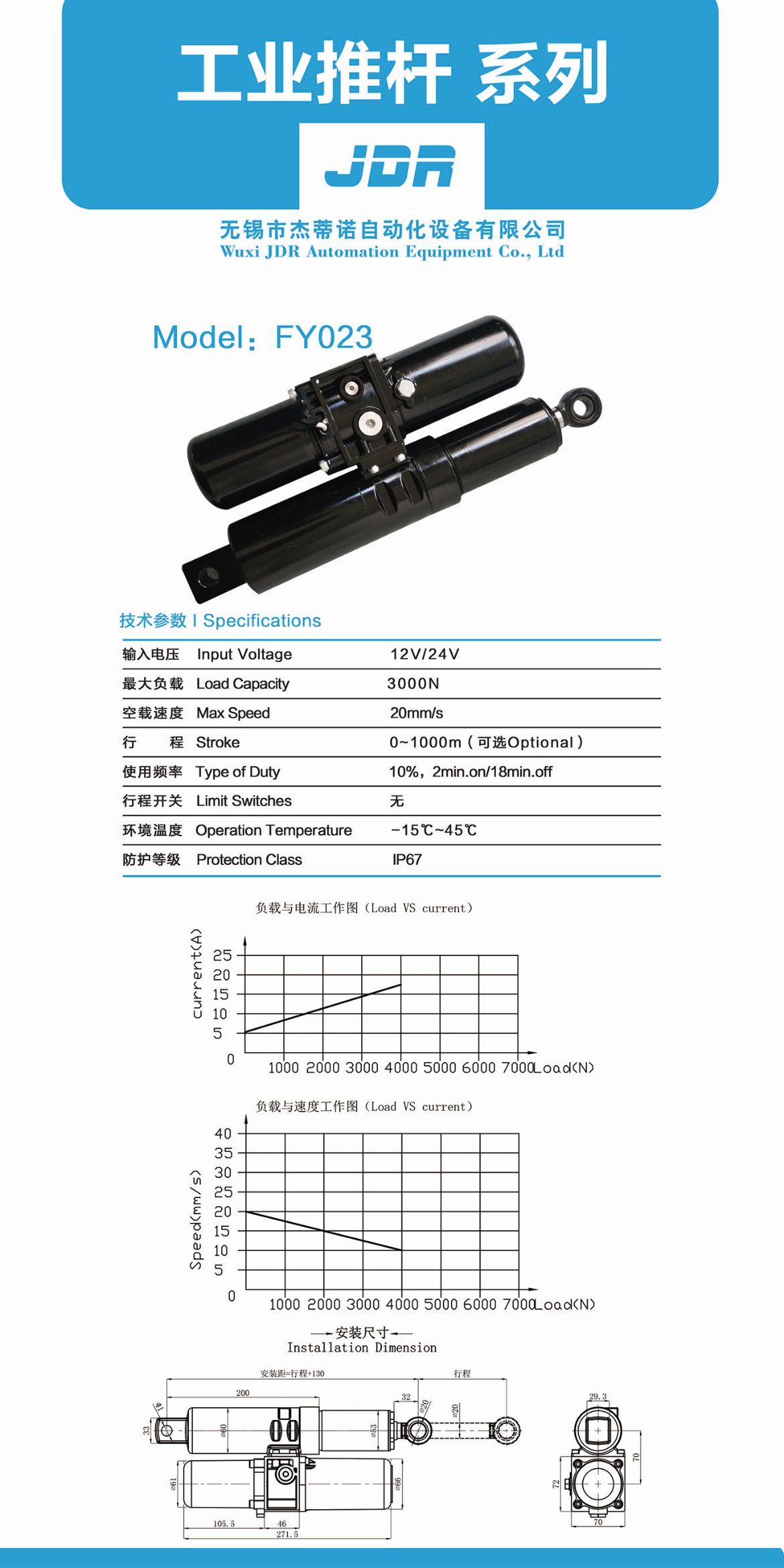

Technical specifications of FY023 Industrial Linear Actuator:
Model No.: FY023
Stroke: 50-1000mm
Installation dimension: stroke+130mm
Load capacity: 3000N
Free load speed:20mm/s
Input voltage: 24V DC / 12V DC
Limit switch: inner
Protection grade: IP67
Type of duty: S2-10min
Operation temperature: -15~45 centigrade
Features:
Material: Aluminum and metal
Color: black
Warranty: two years
Certification: CE/EMC+LVD
High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.
Item: Electric Linear Actuator, Electric Linear Motor
Series: FY series
Item Number:FY011, FY012, FY013 FY04, FY015, FY016, FY017
Delivery time: 3~7 days for samples
High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of OurElectric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage:24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke areavailable according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class:IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
| Voltage | Load capacity | Speed | Stroke | Type of duty | Limit switches | Operation temperature | Protection class |
| 12v/24vdc | 9000N | 5-30mm/s | 50-750mm | S2-10min | Inner | -26-65degree | IP65 |
