| Prod Model: |
YTJ-350 |
| Output: |
100ton |
| Pressure: |
700 Bar |
| Weight: |
200kg |
| Coupling: |
Euipped |
| OEM: |
Yes |
| Stock: |
Yes |
| Market: |
Global |
| Used With: |
Hydraulic Pump |
| Material: |
Steel |

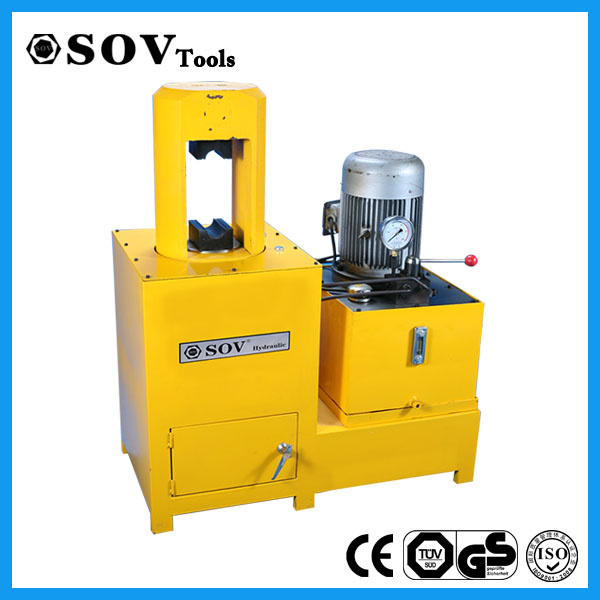

Product Description
Features:
1. The machine utilizes mechanical-electrical integration system design. You can suppress specifications of wire rope by switch mold. And it is easy to operate.
2. Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.
3. Electric control parts of the low-voltage control, an increase of operating system security.
4. Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reducs the labor intensity and improve the work efficiency.
Technical Parameters
| No. | Model Number | Max Press Capacity ( Ton ) | Wire Diameter (mm) | Volt (V) | Frequency (Hz) | Piston press speed | Piston return speed | Machine
Weight (KG) | Size L*W*H (mm) |
| 1 | LTYTJ350 | 350 | 6-32 | 380 | 50 | 4.8mm/sec | 25.1mm/sec | 2200 | 1550*600*1620 |
| 2 | LTYTJ500 | 500 | 6-36 | 380 | 50 | 3.6mm/sec | 22mm/sec | 3200 | 1680*620*1720 |
| 3 | LTYTJ800 | 800 | 6-48 | 380 | 50 | 3.6mm/sec | 22mm/sec | 4800 | 1820*850*1970 |
| 4 | LTYTJ1000 | 1000 | 6-52 | 380 | 50 | 3.0mm/sec | 20mm/sec | 7600 | 2080*1130*2180 |
| 5 | LTYTJ1200 | 1200 | 6-56 | 380 | 50 | 2.8mm/sec | 18mm/sec | 8000 | 2180*1140*2350 |
| 6 | LTYTJ2000 | 2000 | 6-120 | 380 | 50 | 0.4mm/sec | 3.2mm/sec | 16000 | 2480*1150*2710 |
| 7 | LTYTJ3000 | 3000 | 6-150 | 380 | 50 | 0.3mm/sec | 2.0mm/sec | 24000 | 2780*1560*3270 |
Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.
Shipping
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.
Product Application
Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.
Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.
