| Prod Model: |
ME1228LR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Surface Mount |
| Holding Force: |
600lbs(280kg) |
| Indicator: |
with LED Indicator |
| Monitoring: |
Without Lock Status Sensor |
| Delay Time: |
with Delay Time Setting |
| Application: |
Single Outswinging Outdoor |
| Material: |
Aluminum Alloy |
| Shape: |
Mortise Door Lock |
| Part: |
Lock |
| Usage: |
Channel Lock |
| Type: |
Electro Magnetic Lock |
Product Description

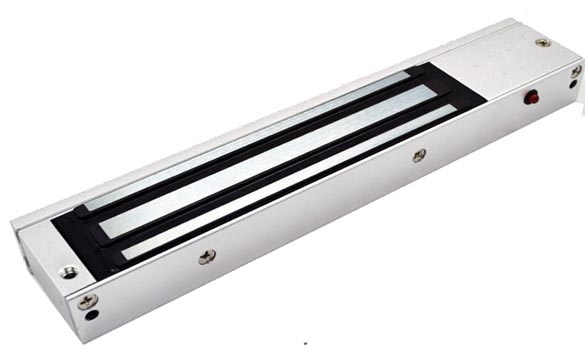

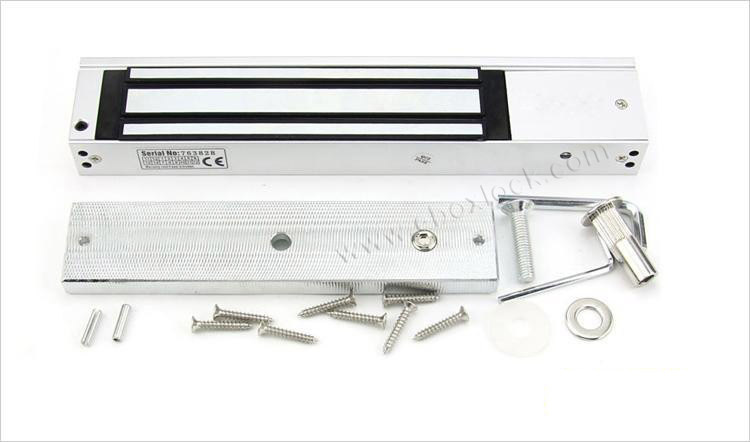

Electromagnetic lock ME1228LR is a durable electromagnetic lock ideal for single door. It is with LED indicator for operation status and setting of delay time. Surface mounting either vertically or horizontally offers easy and flexible installation. Hardware accessories include brackets, housings, and dress covers as needed for every opening type. The Electromagnetic lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. It is with high durability and low maintenance.
FeaturesSuperior alloy-constructed lock body and strikes
Architectural brushed stainless steel finish provides corrosion resistance
LED Indicator for operation status
Setting of delay time
Surface mounting and easy installation using only a drill and allen wrench
Fully sealed electronics for tamper proof and weather proof
Instant release circuit, no residual magnetism
Low noise operation
Accepts access control signals from numeric keypads and card readers
Can be fitted to wooden door, glass door, metal door, fire door and security door.
SpecificationOperation Voltage 12VDC ±10%
Power Consumption 500mA@12VDC
Operation Mode Fail unlock
Holding Force 280KG(600lbs)
Cycle Rating More than 1,000,000
Working Temperature -10ºC ~ +55ºC
Lock Dimensions LxWxH 250mm*47mm*26mm
Strike Dimensions LxWxH 182mm*47mm*11mm
Gross Weight 1.67kg
