Electric Power Copper Cable Stripper
Price: |
US $ 600-2500/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
TF-1 |
Product Name: |
Cable Stripper |
Function: |
Cable Peeling |
Application: |
All Kinds Cables |
Operating: |
Automatic |
Processed Cable Diameter: |
1-160mm |
Voltage: |
Customized |
Color: |
as Required |
Product Description

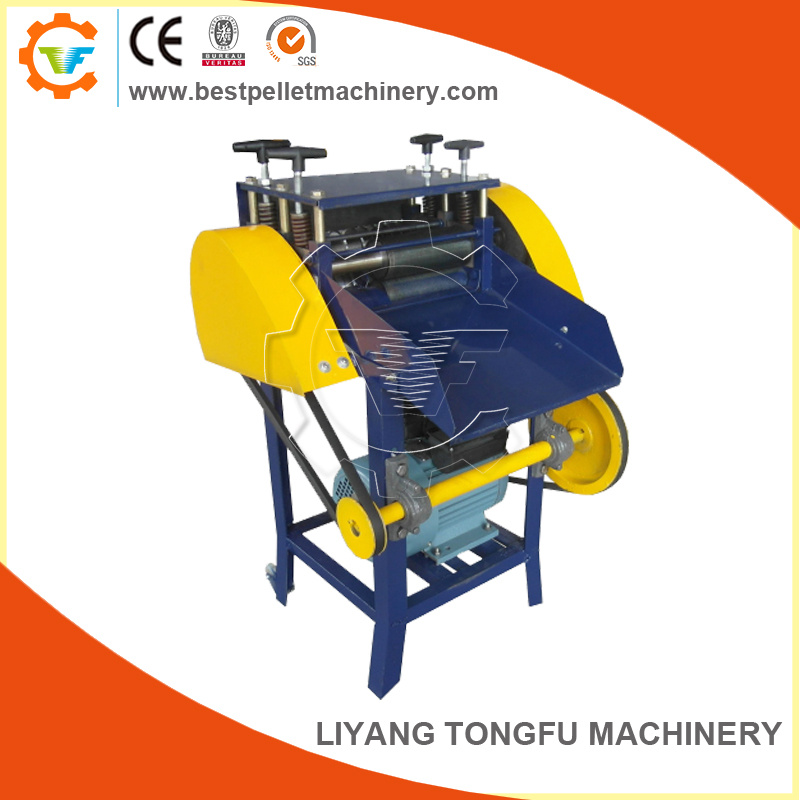

electric power copper cable stripper
Cable Stripper Factory Introduction: As a professional metal recycling machines manufacturer, we have been working hard to provide advanced equipment and professional solutions for your metal recycling business. Always endeavored in developing advanced metal recycling technology, we can customize special solutions to help you recycle more efficiently and more cost effectively.

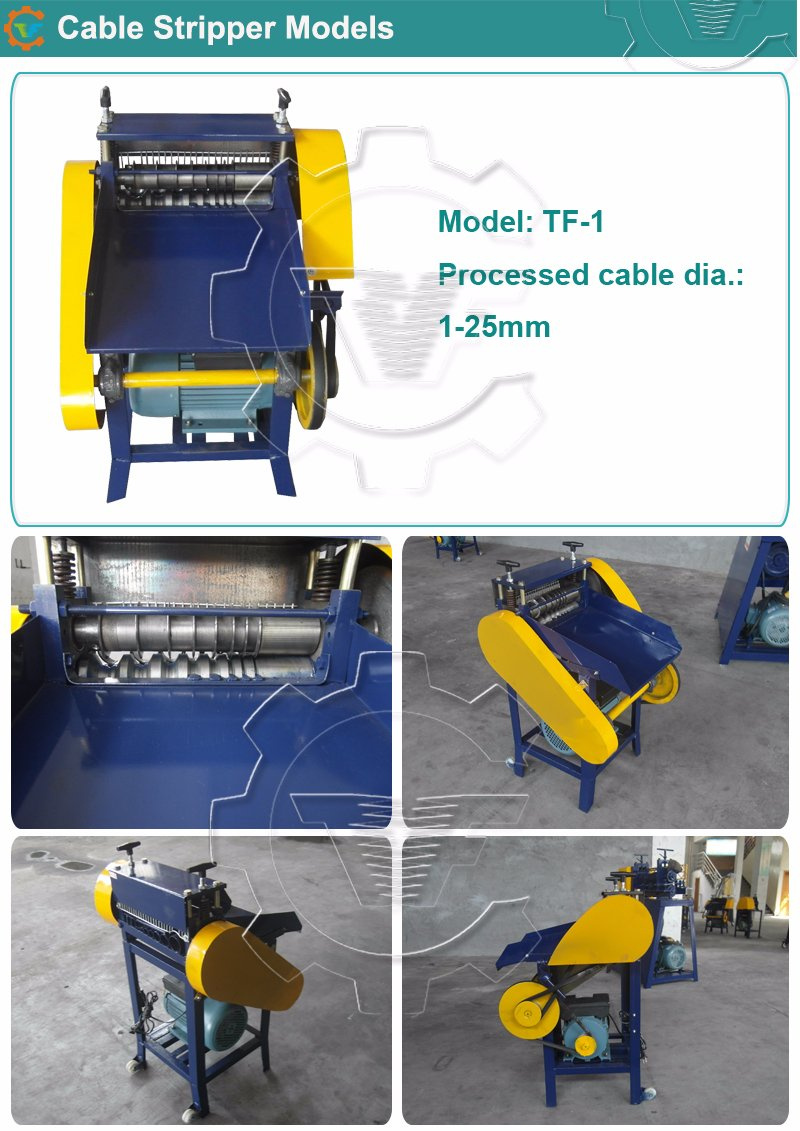

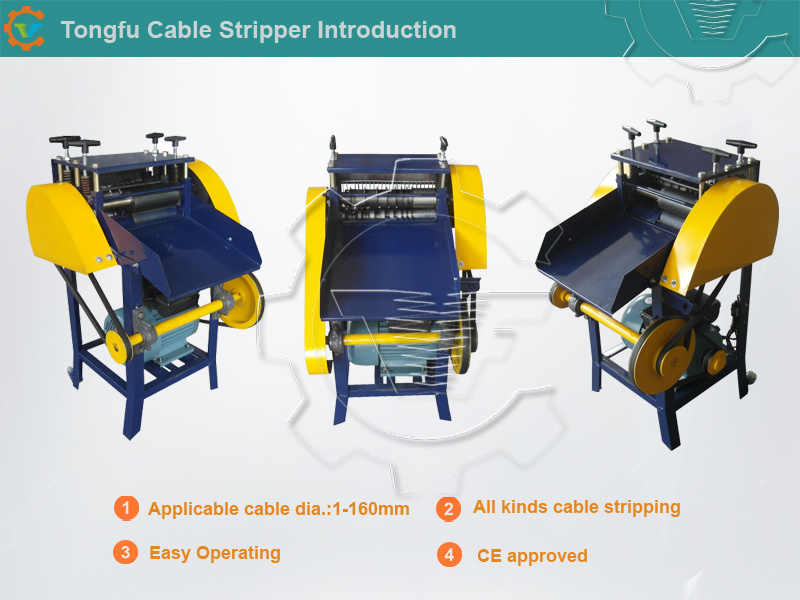

No matter you are engaged in processing copper cables, scrap radiator, scrap motor, aluminum cans, as well as other types of metal, you can find proper solutions here. We manufacture various types of copper cable granulator, wire stripping machine, radiator recycling machine, motor recycling machine, metal crusher and metal baler to meet different requirements for scrap metal recycling. Besides, plastic recycling machine is also in our business range.Cable Stripper Application: It applies to various types of electric wires and cables, including copper wires, aluminum wires, steel wires, etc. Various rubber cables are easy to be stripped. Moreover, the cable stripper can strip single-core or twin-core flat wires at one time.Cable Stripper Introduction:TF series wire stripper can be used for removing PVC/plastic/PE skin and pick up copper or aluminum cores inside the wire. It has high stripping efficiency and get high purity copper or aluminum. Normally there are several holes with different size which applicable for different diameter wires and cables, users can choose suitable model according size of raw material.Cable Stripper Description: TF-1 Specifications: Model | Wire dia(mm) | Voltage(V) | Power(kw) | Dimensions(mm) | Weight(kg) | Capacity(kg/day) |
TF-1 | 1-25 | 220/380 | 1.5 | 550*510*840 | 60 | 100-300 |

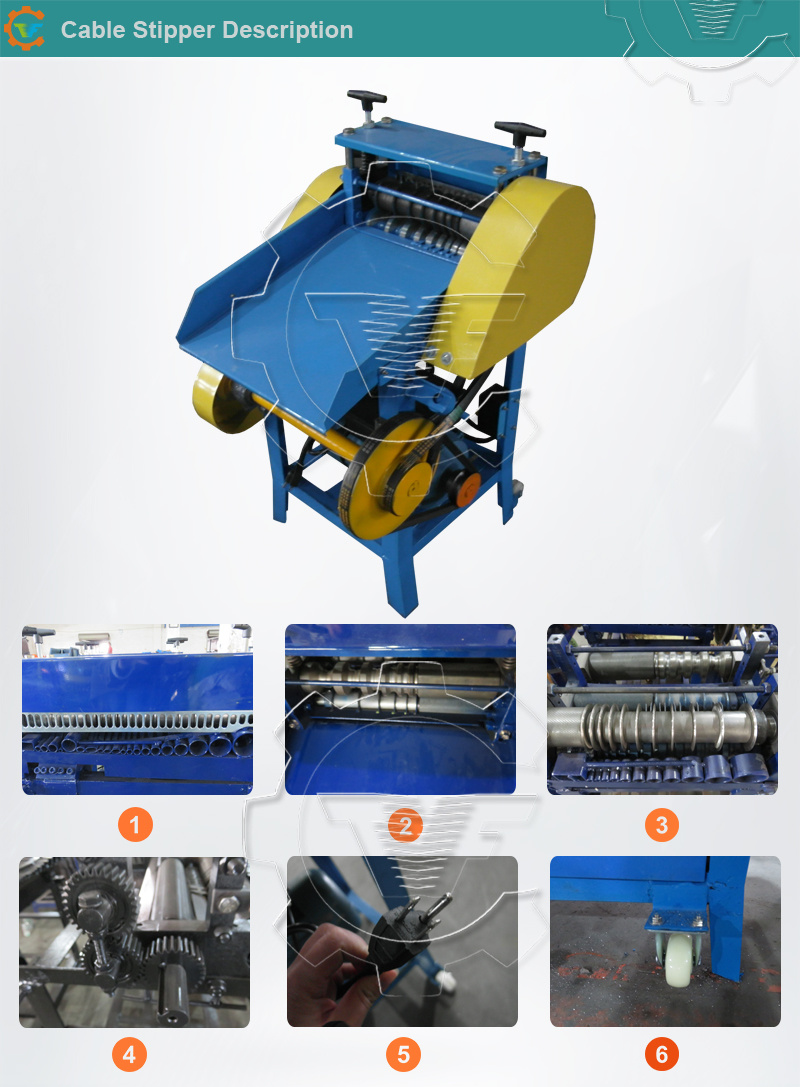

Cable Stripper Description: Cable input: Scrap cables are put into the hole for peeling. There are different size of the holes, and customers could choose the applicable one according to cable diameter.
Peeled cable output: Cables after peeling get out of this plate: clean core and clean pvc cable skin.
Cutting blades: Cable skin is cut by blades and separated with inside core.
Gear: Gears help the roller with blades rotate to finish cable peeling.
Plug: We could put different standard plug according to customers' demand.

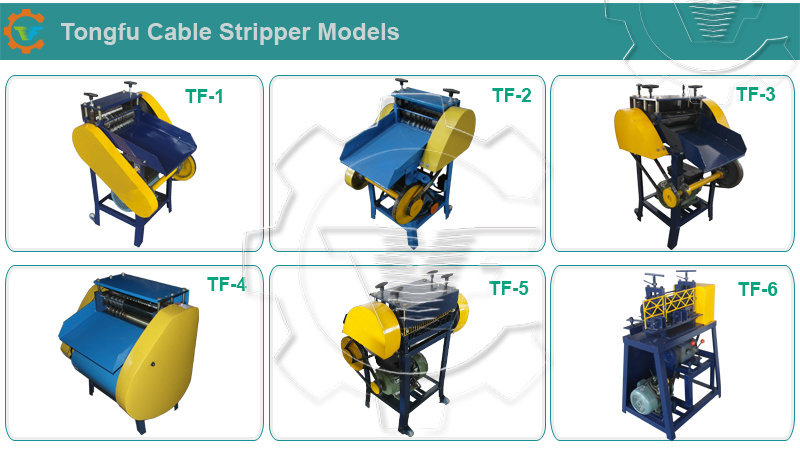

Wheel: There are wheels on the stripper.It is easy to move the machine freely.other models Cable Stripper: Model | Wire dia(mm) | Voltage(V) | Power(kw) | Dimensions(mm) | Weight(kg) | Capacity(kg/day) |
TF-2 | 1-30 | 220/380 | 2.2 | 560*550*840 | 70 | 300-600 |
TF-3 | 1-35 | 220/380 | 2.2 | 600*580*840 | 80 | 400-1000 |
TF-4 | 1-42 | 220/380 | 2.2 | 700*610*840 | 110 | 600-1500 |
TF--5 | 1-55 | 220/380 | 2.2 | 700*610*840 | 110 | 600-1700 |
TF-6 | 1-160 | 220/380 | 3/4 | 800*580*1200 | 200 | 800-2000 |

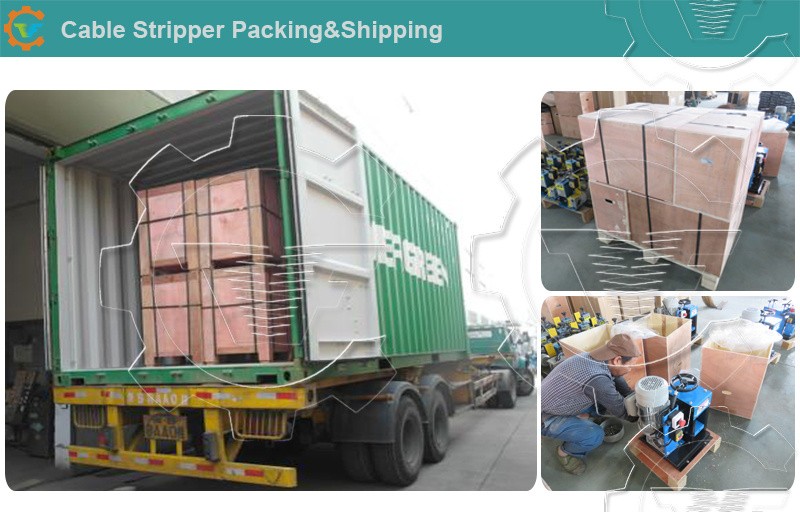

Cable Stripper Packing&Shipping: Basically we pack the strippers with plastic bag or plastic film firstly, and then put them into ply wooden case with suitable size. If you need whole container strippers, we will also pack them with wooden case firstly and put them into container then. Contact: Tina
Mobile:+8615981925357
Liyang Tongfu machinery Co., Ltd(shorted as TF), the branch of JLNE company, with own factory located in Liyang city, Jiangsu province of China, which was known as Birth-place of ring die pellet machine.
TF is the leader of biomass pellet machine & feed pellet machine in China, has passed the national quality management system Certification, the European CE certification, SGS certification. With more than 15 years experience, numerous pellet lines are installed in over 27 regions and countries such as Europe, North America, South America and Southeast Asia, etc. And control around 50% of Chinese market in pellet line industry.

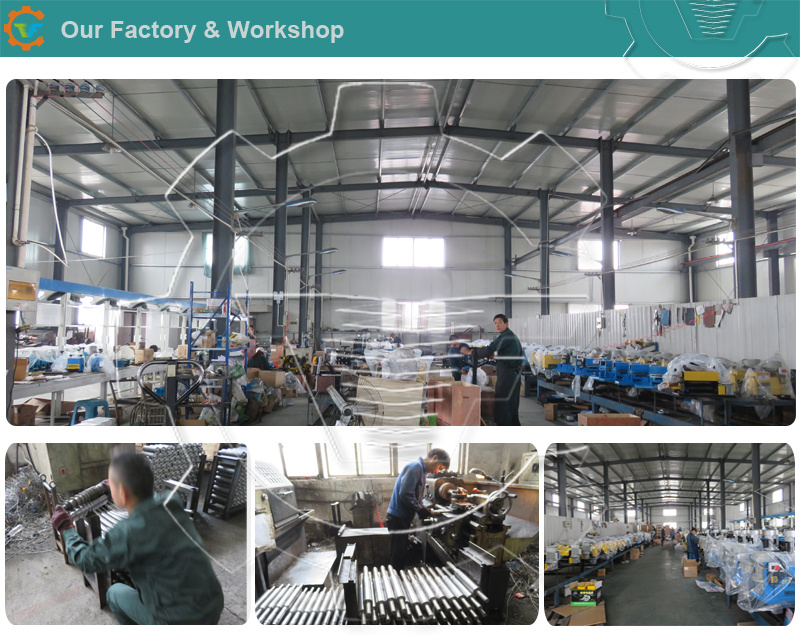

TF main products are pellet machine, feed and wood pellet line. We have advanced CNC laser cutting machine, CNC lathes, large-scale shear bending equipment, CNC punch, drilling, Boring machine, machining center and cutting plate, bending, welding and other processing equipment, to carry out all kinds of precision machinery manufacturing.
With strong technology support, advanced processing equipment, exquisite processing craft and strict testing and examining standards, TF is constantly dedicated to improving technologies and serving our clients with the best customized projects.
Clients' satisfaction is our utmost objective. TF hopes to be your satisfied business partner in the future!
