| Prod Model: |
EZ-85 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Force: |
60kn |
| Stroke: |
86mm |
| Cutting Cycle: |
70times |
| Cutting Range: |
Dia 85mm |
| Cable: |
Cu/Al Cable, Armoured Cu/Al Cable |
| Package: |
Plastic Box |
Product Description

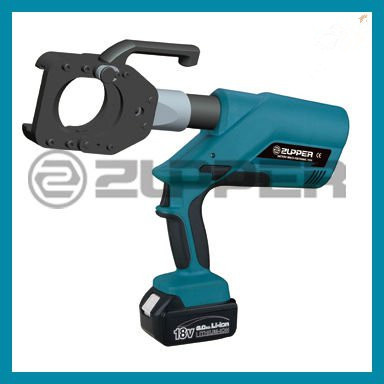

Electric Cu/Al cable cutter with EC certification (EZ-85)
Feature:
1. The hydraulic nuit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.
2. A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston&die when the trigger is released.
3. The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies forwards the connector and a slow crimping motion.
4. The crimping head can be smoothly turned by 350° Around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
5. Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a power weight ratio with 50% more
Capacity and shorter charging cycles compare to NiMH batteries.
6 A temperature sensor makes the tools stop working automatically when the temperature over 60º C under long time working, the fault signal sounds, it means the tool can't continue work until the temperature reduced to the normal.
Technical data:
| cutting force | 60KN |
| stroke | 86mm |
| cutting cycle | 70times |
| cutting range | dia 85mm(Cu/Al cable and armoured cable) |
| voltage | 18v |
| charging time | 3.0Ah |
| package | plastic |
| accessories |
| blade | 1pc |
| battery | 2pcs |
| charger | 1pc |
| sealing ring of cylinder | 1set |
| sealing ring of safety valve | 1set |
