| Prod Model: |
JM3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
3ton |
| Rope Capacity: |
180m |
| Voltage: |
3phase, 380V, 50Hz |
| Type: |
Construction Winch |
| Driven Type: |
AC |
| Carrying Capacity: |
Light Level |
| Tonnage: |
3T |
| Running Mode: |
Stationary |
| Feature: |
Insulating |
| Standard: |
National Standards |
Product Description
Electric Winch (Windlass, Construction Winch) is a kind general-purposed lifting equipment, with safety, convenient in operation, reliable, durable, low in noise and so on character, to be used widely in construction site, plant, mine, port and metallurgy, it's a necessary equipment for lifting, horizon or slop carrying.

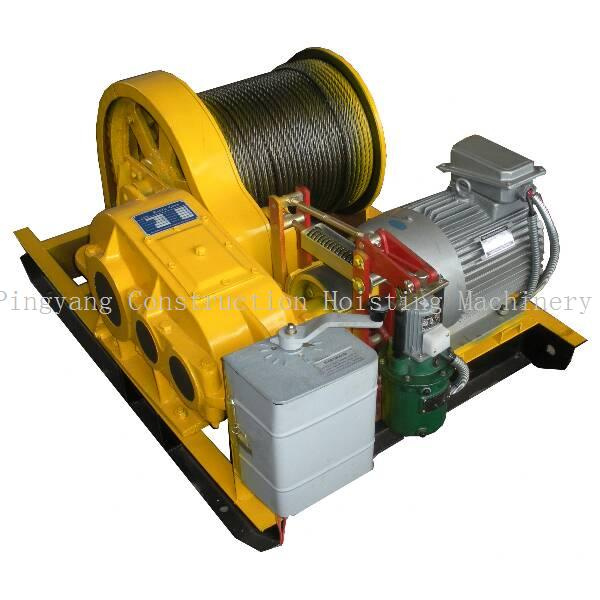

The JM3 is a high-performance heavy duty electric winch and is ideal for materials and equipments loading. 3000 kg line pull capacity. Features an column gear speed reducer, integrated sealed switching controller, dynamic hydraulic/ electromagnetism brake, and three phase asynchronism crane motor. Steel welded drum with flange.
Features:
Switch controller with forward, stop and reverse
Switching Method: Hand turn control
Wires with steel cover protection
Uses 3 wires to power supply connection
3000 kg line pull capacity
Drum capacity 16mm x 180m ropes
Braking: Electric dynamic hydraulic brake, can stop the drum when power loose, also can plus mechanical brake.
With bolt holes on bottom for mounting.
Shipping weight 1000kg
Apprance size: 1775mm(L) x 1150mm(W) x 1100mm(H)
Motor: 7.5kw, 380v, 3P, 50Hz,
Also we can supply various 1ton to 50ton winches, like double drum, fast speed, free fall and so on.
3ton wire rope winch, power winch for construction, building
Capacity from 3ton to 50ton, safety.
| Model | JM2 | JM3 | JM5 | JM8 | JM10 |
| Line pull capacity (kg) | 2000 | 3000 | 5000 | 8000 | 10000 |
| average speed (m/min) | 12 | 10 | 10 | 10 | 10 |
| Wire rope(mm): | 12.5 | 15.5 | 21.5 | 26 | 30 |
| Reduction box | Type | JZQ350 | JZQ350 | JZQ400 | JZQ500 | JZQ650 |
| Transmission ratio | 23.34 | 31.5 | 23.34 | 31.5 | 40.17 |
| Drum (mm) | Diameter/mm | 273 | 325 | 406 | 500 | 530 |
| Length | 480 | 520 | 645 | 900 | 1000 |
| Capacity(m) | 150 | 180 | 250 | 300 | 350 |
| motor | Type | YZ160M2-6 | YZ160M2-6 | YZ160L-6 | YZR225M-6 | YZR225M-6 |
| Power(kW) | 7.5 | 7.5 | 11 | 22 | 30 |
| Rotate speed(r/min) | 948 | 948 | 953 | 720 | 962 |
| Hydraulic Brake | YWZ-200/25 | YWZ-200/25 | YWZ-300/45 | YWZ-300/45 | YWZ-300 |
| Packing Dimension (mm) | 1060x1500x750 | 1600x1100x820 | 1400x1910x950 | 2050x1640x1000 | 2470x2280x1180 |
| G. Weight(kg) | 630 | 680 | 1400 | 3000 | 4000 |
