Electric Power Winch with 1-30ton Capacity
| Price: |
US $ 3000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HC-EW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Electric Power Winch with 1-30 Ton Capacity |
| Power Source: |
Electric |
| Sling Type: |
Wire Rope |
| Warranty: |
Two Years |
| Installation: |
Assembled |
| Colour: |
Customized |
| Type: |
Electric Winch |
| Driven Type: |
AC |
| Carrying Capacity: |
Middle-Level |
| Tonnage: |
25T |
| Running Mode: |
Moving |
| Feature: |
Insulating |
| Standard: |
National Standards |
Product Description

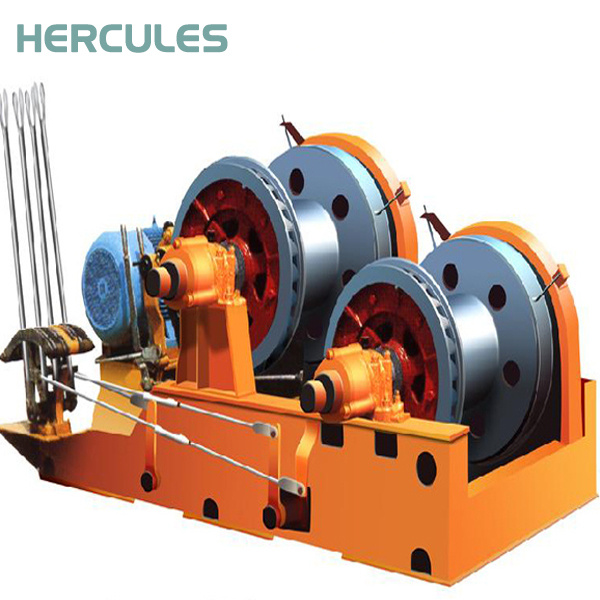

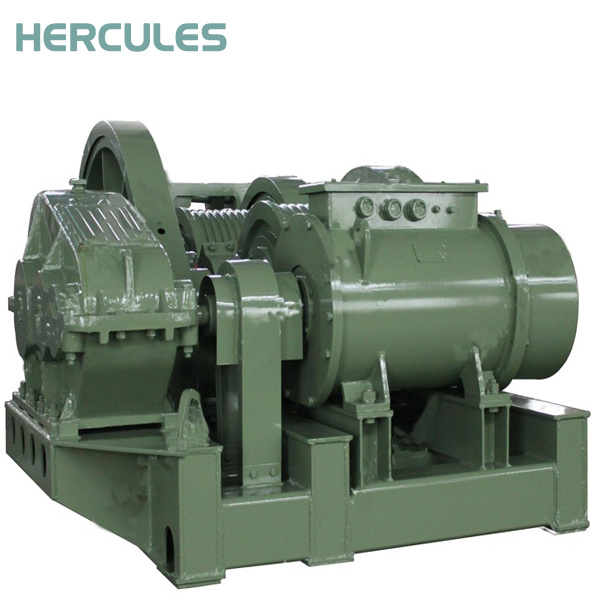

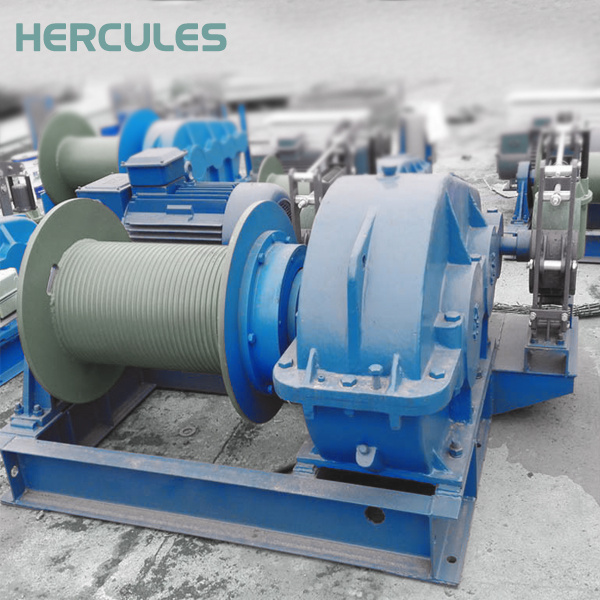

Electric Power Winch With 1-30 ton Capacity
1.Product Description
JM series:Application: JM series electric slow winch, applied to power plants, petrochemical, metallurgy, transport and other large building construction and installation of the equipment, but also applicable to steel structure construction and bridge construction.Feature: The winch has the advantages of small volume, light weight, high bearing capacity, simple structure, easy operation, high reliability. Drive speed reducer using multiple series, Reduction of single stage force, has large capacity and low speed positioning performance, according to user requirements according to different occasions for design construction.Product Model: JM0.5T JM1T JM1.6T JM2T JM3.2T JM5T JM8T JM10T JM12.5T JM16T JM20T JM25T JM32T JMW seriesApplication: JMW series of electric worm gear slow winch, mainly for water conservancy engineering, forestry, mining, port lifting or flat mop, also applies to machinery and equipment, construction of civil construction and installation engineering company.
Main Feature: The winch for worm gear reducer drive ,the drive for the meshing transmission, therefore ,stable running ,small noise ,and has self-locking function ,can realize the reverse self -locking .The speed reducer adopts a high abrasion resistance materials and lubricating device ,long service life .
Product Model: JMW3T JMW5T JMW8T JMW10T JMW16T
JMM series
Application: JMM series friction electric slow winch, mainly for large and giant write, steel structure, steel rope and tunnel, anchor of the long distance and large stroke lifting operation of traction.
Main Feature: The winch wire rope pitch circle diameter size unchanged, constant speed ,large amount of traction power without fluctuation ,which can achieve large tonnage ,long distance, large stroke intelligent heavy equipment hoisting traction, etc. ,but its complex structure ,high manufacturing accuracy.
Product Model: JMM1T JMM2T JMM3T JMM5T JMM10T JMM16T JMM20T
JMM32T
2. Technical Specification | Model | Pull Capacity
(KN) | Speed of Rope
(m/min) | Rope Capacity
(m) | Rope Dia
(mm) | Motor Model | Motor Power
(KW) | Dimension
(mm) | Weight
(KG) |
| JK0.5 | 5 | 22 | 110 | 7.5 | Y100L2-4 | 3 | 710*690*490 | 200 |
| JK1 | 10 | 22 | 80 | 9.3 | Y112M-4 | 4 | 710*610*410 | 300 |
| JK1.6 | 16 | 24 | 115 | 12.5 | Y132S-4 | 5.5 | 940*900*570 | 500 |
| JK2 | 20 | 24 | 110 | 13 | Y132M-4 | 7.5 | 940*900*570 | 550 |
| JK3.2 | 32 | 30 | 250 | 15.5 | YZR180L-6 | 15 | 1640*1430*820 | 1150 |
| JK5 | 50 | 30 | 240 | 21.5 | YZR225M-6 | 30 | 1900*1738*985 | 2500 |
| JK8 | 80 | 30 | 210 | 26 | YZR280S-8 | 45 | 1980*1790*1100 | 3500 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
| Model | Pull Capacity
(KN) | Speed of Rope
(m/min) | Rope Capacity
(m) | Rope Dia
(mm) | Motor Model | Power Pwer
(KW) | Dimension
(mm) | Weight
(KG) |
| JM1 | 10 | 15 | 80 | 9 | Y112M-6 | 2.2 | 740*690*490 | 270 |
| JM1.6 | 16 | 16 | 115 | 12.5 | Y132M-6 | 5.5 | 940*900*570 | 500 |
| JM2 | 20 | 16 | 100 | 13 | Y160M-6 | 7.5 | 940*900*570 | 550 |
| JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430*1160*910 | 1100 |
| JM5 | 50 | 9.5 | 190 | 21.5 | YZR160L-6 | 11 | 1620*1260*948 | 1800 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-5 | 15 | 2180*1460*850 | 2900 |
| JM10 | 100 | 8 | 200 | 30 | YZR200L-6 | 22 | 2280*1500*950 | 3800 |
| JM12.5 | 125 | 10 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| JM16 | 160 | 10 | 500 | 37 | YZR250M-8 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 200 | 10 | 600 | 43 | YZR280M-8 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 250 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 |
| JM32 | 320 | 9 | 700 | 52 | YZR315S-8 | 75 | 4500*2850*2100 | 20000 |
| JM50 | 500 | 8 | 800 | 60 | YZR315M-8 | 90 | 4930*3050*2250 | 38000 |
| JM65 | 650 | 10 | 2400 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |

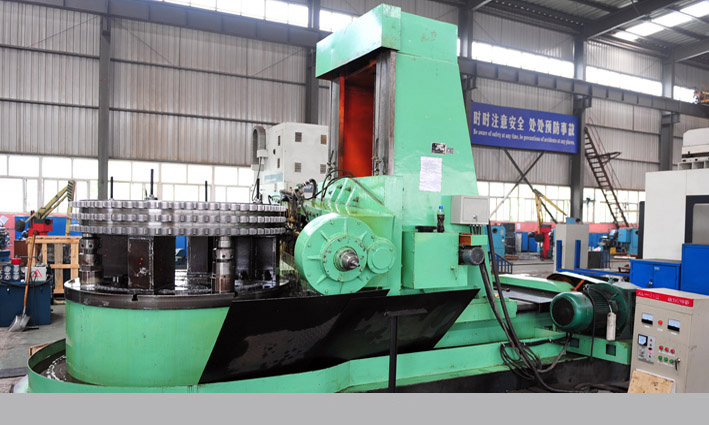

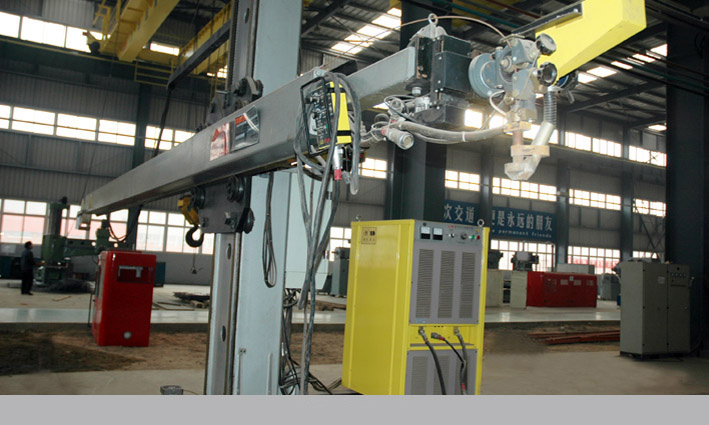

3. Factory View
Henan Hercules Crane Machinery Co., Ltd., is a professional manufacturer specializing in producing and selling cranes and components.
Before registering this company, we have produced and sold cranes for several decades in China domestic market. Our production factory is located in Chang-yuan, Henan which has the good reputation of "Hometown of Crane Machinery in China". We have over 100 professional and technical staffs, and have the ability to provide various crane equipment and lifting solutions.
Henan Hercules Crane Machinery Co., Ltd., located in CBD of Zhengzhou, is a company with registered capital $10 million. It is in charge of communicating with customers, getting orders from overseas for our factory, designing, arranging production, following- up the progress, packaging, shipping, after- sales service, documentation and so on. We have the mature product types including gantry crane, bridge crane, jib crane, electric hoist, grab crane, port crane, ship crane, truck crane and tower crane. Also, we accept customized crane designation and production to meet customers' special requirements.
Our company has always put safety in the first place. All the products are designed and made according to CCC and CE, and widely used in heavy industry factory, workshop, dock yard, truck ship and so on with safety in use, reliable performance, high cost performance and easy maintenance.
Sincerely hope to provide you with professional services about lifting equipment. We will assure to provide you with a safe and reliable, practical and economical lifting equipment solutions.
