Electric Resistance Welding Steel Pipe

Name: Electric Resistance Welding Steel Pipe
Brand: tool-buy.com
SKU: 712978772
Availability: InStock
Rating: 4.8 (61 reviews)

Price:	US $ 600-1000/Ton
Min Order:	20/Ton
Pay Type:	L/C,T/T

Contact Supplier

Weifang East Pipe Industry Technical Co., Ltd.

Showroom Product Company Profile

Prod Model:	Electric Resistance Welding Steel Pipe
O.D.:	21.3-323.9
W.T:	2.11-10.31
Length:	5800mm, 6500mm
Fittings:	Coupling, Elbow, Tee, Cross, Flange, Valve, Reducer
End:	Groove or Plain, Bevel, Thread, Flange
Surface:	Hot DIP Galvanized
Zinc Content:	99.9999%
Usage:	Special Purpose
Section Shape:	Round
Type:	Welded or Seamless
Technique:	ERW Saw Hot Rolled Cold Drawn
Surface Treatment:	Hot DIP Galvanized

Product Description

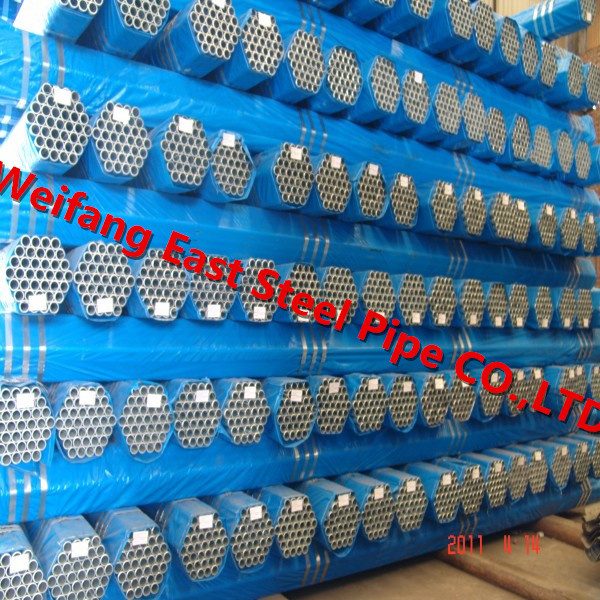

Electric Resistance Welding Steel Pipe

We can product and supply to you various steel pipes according to international standard. Hot dip galvanized steel pipes or Black steel pipes are used in the following fields, steel structure, bulid structure, scaffolding tube, transportation of low presure liquid and gas etc. Our products are exported to about 60 countries in the world; we get a lot of recognition from many customers since our good quality and service.

Standard:
ASTM A135 ASTM A795 ASTM A53, BS1387, EN10255, EN10240, EN10220, EN10219, EN39, JIS3444,GOST54929
Specification:
O. D.: Φ 21.3- Φ 323.9 (mm)
Wall thickness: 2.11- 10.31(mm)
Anticorrosive: Hot Galvanized
End state: 1. Grooved 2. Plain end 3. Screwed& socketed
Function: Fire and water supply system in building

N.D.		O.D.		SCH 10				SCH 30/40
N.D.		O.D.		W.T.		NORMAL WEIGHT		W.T.		NORMAL WEIGHT
(mm)	(INCH)	(mm)	(inch)	(mm)	(inch)	(kg/mtrs)	(lbs/ft)	(mm)	(inch)	(kg/mtrs)	(lbs/ft)
15	1/2''	21.30	0.840	----	----	----	----	2.77	0.109	1.27	0.85
20	3/4''	26.70	1.050	2.11	0.083	1.28	0.96	2.87	0.113	1.69	1.13
25	1''	33.40	1.315	2.77	0.109	2.09	1.41	3.38	0.133	2.50	1.68
32	1.1/4''	42.20	1.660	2.77	0.109	2.69	1.81	3.56	0.140	3.39	2.27
40	1.1/2''	48.30	1.900	2.77	0.109	3.11	2.09	3.68	0.145	4.05	2.72
50	2''	60.30	2.375	2.77	0.109	3.93	2.64	3.91	0.154	5.45	3.66
65	2.1/2''	73.00	2.875	3.05	0.120	5.26	3.53	5.16	0.203	8.64	5.80
80	3''	88.90	3.500	3.05	0.120	6.46	4.34	5.49	0.216	11.29	7.58
90	3.1/2''	101.60	4.000	3.05	0.120	7.41	4.98	5.74	0.226	13.58	9.12
100	4''	114.30	4.500	3.05	0.120	8.37	5.62	6.02	0.237	16.09	10.80
125	5''	141.30	5.563	3.40	0.134	11.58	7.78	6.55	0.258	21.79	14.63
150	6''	168.30	6.625	3.40	0.134	13.85	9.30	7.11	0.280	28.29	18.99
200	8''	219.10	8.625	4.78	0.188	25.26	16.96	7.04	0.277	36.82	24.72
250	10''	273.10	10.750	4.78	0.188	31.62	21.23	7.08	0.307	51.05	34.27

ASTM A53

N.D.	SPECIFIED OUTSIDE DIAMETER		WALL THICKNESS		WEIGHT				SCHEDULE NO.	TEST PRESSURE				NO. OF THREADS PERINCH
					PLAIN ENDS					TEST PRESSURE
					PLAIN ENDS					Grade A		Grade B
					Kg/m		Kg/ft			Grade A		Grade B
in	in	mm	mm	mm	blk	gal	blk	gal		psi	Kg/cm2	psi	Kg/cm2
1/2	0.840	21.3	0.109	2.77	1.27	1.35	0.39	0.41	40	700	50	700	50	14
3/4	1.050	26.7	0.113	2.87	1.69	1.79	0.52	0.55	40	700	50	700	50	14
1	1.315	33.4	0.133	3.38	2.50	2.65	0.76	0.81	40	700	50	700	50	11-1/2
1-1/4	1.660	42.2	0.140	3.56	3.39	3.59	1.03	1.10	40	1200	84	1300	91	11-1/2
1-1/2	1.900	48.3	0.145	3.68	4.05	4.29	1.23	1.31	40	1200	84	1300	91	11-1/2
2	2.375	60.3	0.154	3.91	5.44	5.77	1.66	1.76	40	2300	162	2500	176	11-1/2
2-1/2	2.875	73.0	0.203	5.16	8.63	9.15	2.63	2.79	40	2500	176	2500	176	11-1/2
3	3.500	88.9	0.125	3.18	6.72	7.12	2.05	2.17	--	1290	91	1500	105	8
			0.156	3.96	8.29	8.79	2.53	2.68	--	1600	112	1870	131
			0.188	4.78	9.92	10.52	3.02	3.21	--	1930	136	2260	159
			0.216	5.49	11.29	11.97	3.44	3.65	40	2220	156	2500	176
3-1/2	4.000	101.6	0.125	3.18	7.72	8.18	2.35	2.49	--	1120	79	1310	92	8
			0.156	3.96	9.53	10.10	2.90	3.08	--	1400	98	1640	115
			0.188	4.78	11.41	12.09	3.48	3.69	--	1690	119	1970	139
			0.226	5.74	13.57	14.38	4.14	4.38	40	2030	143	2370	167
4	4.500	114.3	0.125	3.18	8.71	9.23	2.65	2.81	--	1000	70	1170	82	8
			0.156	3.96	10.78	11.43	3.29	3.48	--	1250	88	1460	103
			0.188	4.78	12.91	13.68	3.93	4.17	--	1500	105	1750	123
			0.237	6.02	16.07	17.03	4.90	5.19	40	1900	134	2210	155
5	5.563	141.3	0.156	3.96	13.41	14.21	4.09	4.33	--	1010	71	1180	83	8
			0.188	4.78	16.09	17.06	4.90	5.20	--	1220	86	1420	100
			0.219	5.56	18.61	19.73	5.67	.01	--	1420	100	1650	116
			0.258	6.55	21.77	23.08	6.64	7.03	40	1670	117	1950	137
6	6.625	168.3	0.188	4.78	19.27	20.43	5.87	6.23	--	1020	72	1190	84	8
			0.219	5.56	22.31	23.65	6.80	7.21	--	1190	84	1390	98
			0.250	6.35	25.36	26.88	7.73	8.19	--	1360	96	1580	111
			0.280	7.11	28.26	29.96	8.61	9.13	40	1520	107	1780	125
8	8.625	219.1	0.188	4.78	25.26	26.78	7.70	8.16	--	780	55	920	65	16
			0.203	5.16	27.22	28.85	8.30	8.79	--	850	60	1000	70
			0.219	5.56	29.28	31.04	8.92	9.46	--	910	64	1070	75
			0.322	8.18	42.55	45.10	12.97	13.75	40	1340	94	1570	110

ASTM A135 (BLACK AND GALVANIZED) SCH10

N.D.	O.D.	WALL THICKNESS	NOMINAL WEIGHT	TEST PRESSURE
inch	mm	mm	kg/m	Mp
3/4	26.8	2.11	1.28	17.24
1	33.5	2.77	2.09	17.24
1-1/4	42.2	2.77	2.70	16.55
1-1/2	48.3	2.77	3.10	14.48
2	60.3	2.77	3.93	11.72
2-1/2	73.0	3.05	5.26	10.34
3	88.9	3.05	6.45	8.27
3-1/3	101.6	3.05	7.41	6.89
4	114.3	3.05	8.36	6.21
5	141.3	3.40	11.58	5.86
6	168.3	3.40	13.84	5.02
8	219.1	4.80	15.41	4.26

ASTM A135 (BLACK AND GALVANIZED) SCH40

N.D.	O.D.	WALL THICKNESS	NOMINAL WEIGHT	TEST PRESSURE
inch	mm	mm	kg/m	Mp
1/2	21.3	2.77	1.27	17.20
3/4	26.8	2.87	1.68	17.20
1	33.5	3.38	2.50	17.20
1-1/4	42.2	3.56	3.38	17.20
1-1/2	48.3	3.68	4.05	17.20
2	60.3	3.91	5.43	16.08
2-1/2	73.0	5.16	8.62	17.20
3	88.9	5.49	11.28	15.30
3-1/3	101.6	5.74	13.56	14.00
4	114.3	6.02	16.06	13.06
5	141.3	6.55	21.76	11.50
6	168.3	7.11	28.34	10.48
8	219.1	8.18	36.90	7.96

Weifang East Pipe Industry Technical Co., Ltd, established in 1979 in world kite capital_Weifang, is a professional enterprise integrating production, technology research, import and export trade. It is one of the largest manufacturers of large diameter anti-corrosion pipes and steel fire sprinkler pipes in China. The company has more than 30 years professional production experience in pipeline system with an annual production capacity of 500, 000tons.

The company has established a strict quality management system and obtained many international and domestic certificates, including ISO9001, UL, FM, CE, JIS, API 2B, API 5L, API 5CT, GOST and pressure piping components certificate.

Our products are widely used in oil & gas transmission pipeline construction, petroleum engineering, marine engineering, water conservancy construction and other large projects. Relying on high-quality product & good faith business philosophy, our product has covered more than 60 countries and, such as USA, Britain, Japan, Canada, Australia, Brazil, The Middle East, South Africa etc.
