| Prod Model: |
JT5-2/4-2/3-1/2-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jig Type: |
Saw-Tooth Wave Jig |
| Testing: |
Supply |
| Flowchart: |
Supply |
| Application: |
Placer Gold, Copper, Tin, Tungsten, Iron, Hematite |
| Spare Parts: |
Supply |
| Installation: |
Supply |
| Delivery Time: |
30 Days |
| Visit Factory: |
Welcome |
| Type: |
Gravity Separator |
| Voltage: |
380V |
| Weight: |
5T |
| Certification: |
SGS |
| Warranty: |
1 Year |
| Color: |
Blue |
| Customized: |
Customized |
| Condition: |
New |

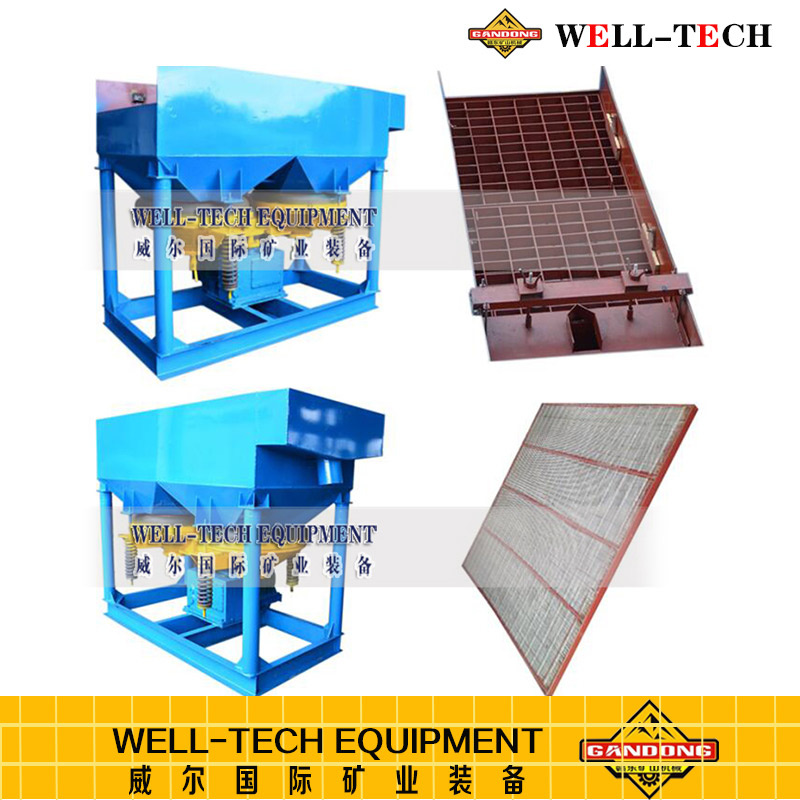

Product Description
Feature
High capacity
High concentration ratio and high recovery
Fabricated with highest quality material
Easy to install, operate and maintain
The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
Saving water 30-40% than ordinary jig
The pulsation speed very easy adjusted by regulator
Suitable for roughing and cleaning
Can achieve a good result in processing such as placer gold, tungsten,iron, tin, hematite, copper, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc.
Our Saw-tooth Wave Jig Machine is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional Sine Wave Jig Machine. The difference between Saw-tooth Wave Ladder Jig and Sine Wave Jig is that the pulsation curve for jigging is saw-tooth wave shape, with speedy upward flow and slow downward flow. Bed layer is elevated integrally and slowly dropped with a long effective loose time, allowing significant increase of handling capacity for unit screen surface, decrease of lower limit of grain size recovery and large save of make-up water for undersize fraction.
Industrial tests carried our of Saw-tooth Wave Jig and Sine Wave Jig for comparison showed that the recovery rate for operation of Saw-tooth Wave Jig is raised by Sn:3.01%, W:5.5%, Pb:1.63%, Zn:2.04%; The water consumption reduces 30%-40% than traditional Jig. The area reduces 1/3 and the stroke may adjust also.
Technical Specification
| Model | Hutch | Diaphragm | Feeding Size
(mm) | Amount of make-up water (m3/t) | Make-up water pressure
(Mpa) | Capacity
(t/h) | Power
(kw) | Dimensions
(mm) | Weight (Kg) |
| Shape | Area
(m2) | Stroke (mm) | Frequency of Stroke
(r/min) |
| JT0.57-1 | Trapezoid | 0.57 | 8.5-12
10-17
12-21 | 80-180 | <6 | 1-2 | ≥0.05 | 1.5-3 | 1.5 | 1550×780×1530 | 610 |
| JT1-1 | Trapezoid | 1.04 | <10 | 2-3 | 2.5-5 | 2.2 | 2270×1110×1890 | 900 |
| JT2-2 | Rectangle | 2.28 | <10 | 2-4 | 5-10 | 3 | 3225×1550×2050 | 1640 |
| JT3-1 | Trapezoid | 3 | 12-30 | 50-125 | <10 | 3-6 | 7.5-15 | 5.5 | 2745×2000×3030 | 3085 |
| JT4-2 | Rectangle | 4 | 25-57 | <25 | 4-8 | 8-20 | 7.5 | 4240×1990×2750 | 3098 |
| JT4-2S | Rectangle | 4 | 25-57 | <25 | 4-8 | 8-20 | 4×2 | 4240×1990×2750 | 3500 |
| JT5-2 | Trapezoid | 4.86 | 12-30 | <10 | 3-6 | 12-25 | 7.5 | 3600×2000×2600 | 4500 |

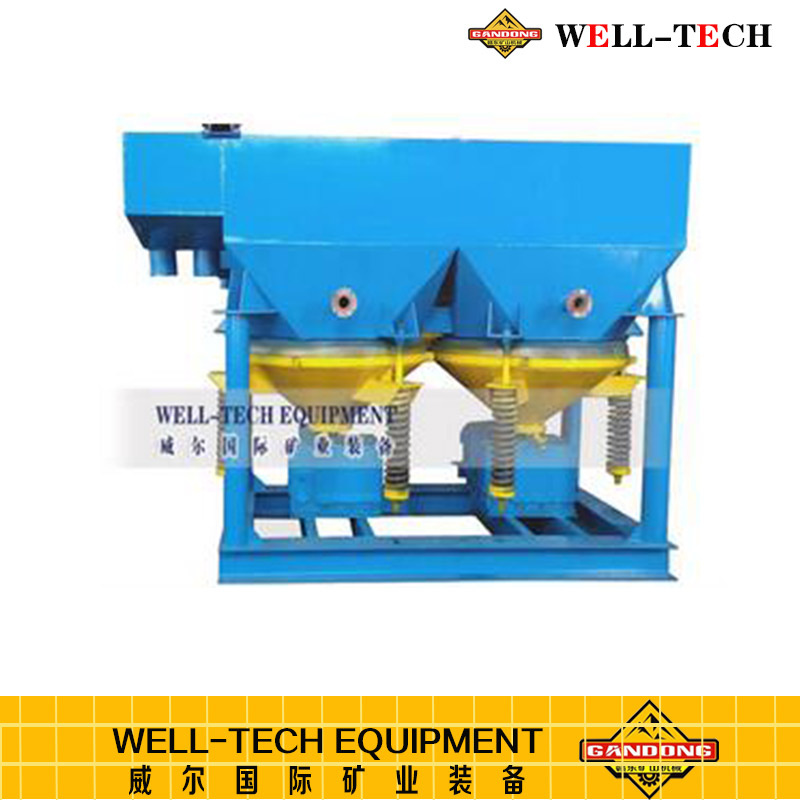

single motor driver

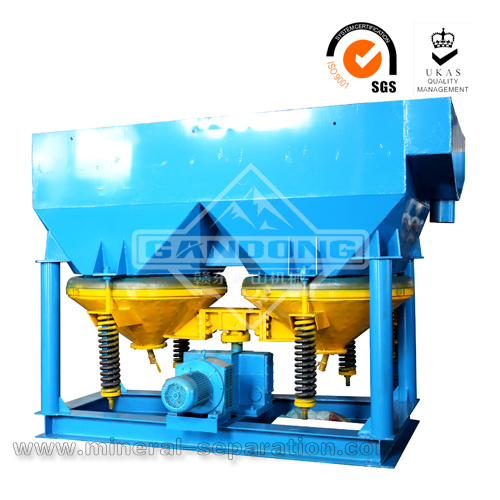

double motor drive for big particle size heavy metal

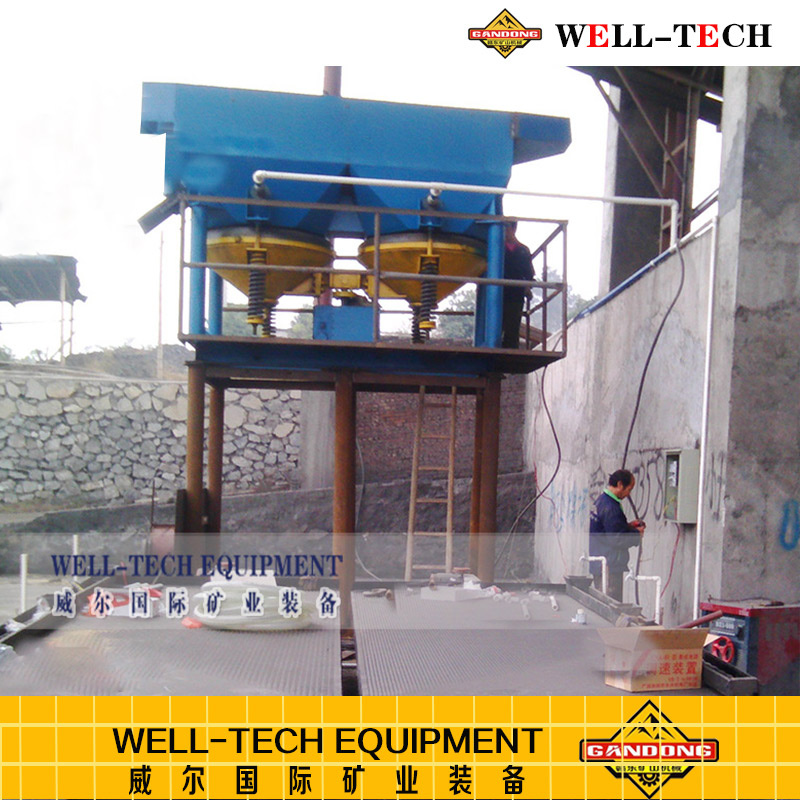

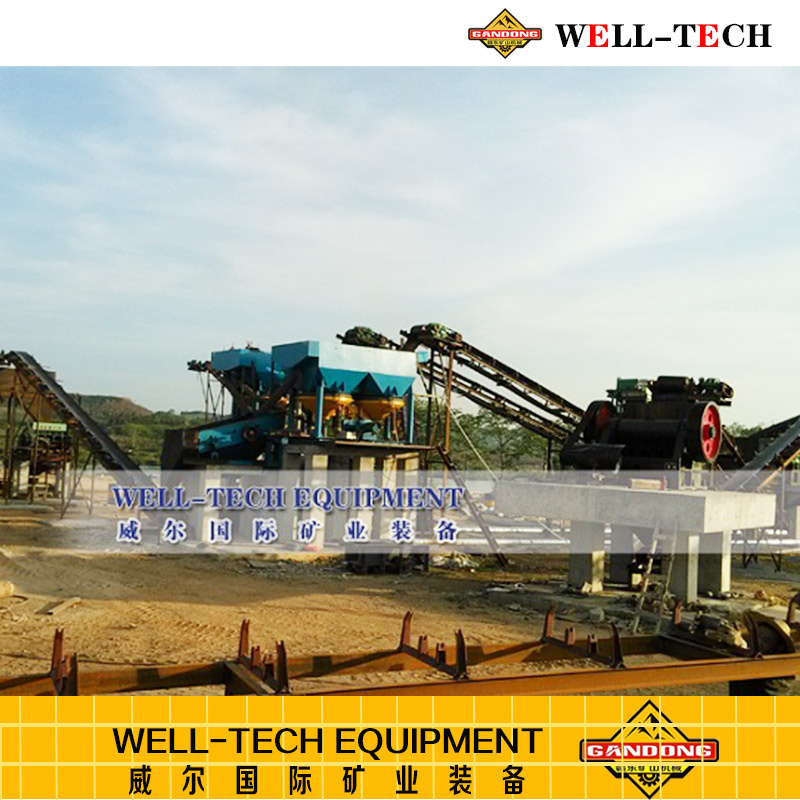

Application

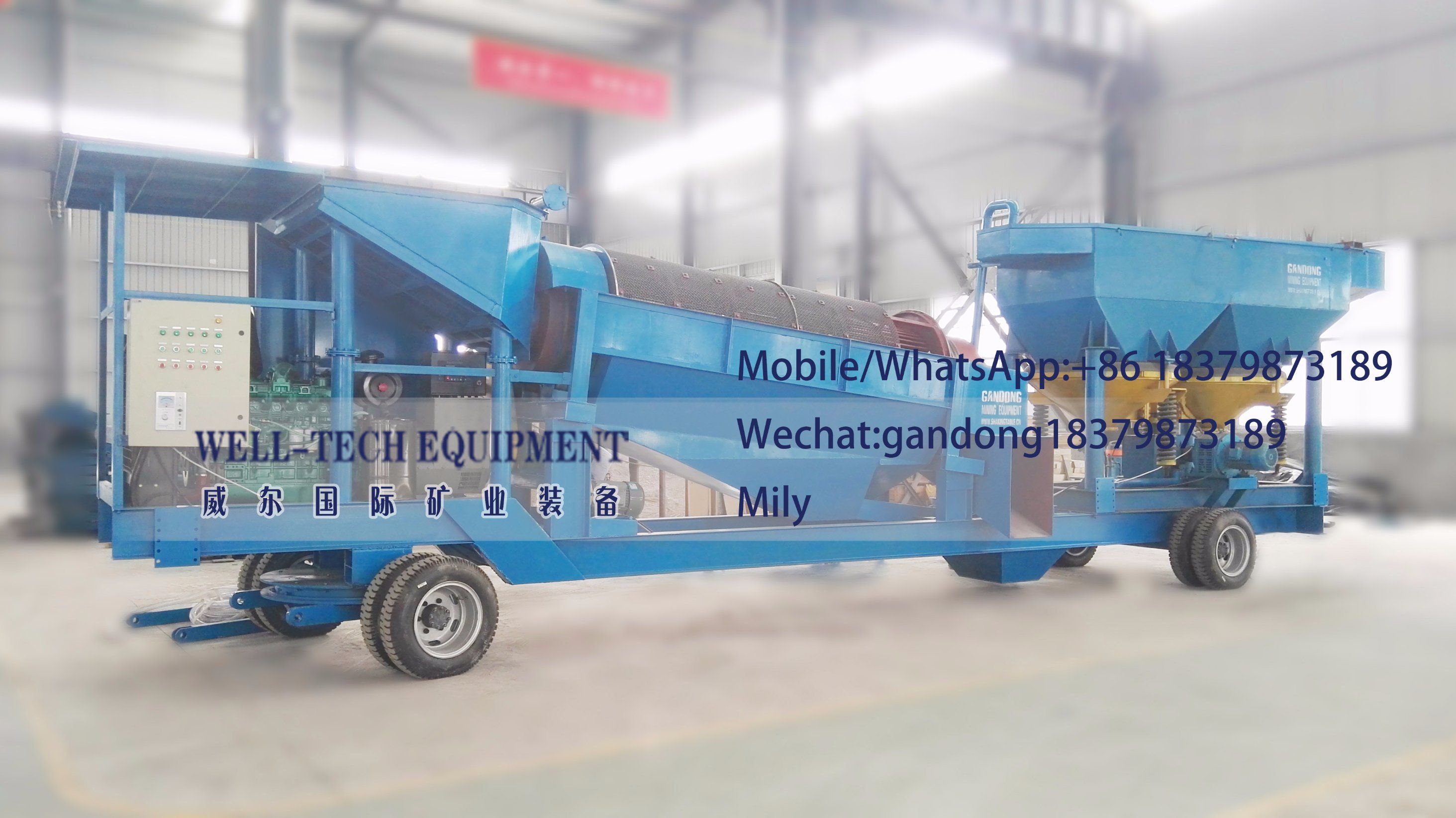

MOBILE DIAMOND WASHING PLANT

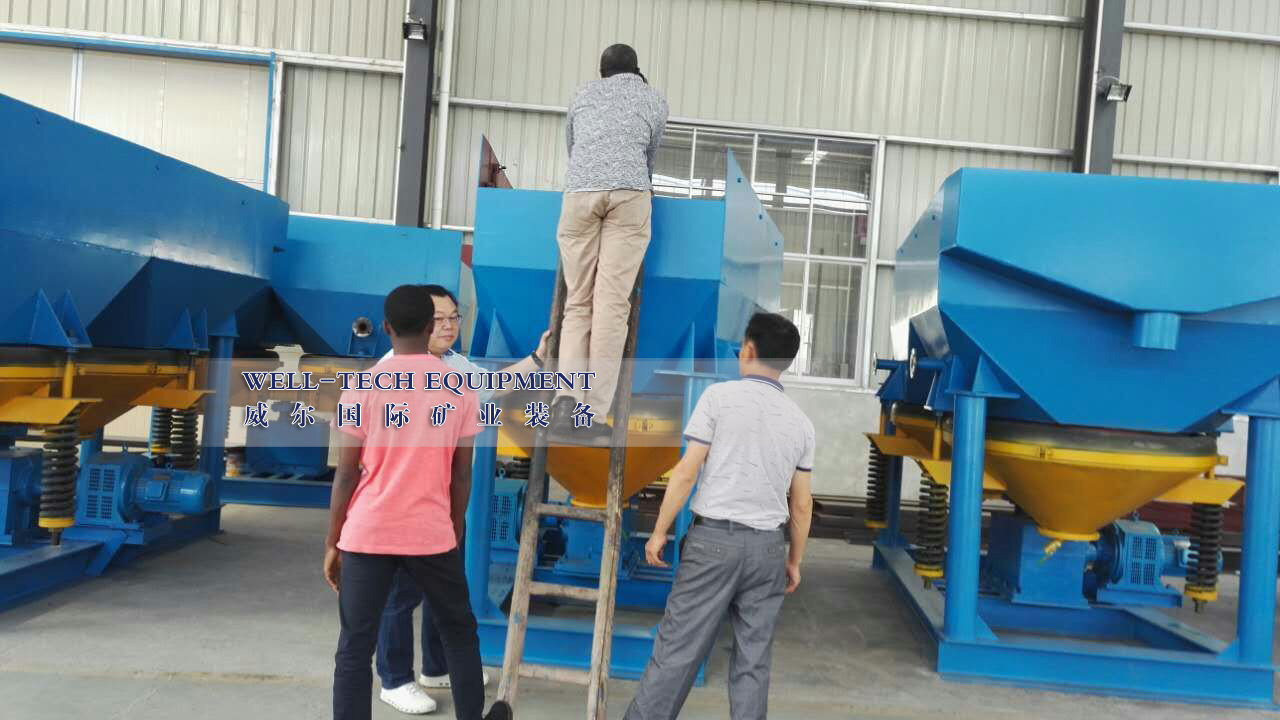

CUSTOMER VISITTING
