| Prod Model: |
SJZ |
| Drive Unit: |
Electric |
| Wheel Material: |
PU |
| Whole Height: |
2596mm |
| Whole Weight: |
2080kg |
| Voltage: |
48V |
| Driving Speed Laden/Unlenden: |
4km/6h |
| Max Gradient Performance Laden/Unladen: |
4/6% |
| Battery Type: |
AC |
| Pump Motor Rating: |
2.2 |
| Charger: |
48V/10A |
| Application: |
Building Crane |
| Carrying Capacity: |
Middle-Level |
| Driven Type: |
AC |
| Running Mode: |
Moving |
Product Description
Style no.: SJZ0.5-11Rated capacity:500kg
max. platform height:12000mm
Min. platform height/MM: 1560mm
Platform size:2300*1140MM
whole length/width/height: 2957*1135*2596mm
Voltage:48V
Ah battery: 48V/100A
1.Folding guardrails conforms with international safety standard, which can effectively protect the safety of high-altitude operation.
2.The operator can control the movement,lifting and descending to realize continuous operation at high altitudes.
3.Installed with emergency stop switch to protect personal safety.
color: yellow or red, can be customerlized.

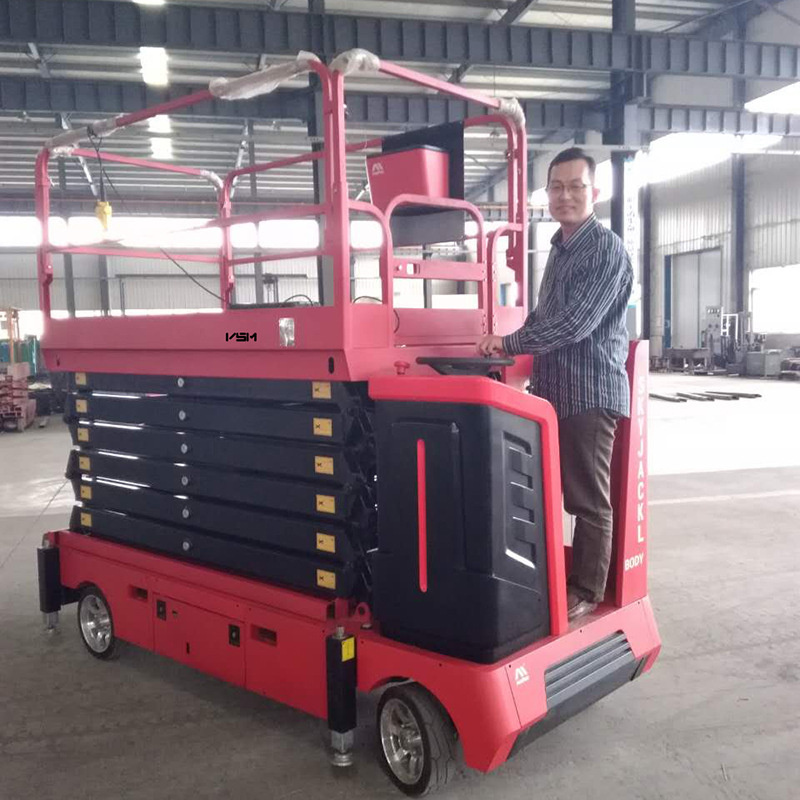

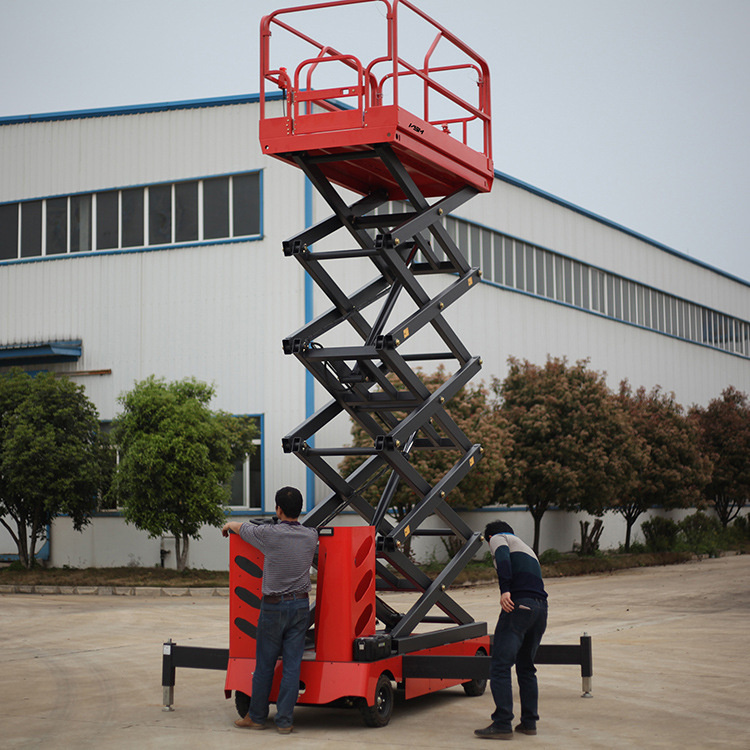

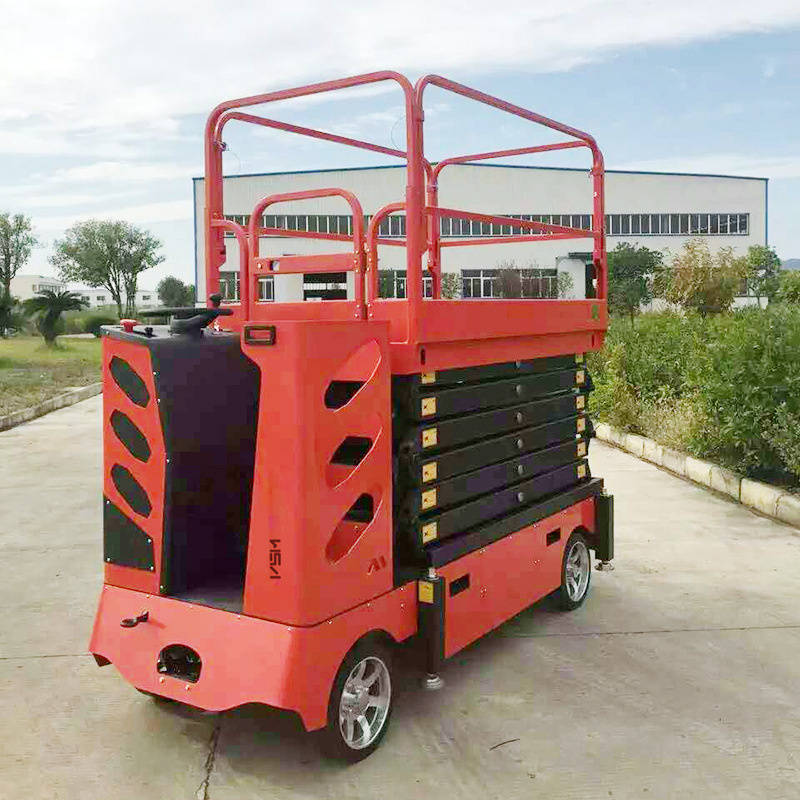

PRODUCT PHOTOES
PRODUCT INFORMATION:| Model | SJZ0.5-9 | SJZ0.5-11 | SJZ0.5-12 |
| Platform rated load /kg | 500 | 500 | 500 |
| Max.Platform height /mm | 9000 | 11000 | 12000 |
| Min.Platform height /mm | 1558 | 1560 | 1560 |
| Platform working dimension /mm | 1850×1000 | 2150×1140 | 2300×1140 |
| Support leg expansion size /mm | 1860×2195 | 2250×2895 | 2280×2895 |
| Whole length width /mm | 2490×1170 | 2760×1295 | 2957×1135 |
| Whole height /mm | 2558 | 2560 | 2596 |
| Whole weight/kg | 1660 | 1750 | 2080 |
| Lifting motor /V/kw | 48/2.2 | 48/2.2 | 48/2.2 |
| kwDrive motor /V/kw | 48/2.5 | 48/2.5 | 48/2.5 |
| Travel speed /h /km | 4-6 | 4-6 | 4-6 |
| The max ramp rate/% | 10-15 | 10-15 | 10-15 |
| AhBattery /V/Ah | 48/75 | 48/100 | 48/135 |
| harger /V/A | 48/10 | 48/10 | 48/10 |
| Voltage /V | 48 | 48 | 48 |

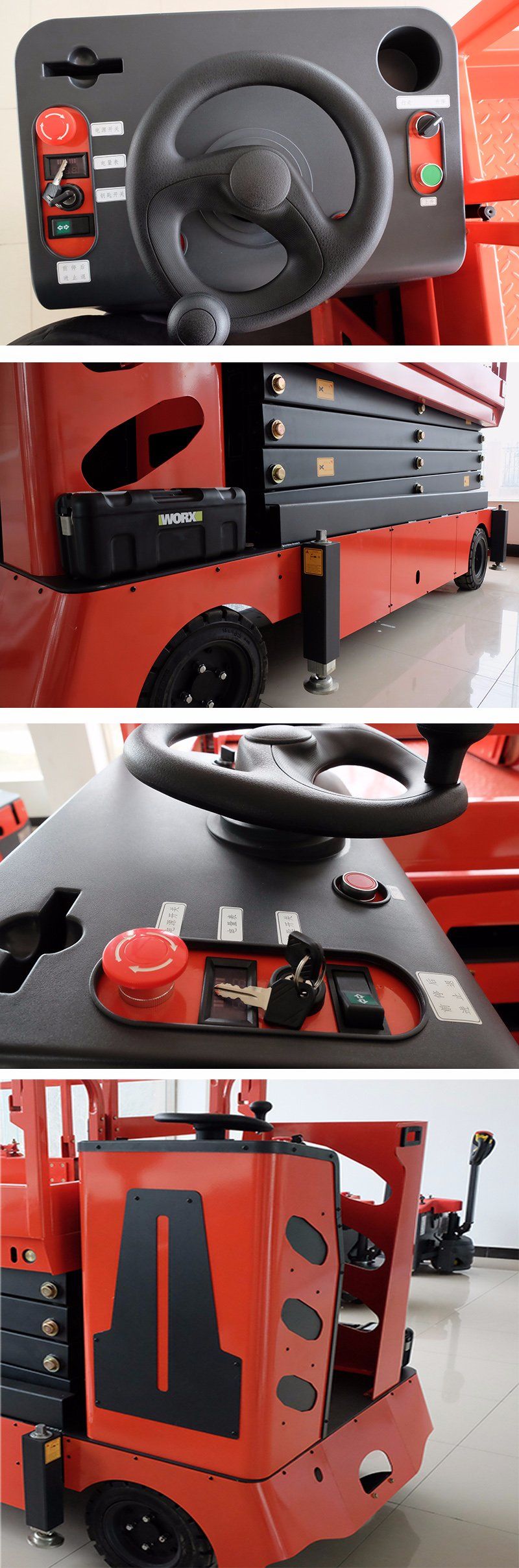

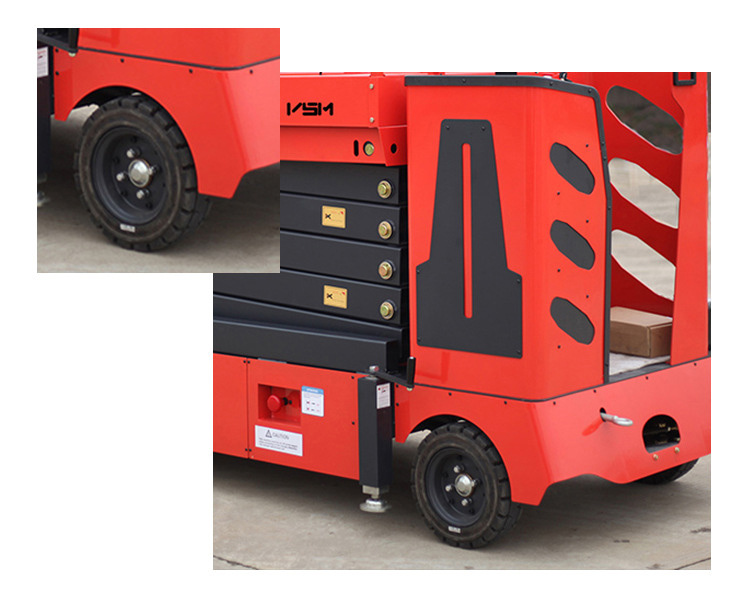

DETAILED PHOTOES
