Prod Model: |
ZE4204TE-QHR |
Power: |
Pneumatic |
Structure: |
Electric Torque Wrench Pumps |
Product Description

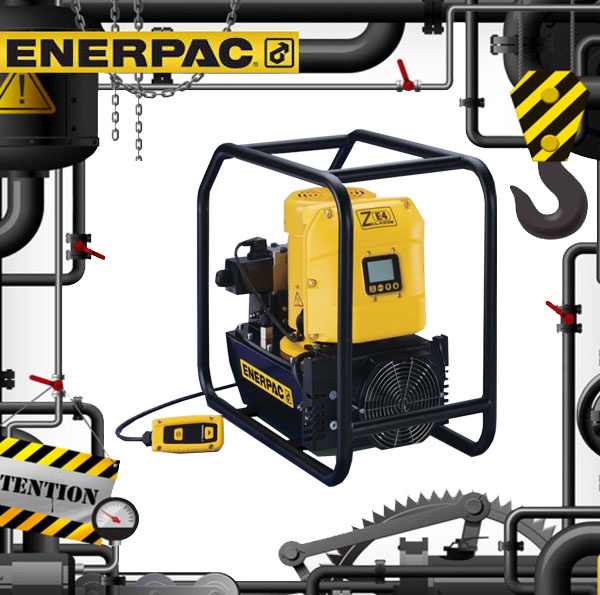

1>. ZE-Series, Electric Torque Wrench Pumps
Auto-Cycle feature provides continuous cycle operation of the torque wrench as long as the advance button is pressed (pump can be used with or without auto cycle feature)
LCD readout provides pressure and torque display and a number of diagnostic and readout capabilities never before offered on a portable electric pump
Totally enclosed, fan-cooled industrial electric motors supply extended life and stand up to harsh industrial environments
High-strength, molded electrical enclosure protects electronics, power supplies and L CD readout from harsh environments.
For Use With Torque Wrenches | Max. Operating Pressure | Model Number with Heat Exchanger and Roll Cage | Motor Electrical Specification | Usable Oil Capacity1) | Weight |
---|
(bar) | (Volt - Ph - Hz) | (litres) | (kg) |
All S and W-Series | 700 | ZE4204TB-QHR | 115 - 1 - 50/60 | 4,0 | 61 |
700 | ZE4204TE-QHR | 230 - 1 - 50/60 | 4,0 | 61 |
700 | ZE4204TG-QHR | 230 - 3 - 50/60 | 4,0 | 62 |
700 | ZE5204TW-QHR | 400 - 3 - 50/60 | 4,0 | 62 |
All SQD and HXD-Series | 800 | ZE4204TB-EHR | 115 - 1 - 50/60 | 4,0 | 61 |
800 | ZE4204TE-EHR | 230 - 1 - 50/60 | 4,0 | 61 |
800 | ZE4204TG-EHR | 230 - 3 - 50/60 | 4,0 | 62 |
800 | ZE5204TW-EHR | 400 - 3 - 50/60 | 4,0 | 62 |
3>. XC-Series, Cordless Hydraulic Pump
Performance of a Powered Pump. Portability of a Hand Pump.
Lightweight design with integrated handle and carrying strap for portability
Bladder reservoir prevents contamination and allows pump usage in any position
Powerful 0,37 kW motor and 28 Volt Lithium-Ion battery deliver exceptional speed and run time
High-strength fiberglass reinforced composite shroud for superior durability in demanding job site environments
Cordless technology eliminates tripping hazards found in other electric or air powered pumps
Available in both single-and double-acting valve configurations.
4>. PE-Series, Hydraulic Submerged Electric Pumps
Enerpac high pressure hydraulic submerged electric pump is best suited to power small to medium size cylinders, hydraulic tools or whenever a quiet, intermittent duty cycle is needed.
Two-speed pump operation reduces cycle times for improved productivity
Powerful 0,37 kW induction motor is submerged in the oil reservoir to run cooler, protect the motor, simplify the pump interface, save space and reduce noise
Large 5,5 litres reservoir allows operation of a wide range of cylinders
24 VDC remote pendant control on certain models for safer operation
Externally adjustable relief valve allows control of operating pressure without opening the pump
40-micron internal return line filter keeps oil clean, promoting longer pump life
Full length side tube for easy monitoring of oil level.
5>. ZU4-Series, Hydraulic Portable Electric Pumps
Enerpac high pressure ZU4 series electric pumps feature Z-Class high-efficiency hydraulic pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
Powerful 1,25 kW universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
High-strength, moulded composite shroud protects electric pump motor and electronics, while providing an ergonomic, non-conductive handle for easy portability.
Pro-Series models only
* Back-lit LCD readout provides pressure display and a number of
diagnostics and readout capabilities never offered on a portable
pump before
- pump usage information, hour and cycle counts
- self-test, diagnostic and read-out capabilities
- pressure readout and auto-mode pressure settings.
