| Prod Model: |
BLD-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Bld |
| Model Produced: |
Bld-200, Bld-400, Bld-0041 |
| Max Steel Bar Diameter Can Tie: |
21mm, 40mm, 68mm |
| Quality Similar As: |
Rb397/395/392, Rb655/650/650A Rebar Tier |
| Fitting Tie Wire: |
Tw897A Rebar Tie Wire, Tw1525 Rebar Tie Wire |
| The Packing: |
Carton and Pallet |
| Sample: |
Available and Fast Delivery |
Product Description

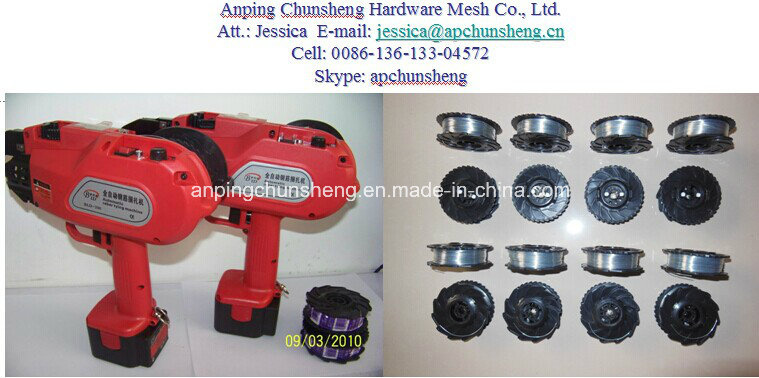

Rebar Tying Machine
Automatic rebar tying machine or is called Rebar tier or rebar tier guns, is one new intellectualized construction power tools.
It ties the rebar automaticly instead of the traditional tying method by hands, it will increase the working efficiency by 3-4 times. The rebar tying machine can be widely used in many construction industry such like building site, bridge, subway and so on.
Feature of rebar tying machine
1,lightweight and compact body
2,reduces tying time
3,NI-MH higher capacity battery
4,reduces risk of health problems
5,brushless twisting
6,one hand operation
Model informations
Model No. |
BLD-200 |
BLD-400 |
BLD-0041 |
Max Tying Diameter |
21mm |
40mm |
68mm |
Time of Making a Knot |
0.8 seconds |
0.8 seconds |
1.2 seconds |
Voltage |
DC9.6V |
DC9.6V |
DC9.6V |
Weight | 2.15kgs | 2.2kgs | 3.3kg
|
Turns per Tie |
2 turns/3turns |
2turns/3turns |
1turn |
Ties per Coil |
Approx. 230ties(2turns) |
Approx.160ties(2turns) |
Approx 140ties/1 turn |
Ties per Charge |
4-5 Coils |
6-7 Coils |
7-8 Coils |
Length of Wire for Tying |
380mm/2 turns
510mm/3 turns |
600mm/2 turns
780mm/3 turns |
100-220mm/1turn |
Dimension(L)X(W)X(H) |
398mmX150mmX410mm |
398mmX150mmX410mm |
330mm*310mm*80mm
|
Contents of the tool box: 1 rebar tying machine
2 battery pack
1 quick charger
4 galvanized wire roll
1 long nose plier
1 instruction manual
1 hex wrench
rebar tying machine dedicated rebar tie wire
1. 0.8MM diameter spool wire fit for MAX RB397/395/392, BLD-400 rebar tying machine
Includes: 50 coils per carton, 50 cartons per pallet
Weight of one carton: 44 lbs
2. 1.5mm diameter spool wire fit for MAX RB650/655/650A, BLD-0041 rebar tying machine
Includes 50 coils per carton, 50 carton per pallet
120 ties per coil
Tying speed: Less than one second
Weight of one case: 50 lbs.
Package of the rebar tie wire in carton and pallet(50spools/carton; 50cartons/pallet----2500spools/pallet)
rebar tying machine and TW897A, TW1525 quality rebar tie wire supplier
Manufacturer: Anping Chunsheng Hardware Mesh Co., Ltd.
Contact: Jessica Wang
Mobile: 0086-13613304572
· Anping Chunsheng Hardware Mesh Co., Ltd. Located in Hebei province, which occupied about 70% Rebar Tie Wire, Rebar Tying Machine, Metal Wire and Corrugated Roofing Sheets products output of the world. Our factory in Anping, where only two and half hours drive to Beijing.
During the past 16 years, we dedicate to produce high quality rebar tie wire, rebar tying machine and corrugated roofing sheet at competitive price, offer professional services and customized services to worldwide customers.
Our leading products include rebar tying machine, tw897A tie wire, tw1525 tie wire, galvanized corrugated roofing sheet, color coated corrugated roofing sheets, FRP Panels, Oval Steel Wire, double loop ties, and all kinds of Wire Mesh products. Nylon coated steel wire as our present new and green product, it is not any contaminative With our environment but can work in -100 to 230degree.
·
We have our own R&D department and offer customized services.
Our QC departments carry on strict quality control procedure from raw material to cargo packing, checking cargo according to the customers' technical requirement and commercial contract. We have passed ISO9001: 2000.
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
Welcome to visit our factory and talk more business.
