| Prod Model: |
GF2013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
1% |
| Type: |
Medium Voltage Current Clamp |
| Current Range: |
0~300A or 0~1000A, 0~2000A |
| Weigt: |
420g |
| Color: |
Black and White |
| Communication: |
RF433m or RF868m, RF915m |
| Frequency: |
50Hz or 60Hz |
| Voltage Grade: |
6kv,10kv,20kv,35kv, 69kv |
| Recorder Time: |
1-60minutes |
| Display: |
Digital |
| Stucture: |
Transformer |
Product Description

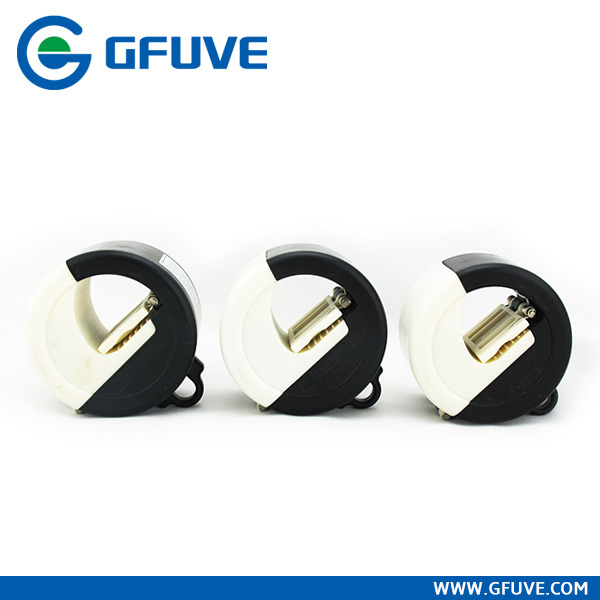

GF2013 wireless medium voltage clamp current meter

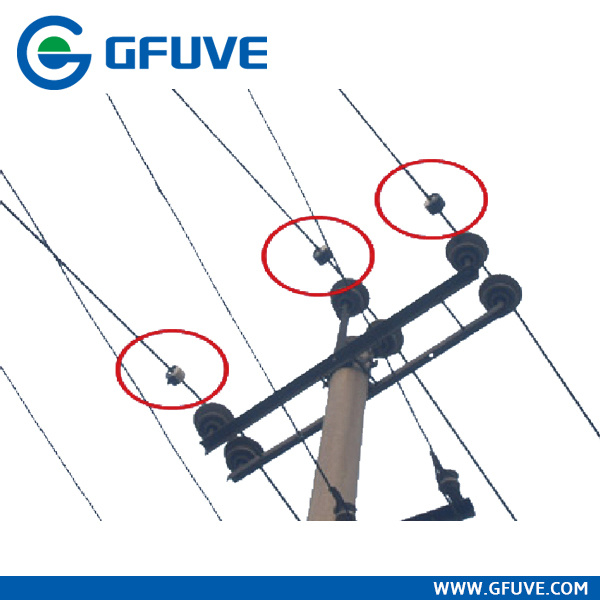

GF2013 medium voltage clamp current meter with wireless is installed on high voltage 6KV~35KV power line, this phase load current measuring calculation, and the measured value through the 433M wireless communication transmission to other copy read equipment (intelligent terminal) analyzed and using.
The equipment adopts Rogowski coil measurement technology, low power design and has charged installation etc., easy to use, simple.
Features and Specifications
1. Measurement Range: 0~300A; Frequency 50/60Hz;
2. Measurement Accuracy: Class 1%, 2%;
3. Small volume, light weight, easy to overhead installation, safe environmental protection;

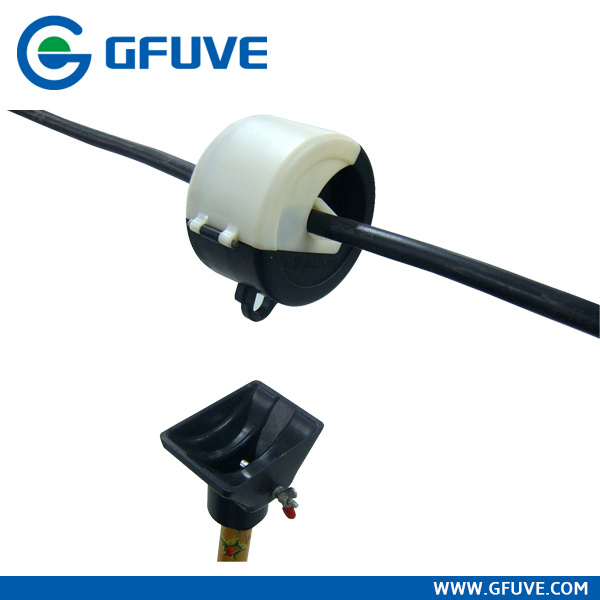

4. Simple structure, convenient and flexible disassembly, charged installation;
5. Battery power supply, low power consumption, long life;
6. Working Temperature: -40~+70degrees;
7. Transmission distance: 100 m;
8. Communication with 433M module;
9. Have 2M memory, it can continuous storage 90 days data (record one data for every 15 minutes);
10. Storage data interval time can be set.
