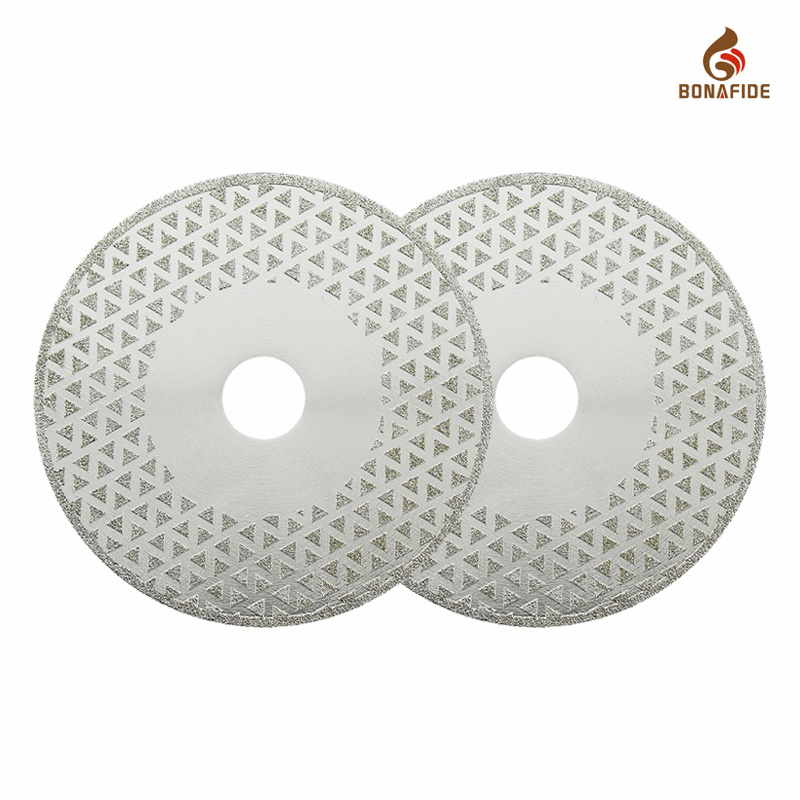

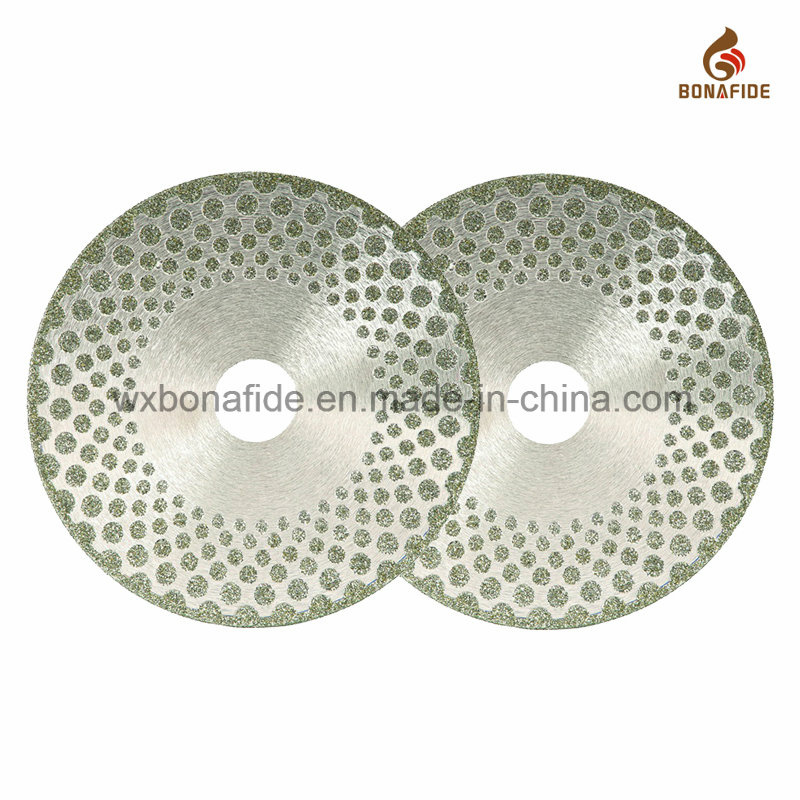

Electroplated Diamond Blade Cutting & Grinding Star Sky Type
| Price: |
US $ 1-5/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
EDSS |
| Arbor Hole: |
20,22.23,30, as Requested |
| Feature: |
Star Sky Type |
| Color: |
Customized |
Product Description
Specifications
1.Thickness:1.4-1.8mm etc. or customized
2.Grit: 40/45,or upon request
3.Arbor hole:7/8" 22.23mm or Customized
4.Application:Electroplated diamond cutting blade is widely used for cutting ceramic tiles, marble, FRP&GRP, granite, composite material,wall fiberglass, fiber cement etc.
We can make any special design according to customer's specific requirements.| Part No. | Diameter | Arbor hole | Grit | Thickness of
steel core | Rim |
| EDSS100 | 4" / 100mm | 7/8" 22.23mm | #40/45 | 1.4mm | continuous/segment |
| EDSS115 | 4.5" / 115mm | 7/8" 22.23mm | #40/45 | 1.4mm | continuous/segment |
| EDSS125 | 5" / 125mm | 7/8" 22.23mm | #40/45 | 1.4mm | continuous/segment |
| EDSS150 | 6" / 150mm | 7/8" 22.23mm | #40/45 | 1.4mm | continuous/segment |
| EDSS180 | 7" / 180mm | 7/8" 22.23mm | #40/45 | 1.6mm | continuous/segment |
| EDSS230 | 9" / 230mm | 7/8" 22.23mm | #40/45 | 1.6mm | continuous/segment |
Advantages
By electroplating the diamonds to the saw blade, the blade can be thinner, resulting in faster, safer, and chip-free cutting of fragile materials. High quality electroplating provides long life and smooth cuts with increased speed and ease, shorten the cutting time, thereby reducing the cost, which saves money and material.
Continuous rim diamond blades provide a smooth and chip free cut.
Segmented blades have a gullet between the segments to keep the blade cool and to clear the cutting debris.FAQ
Q1: We need samples, could u please send us sample?
A1: We can send u samples when you request, and u will be appreciated u pay the charge for the express.
Q2: Could you quote the latest price to us?
A2: In order to reply u asap, please provide the following information before we quote price:
1.What size will you need?
2.Which color will you want ?
3. What's the quantity will u want?
Q3:What's the Delivery time, and payment terms?
A3: 1. Delivery time:15-20 days after receiving T/T 30% payment deposit
2. Payment Term: T/T 30% as deposit, T/T 70% before shipment.
Any question, please don't hesitate to let me know.
