| Price: | US $ 0.5-7/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | 15DN0304 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tooth Thickness: | 2/3mm |
| Arbor Hole: | 16/22.23/M14 |
| Segment Height: | 10mm |
| Abrasive: | Diamond |
| Hardness: | Hard, Medium, Soft |
| Segment Type: | Single Row/ Double Row/ Turbo Type/ Other Shapes |
| Application: | for Grinding Concrete |
| Technology: | Welded/ Sintered |
| Connection: | M14 or 5/8"-11 Thread |
| Kind: | Diamond Wheel |
| Manufacturing Arts: | Electroplating |
| Usage: | Stone Cutting, Abrasive and Carving |
| Brand: | Dm |
| Saw Blade External Diameter: | 100-230mm |
| Specification: | 4''-14'' |
| Customized: | Customized |
Description of diamond grinding wheel:
1 Diamond grinding wheels are mainly used for grinding and polishing removal, deburring, chamfering, smoothing and shaping stone products such as Granite ,Marble, Sandstone, Limestone, etc aggressively material smooth finish.Also Ideal for Grinding Concrete Porcelain tiles, masonry, artificial stone surfaces as well as stock removal.
A double row of diamonds rims on these blades provides for heavy material removal and provides longer life.
2.Including single row,double row and turbo styles.
3. Fast cutting with minimal dust ,used dry or wet grinding.
4.High working efficiency and using easily .
5.Convenient installation with universal connection.
6.Low-noise,no-dust,friendly surroundings,safety operation.
7.long working life and hardness
8.We can make the customers' logo.
Product Information
| Products:Turbo Row Diamond Cup Grinding Wheel | |||||
| Item Number:15DN0303 | |||||
| Description:*For general purposes to wet grinding concrete, granite, marble, stone, etc. | |||||
| Item Number | Diameter | Iner diameter | Size of segment | ||
| Inches | MM | Inches | MM | ||
| CF09001 | 4" | 100 | 7/8" | 22.23 | 100×20×4.5/7 |
| CF09002 | 4.125" | 105 | 7/8" | 22.23 | 105×20×4.5/7 |
| CF09003 | 4.5" | 115 | 7/8" | 22.23 | 115×20×4.5/7 |
| CF09004 | 5" | 125 | 7/8" | 22.23 | 125×20×4.5/7 |
| CF09005 | 6" | 150 | 7/8" | 22.23 | 150×20×4.5/7 |
| CF09006 | 7" | 180 | 7/8" | 22.23 | 180×20×4.5/7 |

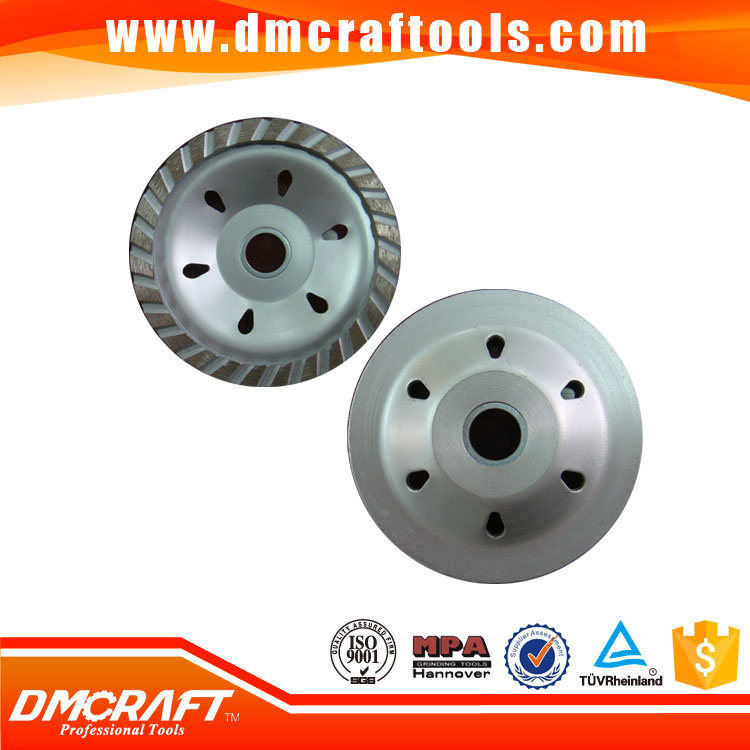

Product Picture

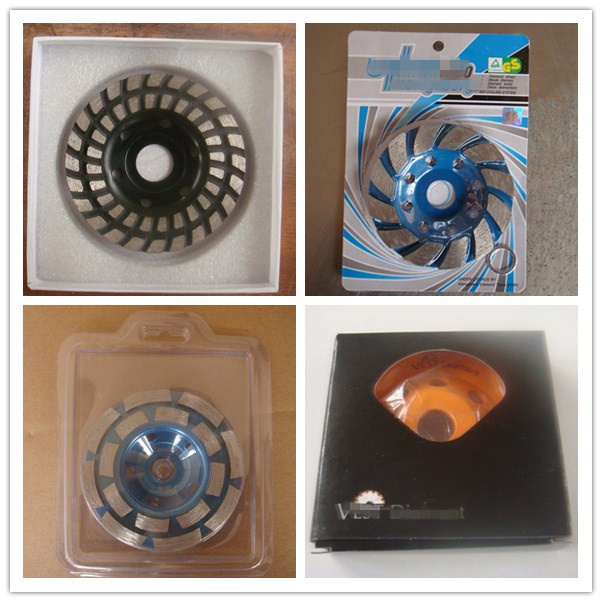

Packing :
Every Diamond Grinding Cup Wheel in Double Blister or Inner Colour Box firstly ,then severals in a carton , several cartons in a pallet.
Shipping:
1. TNT/FedEx/DHL/UPS for samples or under 45KG wegight goods , Door to Door.
2. By Air or by Sea for batch goods,from airport(seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7days for samples; 2-3.5 weeks for batch goods.

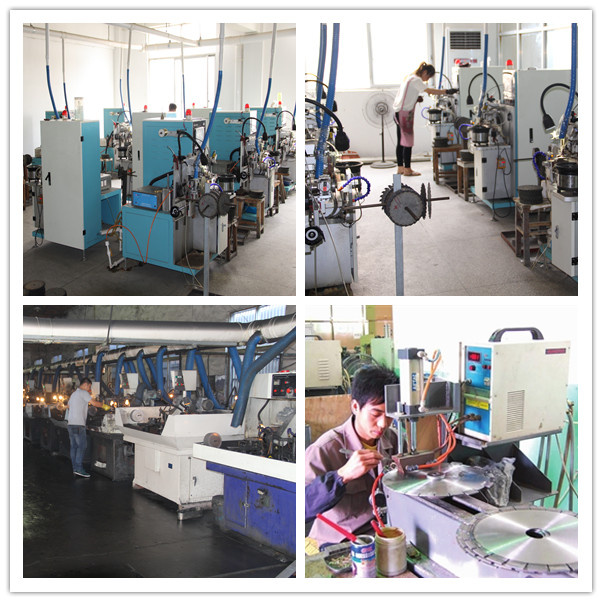

Our company
1) We're a direct manufacturer and 100% export to worldwide(USA, Isrel, Jordan, Iran, Thailand,Duabai, South Africa, Kenya, Egypt, Australia, UK, Spain, Brazil, etc)
2) We have around 15 years producing experience.
3) Our diamond product:laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products ect.
4) Above 95% customers will place a formal order after testing the samples.
