EMT-300c Battery Powered Hydraulic Crimping Tool
| Price: |
US $ 650-700/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
EMT-300C |
| Model No.: |
EMT-300c |
| Output: |
12 T |
| RAM Stroke: |
30 mm |
| Crimping Dies (mm2): |
16 25 35 50 70 95 120 150 185 240 300 |
| Battery: |
18V 3ah |
| Charging Time: |
2 Hours |
| Package: |
Plastic Case |
| Standard Accessories: |
2 Battery 1 Charger 1 Shoulder Strap |
| Dimension: |
420*77*350 |
| Weight: |
7.0kgs |
Product Description
Product Description

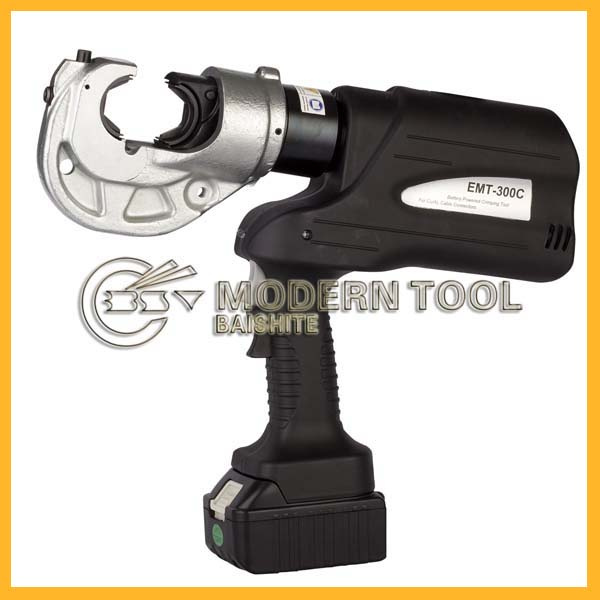

The EMT-300C is a battery powered hydraulic crimping tool .
Capable of crimping Cu/AL Cable connectors.
And lugs for cable connection and termination job, designed with :
C-shape Rotatable Head
Pistol Type Tool Body
Manual Retract Button
Auto-Retract Function
Energy saving function
Quick Motor Stop Function
Ram Hold Position Function
Powerful Motor
18V Li-ion Battery
LED illumination and indicator
FEATURES:
With C-shape head, cable can be directly placed between dies
Pistol Type Tool Body design for better balance and easy handling
Two button control concept foreasy operation by one hand
Manually retract ram in case of need
Automatically fully retract ram and stop motor when complete crimp
Quickly stop motor for safety when release trigger switch
Ram can hold position when release switch& can be partially retracted
Powerful motor ensure quick crimp
Li-ion batterywith high capacity and require short charging time
LED illuminate work area & indicate battery capacity, working condition
| 1 | Output: 12T Ram Stroke: 30mm |
| 2 | Li-ion Battery: 18V Battery Capacity: 3Ah Charging Time: 2 Hours |
| 3 | Crimping Dies: 16 25 35 50 70 95 120 150 185 240 300 (mm2) |
| 4 | C-Shape Tool Head design allow operator directly place cable between dies
Do not need to remove locking bolt or open tool head |
| 5 | Pistol Tool Body design for better balance and easy handling |
| 6 | Automatically release pressure and retract ram when complete crimping |
| 7 | Immediately stop motor and do not retract ram when release switch during operation |
| 8 | With manual retract button, manually retract ram in case of emergency or error |
| 9 | LED illumination for easier operation in dark place, LED indicator let
Operator charge battery in time |
| 10 | Powerful motor ensure sufficient working force |
| 11 | High-performance battery allow longer working times by one charge |
