| Price: | US $ 580-659/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | EMT-300F |
|---|---|
| Model No.: | EMT-300f |
| Crimping Capacity: | 16-300mm2 |
| Crimping Dies: | 16 25 35 50 70 95 120 150 185 240 300 |
| Output: | 6.7t |
| RAM Stroke: | 16mm |
| Battery: | Li-ion 18V 3ah |
| Charging Time: | 2 Hours |
| Standard Accessories: | 1 Charger 2 Battery 1 Shoulder Strap |
| Package: | Plastic Carrying Case |
| Weight: | 5.3kgs |

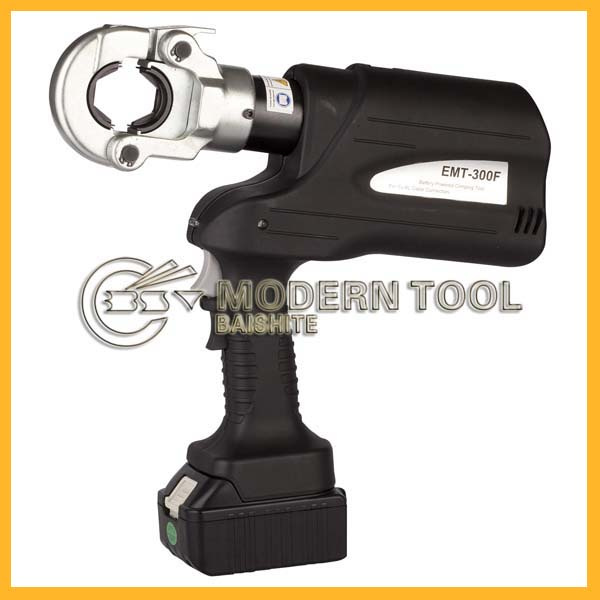

The EMT-300F is a battery powered hydraulic crimping tool.Capable of
crimping Cu / AL Cable connectors and lugs for cable connection and
termination job, designed with:
Flip-top Latch Rotatable Head Pistol Type Tool Body
TriggerSwitch
Manual Retract Button
Auto-Retract Function
Energy saving function
Quick Motor Stop Function
Ram Hold Position Function
Powerful Motor
18V Li-Ion Battery
LED illumination and indicator
FEATURES:
Rotatable Head can be opened for easy cable placement
Pistol Type Tool Body design for betterbalanceandeasyhandling
Two button control concept for easy operation by one hand
Manually retract ram in case of need
Automaticallyfully retract ram and stop motorwhen complete crimp
Quickly stop motorforsafety when release trigger switch
Ram can hold position when release switch & can be partially retracted
Powerful motor ensure quickcrimp
Li-ion battery with high capacity and require shortcharging time
LED illuminate work area & indicate battery capacity, working condition
| 1 | Output: 6.7T Ram Stroke: 16mm |
| 2 | Crimping Dies: 16 25 35 50 70 95 120 150 185 240 300 (mm2) |
| 3 | Battery: Li-ion 18V 3Ah Charging Time: 2 Hours |
| 4 | Latch Type Head can be easily opened for quick die installation and cable insertion |
| 5 | Interchangeable dies ensure precise crimping for cable in different size |
| 6 | Pistol Tool Body design for better balance |
| 7 | Powerful motor provide sufficient working force |
| 8 | High-performance Li-ion battery ensure long working time per charge |
| 9 | Quick speed hydraulic system ensure quick dies movement with ram advancement |
| 10 | With safety valve, automatically retract ram when complete crimping |
| 11 | With manual retract button, die can be returned at any time during operation for necessary adjustment |
| 12 | White LED illuminate dark working area and can remain light for 4 seconds after release switch |
| 13 | Red LED indicate the working condition of tool and battery |
| 14 | Plastic case package for easy carrying and storage |
| 15 | Shoulder strap ensure easy handling for overhead working |
