| Prod Model: |
EN877 |
| Coating: |
Epoxy Painting More Than 120um |
| Place Of Original: |
Liaoning/Hebei/Shanxi/Shandong |
| Material: |
Cast Iron Pipe |
| Type: |
Cast Iron Pipes |
| Joint Type: |
Rigid Joint |
| Section Shape: |
Round |
| Shape: |
Round |
| Customized: |
Non-Customized |
| Usage: |
Drainage Pipe |
| Certification: |
En877 Its |
| Gasket Material: |
Coupling Connection |
Product Description
Quick Details
Place of Origin: Liaoning, China (Mainland)
Brand Name: Dinggin
Model Number: EN877
Material: Cast iron pipe
Place of original: Liaoning/Hebei/Shanxi/Shandong
Standard: EN877
Coating: Epoxy painting more than 120um
Color: Red/yellow
Application: Drainage water/Ventilation
Product name: Cast iron pipes
Factory certificate: ISO 9001
Quality control: 100% test
Brand: Epoxy coated cast iron pipe
Type: Cast iron pipe
Packaging & Delivery

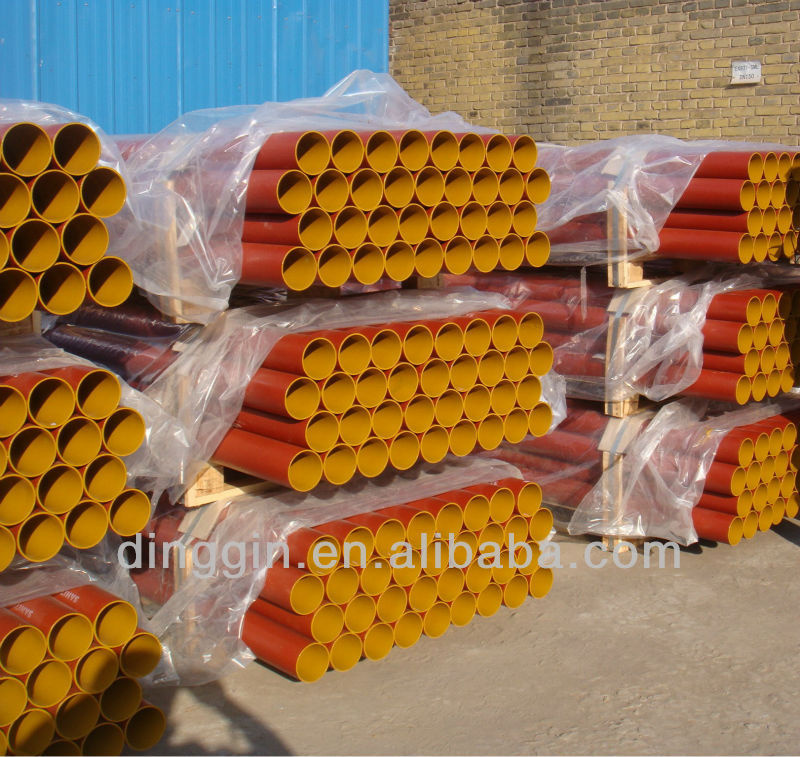

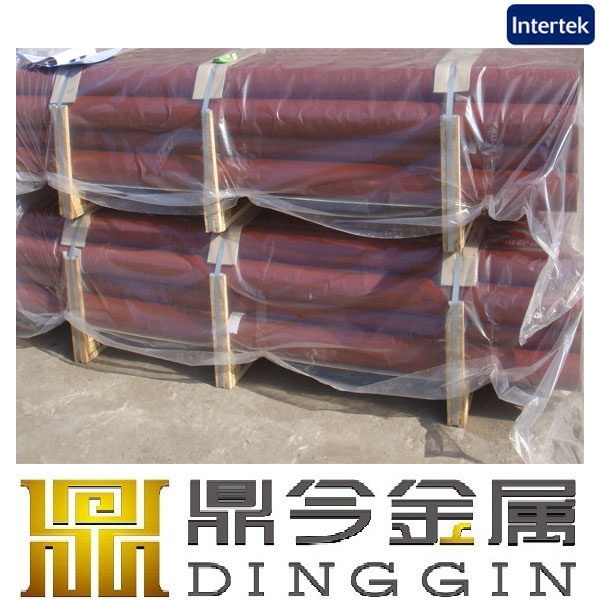

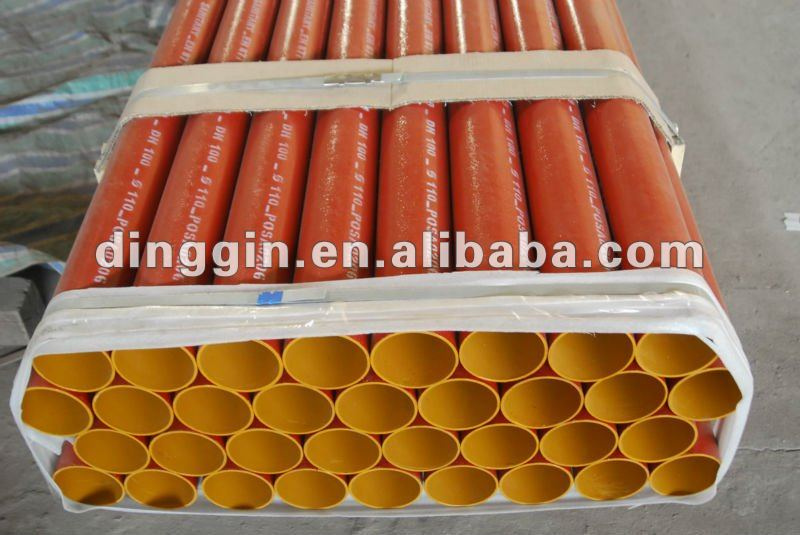

Packaging Details: Wooden pallets
Delivery Detail: 2 weeks after receiving the deposit
Detailed information
A. Our products are made strictly according to EN877 standard.
B. Size range from DN50 to DN300, with 3m/pc.
C. Painting: Inside epoxy paint in color yellow with thickness above 120 micron, outside paint in color red with thickness above 40 micron. If you have special requirement, please contact with us, as we could also make the painting according to your requirement.
D. Length/pc: 3m
E. Delivery time: 10-15 days, depend on your quantity.
F. Application: Used for waste water/rain water/ventilation.
G. Advantage: Avoid pollution, noise resistant.
H. Payment term: T/T, L/C, or D/P.
I. Minimum order: 1X40'GP.
J. Production capacity: 1500 tons/ month

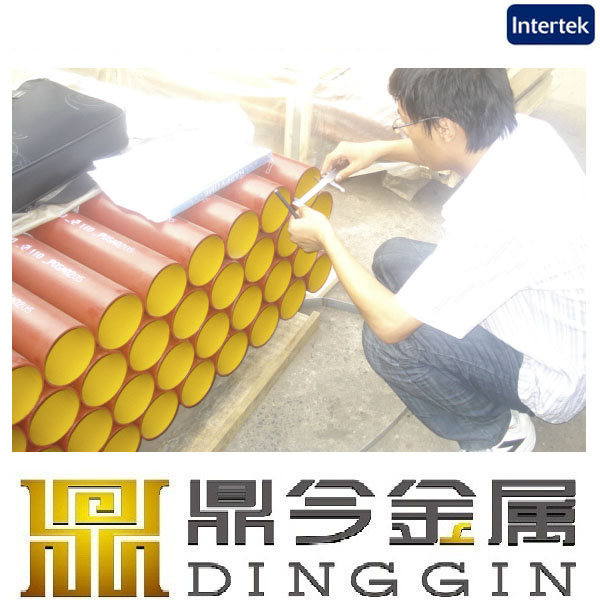

K. We could do the third party inspection at famous organizations such as SGS, BV, etc.
L. By now we have shipped our cast iron pipes to many countries such as Norway, New Zealand, the Mid East, Singapore, Hong Kong, etc.
| DN | External diameter DE(mm) | Wall thickness(mm) | Unit weight | Length |
| Nominal value | Tolerance | Nominal value | Minimum value | kg/pc | (mm) |
| 40 | 48 | +2
-1 | 3.0 | 2.5 | 12.70 | 3000+/-20 |
| 50 | 58 | 3.5 | 3.0 | 13.00 |
| 70 | 78 | 3.5 | 3.0 | 17.70 |
| 75/80 | 83 | 3.5 | 3.0 | 18.90 |
| 100 | 110 | 3.5 | 3.0 | 25.20 |
| 125 | 135 | +2
-2 | 4.0 | 3.5 | 35.40 |
| 150 | 160 | 4.0 | 3.5 | 42.20 |
| 200 | 210 | +2.5
-2.5 | 5.0 | 4.0 | 69.30 |
| 250 | 274 | 5.5 | 4.5 | 99.80 |
| 300 | 326 | 6.0 | 5.0 | 129.70 |

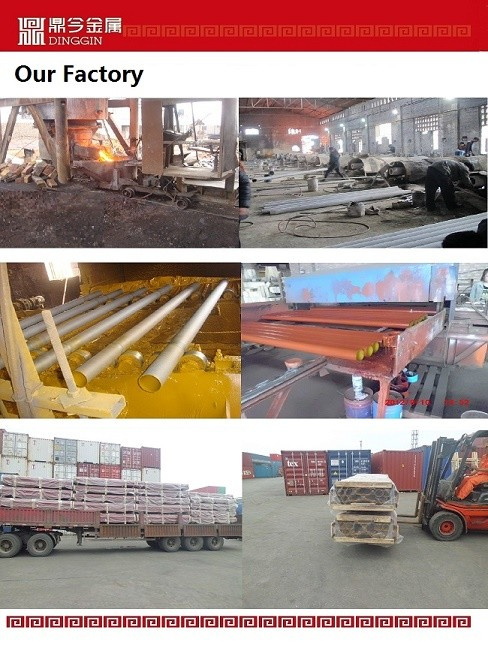

Dinggin Hardware (Dalian) Co., Ltd.Established in 1998 and came from Good Pipe Co., Ltd.During the past decades year, we focus in the fields of ductile iron and cast iron products, cooperated factories spread over all main original places including Shanxi, Hebei, Shandong and Liaoning provinces.
In our opinion, business concern not only cargo, service, and profit, but also environment, reputation and the feeling of users.Then we target our mission at "care every drop of our life".
During the experience of business cooperation, we found our customers and end users care not only drinking and waste water, but also dangerous liquid transportation.So in year 2011 we developed our business range and set our own factory in Dalian for IBC and offshore tank manufacturing, which provide good packing solution way esp.For the dangerous liquid.This is our first step to "care every drop of our environment".
Besides that, we believe good cooperation based on invincible credit and smooth communication.There's an old Chinese saying says:One word carry nine tripods.Our company logo is the word "tripod"in Chinese, which express our core value.We have the confidence to verify the saying come true in our coming cooperation procedure.It is our second goal at "care every drop of our customer".
You have my word, you have nine tripods.
We make our most, how about you?
