| Prod Model: |
MSLEK03V |
| Usage: |
Surgery |
| Maximum Output Power: |
300W |
| Bipolar: |
Yes |
| Safety Standard: |
I-Type Bf-Type |
| Ambient Temperature Range: |
+10ºC~ +40ºC |
| Power Supply: |
220V ± 22V, 50Hz ± 1Hz |
| Operating Frequency: |
530kHz±2 |
| Overall Energy Consumption: |
≤1400va |
| Warranty: |
2 Years |
| Application Range: |
Endoscopic/ Hysteroscopy/ Anorectal/ General Surge |
| Certification: |
CE |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
| Type: |
High-Frequency Electric Knife |
Product Description

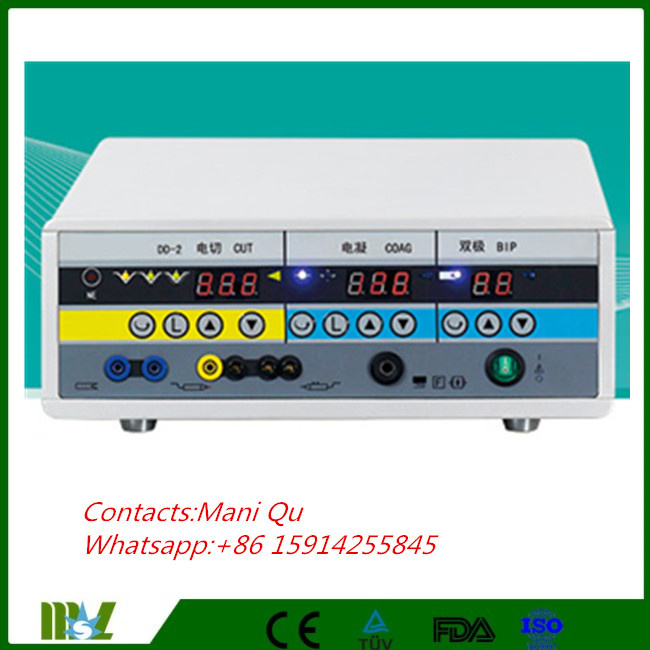

Endoscope type surgical High-Frequency Electric Knife(MSLEK03V)
Features
Maximum output power: 300W
Eight output modes: (1) pure cut, (2) mixed cut 1, (3) mixed cut 2, (4) L endoscopic cut, (5) electrocoagulation 1, (6) electrocoagulation 2, (7) L endoscopic coagulation, (8) bipolar condensate;
Electric cut mode: pure cut 100% cut, mixed cut 1 70 % cut, 30% coagulation; mixed cut 2 50 % cut, 50% coagulation; mixed cut 3 70 % cut, 30% coagulation;
Pure cut: Maximum output power 300 W, enabling easy surgery on any tissues and structures;
Mixed cut: Applicable for any tissue, good coagulation effect when conducting cutting;
L endoscopic cut: Applicable for endoscopic surgery and has an excellent coagulation effect when conducting cutting, could be used as superficial coagulation in most surgeries;
Electrocoagulation 1: Applicable for general open surgery and fine surgical point coagulation, featuring deep tissue coagulation layer and excellent coagulation effect;
Electrocoagulation 2: Applicable for general open surgery and fine surgical surface coagulation;
L endoscopic coagulation: Applicable for endoscopic surgery and has a quick contact coagulation in endoscopic surgery and other fine tissues;
Bipolar coagulation: When the tissues achieve the effect of coagulation, the output power will begin to reduce slowly to achieve good coagulation effect;
Panel operation: Overall microcomputer automatic control, two-zone (LED) digital display, key function/power,
switch/settings, waterproof panel design
Automatic adjustment: Automatically fine adjust power in a certain range to ensure the consistency of the cutting effect;
Automatic recognition: Neutral unipolar/bipolar plate automatic recognition, when using the dual-circuit plates
and the contact area less than 60%, it should automatically stop the power output and send sound-light alarm
until the contact area returns to normal, which could effectively avoid burning patients by plates.
Application range:Used in endoscopic, hysteroscopy, anorectal, general surgery, etc
Technical parameters
| Safety standard | I-type BF-type |
| Ambient temperature range | +10ºC~ +40ºC |
| Relative humidity range | 30 ~ 75% |
| Atmospheric pressure | 700~ 1060 hPa |
| Power supply | 220V ± 22V 50Hz ± 1Hz |
| Operating frequency | 530KHz±2 | Load: Monopolar cut coagulation 300Ω, Bipolar coagulation 100Ω |
| Rated output power | a) Pure cut: 1W ~ 300W(Peak voltage 1500V) | b) Mixed cut 1: 1W ~ 250W(Peak voltage 2000V) |
| c) Mixed cut 2: 1W ~ 200W(Peak voltage 2500V) | d) L endoscopic cut: 1W~ 99W(Peak voltage 3500V) |
| e) Electrocoagulation 1: 1W~120W(Peak voltage 3500V) | f) Electrocoagulation 2: 1W~100W(Peak voltage 4020V) |
| | g) L endoscopic coagulation: 1W~99W(Peak voltage 3500V) | h) Bipolar coagulation:1W ~ 70W(Peak voltage 620V) |
| Overall energy consumption | ≤1400VA | |
| Transport and storage | a) Ambient temperature range: -40ºC~ +55ºC | b) Relative humidity range: ≤93% |
| c) Atmospheric pressure range: 500hPa ~ 1060hPa | |
Standard configuration sheet
| 1 host | 2 electric knives | 5 disposable neutral plates | 1 bipolar electrocoagulation forcep |
| 1 neutral electrode connecting | 1 bipolar forceps wire | 1 power line | 1 medical foot switch |
