Ep-240f Battery Powered Hydraulic Crimping Tool
| Price: |
US $ 450-550/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
EP-240F |
| Model No.: |
Ep-240f |
| Crimping Capacity: |
16-240mm2 |
| Crimping Dies: |
16 25 35 50 70 95 120 150 185 240 |
| Output: |
5.5t |
| RAM Stroke: |
14mm |
| Battery: |
Li-ion 18V 3ah |
| Charging Time: |
2 Hours |
| Standard Accessories: |
1 Charger 2 Battery |
| Package: |
Plastic Carrying Case |
| Weight: |
3.1 Kgs |
Product Description
Product Description

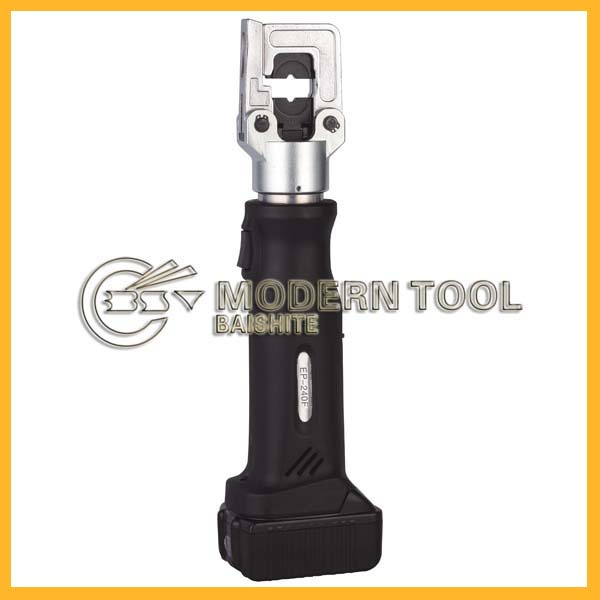

The EP-240F is a battery powered hydraulic crimping tool . Capable of crimping Cu /AL Cable connectors and lugs for cable connection and termination job,designed with:
Flip-top Latch Rotatable Head
StickType CompactTool Body
Interchangeable Crimping Dies
Trigger Switch
Auto-Retract Function
Manual Retract Button
Quick Motor Stop Function
Powerful Motor
18V Li-Ion Battery
LED illumination and indicator
FEATURES:
Flip-top Latch Head can be opened for easy insertion of cable
Stick type tool body for light weight and easy handling by one hand
Interchangeable die ensure precise crimping forcables in different size
Two button control concept for easy operation by one hand
Automatically retract ram when complete crimping
Manually retract ram in case of error or emergency
Quickly stop motor for safety when release trigger switch
Li-ion battery with high capacity and require short charging time
LED illuminate work area&indicate battery capacity, working condition
| 1 | Output: 5.5T Ram Stroke: 14mm |
| 2 | Crimping Dies: 16 25 35 50 70 95 120 150 185 240(mm2) |
| 3 | Battery: Li-ion 18V 3Ah Charging Time: 2 Hours |
| 4 | Latch Type Head can be easily opened for quick die installation
and cable insertion |
| 5 | Interchangeable dies ensure precise crimping for cable in different size |
| 6 | Stick Type Tool Body design for easy handling and light weight |
| 7 | Powerful motor provide sufficient working force |
| 8 | High-performance Li-ion battery ensure long working time per charge |
| 9 | Quick speed hydraulic system ensure quick dies movement with ram advancement |
| 10 | With safety valve, automatically retract ram when complete crimping |
| 11 | With manual retract button, die can be returned at any time during
operation for necessary adjustment |
| 12 | White LED illuminate dark working area and can remain light for
4 seconds after release switch |
| 13 | Red LED indicate the working condition of tool and battery |
| 14 | Plastic case package for easy carrying and storage |
