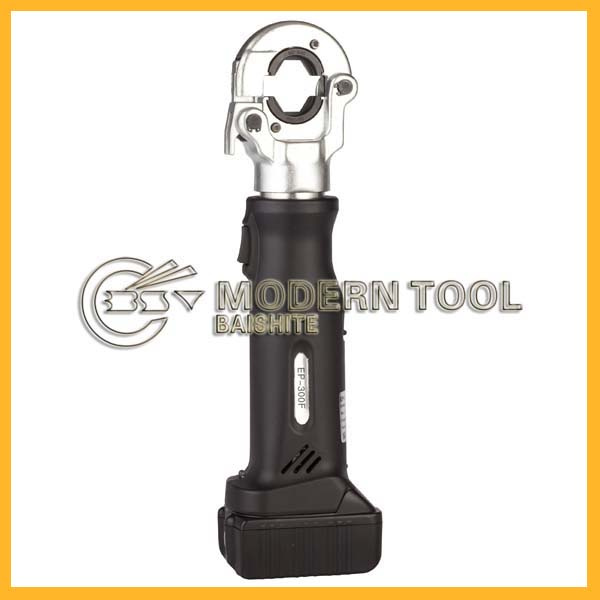

Ep-300f Battery Powered Hydraulic Crimping Tool

Ep-300f Battery Powered Hydraulic Crimping Tool
Price: US $ 450-600/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: EP-300F
Model No.: Ep-300f
Crimping Capacity: 16-300mm2
Crimping Dies: 16 25 35 50 70 95 120 150 185 240 300
Output: 5.5t
RAM Stroke: 16mm
Battery: Li-ion 18V 3ah
Charging Time: 2 Hours
Standard Accessories: 1 Charger 2 Battery
Package: Plastic Carrying Case
Weight: 3.4 Kgs

Product Description

Product Description

The EP-300F is a battery powered hydraulic crimping tool, capable of crimping Cu /AL Cable connectors andlugsforcableconnectionand termination job, designed with:

Flip-top Latch Rotatable Head StickType CompactTool Body Interchangeable Crimping Dies Trigger Switch

Manual Retract Button

Auto-Retract Function

Quick Motor Stop Function

Powerful Motor

18V Li-Ion Battery

LED illumination and indicator



FEATURES:

Rotatable Head design for flexible operation in confined place

Stick type tool body for light weight and easy handling by one hand

Interchangeable die ensure precise crimping forcables in different size

Two button control concept foreasy operation by one hand

Automatically retract ram when complete crimping

Quickly stop motor for safety if release trigger switch

Powerful motor ensure quick crimp

Li-ion battery with high capacity and require short charging time

LED illuminate work area&indicate battery capacity, working condition


1Output: 5.5T     Ram Stroke: 16mm
2Crimping Dies: 16 25 35 50 70 95 120 150 185 240 300 (mm2)
3Battery: Li-ion  18V  3Ah    Charging Time: 2 Hours
4Latch Type Head can be easily opened for quick die installation and
cable insertion
5Interchangeable dies ensure precise crimping for cable in different size
6Stick Type Tool Body design for easy handling and light weight
7Powerful motor provide sufficient working force
8High-performance Li-ion battery ensure long working time per charge
9Quick speed hydraulic system ensure quick dies movement with ram advancement
10With safety valve, automatically retract ram when complete crimping
11With manual retract button, die can be returned at any time during
operation for necessary adjustment
12White LED illuminate dark working area and can remain light for 4
seconds after release switch
13Red LED indicate the working condition of tool and battery
14Plastic case package for easy carrying and storage
We, Yuhuan Modern Tools Co., Ltd, a professional tool manufacturer, was established in 2002, officially start our business with the hydraulic crimping tool, then with the development of our factory and also in order to keep pace with the demand of our customers, we gain our own brand "BAISHITE" in our local market and extend our product range step by step to: Hydraulic cutting tool, busbar punching, bending, cutting tool, puncher, compatible hydraulic pump, hydraulic jack, Ratchet Cable cutter, mechanical crimping pliers, long-Arm cutters, all these tools can be widely used in electric construction and distribution project for cutting, crimping, lifting, to make the job easy, quick and safe.

In order to expand our production and make our company more competitive, we bid for the land, built and moved to our current factory in 2007 (Factory Address: Bingang Industrial Area Shamen Yuhuan Zhejiang China 317607), the new machines (CNC Machine, Linear Cutting Machine, Grinding Machine, Punching Machine, Heat Treatment Machine etc) are also purchase accordingly. Now, we produce tools and provide service for customers from Germany, Russia, Ukraine, UAS, Japan, Korea, Taiwan, Thailand, Singapore, Hongkong etc., relative Certificate (ISO CE) are also applied and gained. With the feedback from our customers, we also improve tools and change tools design, to make our tools more qualified and meet the changing demand of the target market. Now, we officially add the battery powered tools (crimping, cutting, punching) in our products range, to aim to the high-level market.

Considering the potential of Plumbing tools in Australia, Brazil, Germany, Russia and also our domestic market, based on our current tools, we also start to design and produce crimping tools, pressing tool, expanding tools for PEX pipe, Multi-layer Composite Pipe, Stainless Steel Pipe and Copper Pipe in hydraulic, Mechanical and battery powered style. Thanks to the contribution of our workers and the support our customers, these brand new pluming tools also get positive market feedback.

Keep improving current tools, Never Stop designing New tools for new application, we are confident that we'll make our factory more competitive with more qualified tools and better service
