| Prod Model: |
DGH-49 |
| Displacement: |
49.3cc |
| Impact Number: |
770--1500min-1 |
| Oil Box: |
1.2 L |
| Impact Energy: |
20~55J |
| Max. Power & Speed: |
3.5HP, 7000r/min |
| Max.Torque&Speed: |
2.5N.m / 5000rpm |
| Noise: |
below 104dB(A) |
| Speed: |
3000~7000r/min |
Product Description

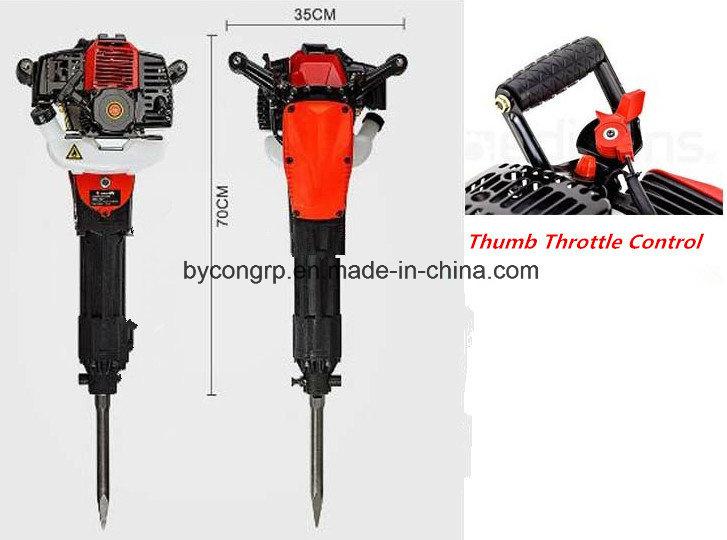

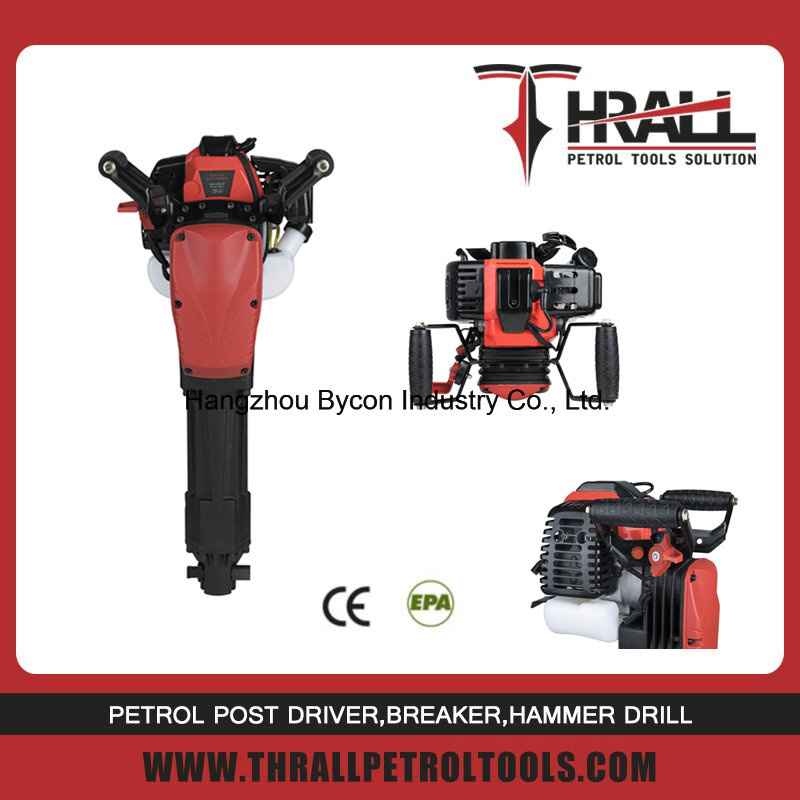

DGH-49 49CC portable petrol jack hammer for rock drilling
Specification:| Art Number | 1202049 |
| Displacement | 49.3CC Single cylinder,air cooling, 2 stroke |
| Impact Number | 770--1500min-1 |
| Oil box | 1.2 L |
| Impact energy | 20~55J |
| Speed | 3000~7000 r/min |
| Mixture ratio | 25/1 |
| Specific fuel | ≤500g/kw.h |
| Max. Power & speed | 1.25KW, 7000r/min |
| Max. Power | 3.5HP |
| Max.Torque&Speed | 2.5N.m / 5000rpm |
| Noise | ≤104dB(A) |
| Package | 875x385x475 mm |
Features: 1. 1.2liter fuel tank makes the engine performance and machine ratio better
2. The suction of the hose allows the carburetor to provide air and gasoline better
3. The throttle button controls the amount of oil per minute on-demand
4.. The machine can be stopped immediately when necessary by the positioning button
5. The double V-shaped handle design makes the vibration rate reduced by 40%
6. To facilitate the installation of a variety of drilling bits due to forged metal bit housing.Application:Bycon gasoline breaker is suitable for different kinds of situation ,such as crashing
project in road-building, electricity, telecommunications and cable ditch embedded.

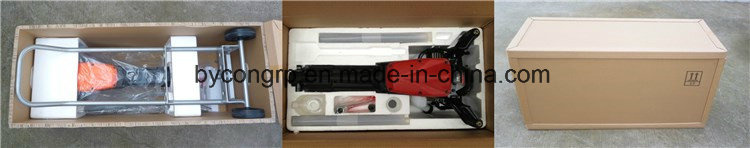

Packing & Shipping:
