| Prod Model: |
BDH-A07 |
| Finish: |
OEM |
| Material: |
Metal |
| Frame Material: |
Steel |
| Roller Material: |
Steel |
| Stretch Elongation: |
Whole |
| Splittable: |
Splittable |
| Warranty: |
5 Year |
| Usage: |
Door |
| Type: |
Roller Wheel |
Product Description
Model number: BDH-A07
Material: Carbon steel
Surface finish:black/dark coffee powder coating or other color as required
Load bearing: 175kgs
Application: interior/exterior wooden doors for living room/store room/veranda/laundry.etc
Single/double open wooden door
Rail/track length: 2m/79" standard or as customized
Door thickness : 1 3/8" --1 5/8" (35-45MM)
Door width:31 1/2" --39 3/8"
Packing:2055*115*80/set
Warranty: 3--5years
Track length&door width Match: 1500mm track--under 750mm door
1800mm track--under 900mm door
2000mm track--800-1000mm door
3000mm track(1500+1500)--1500mm door

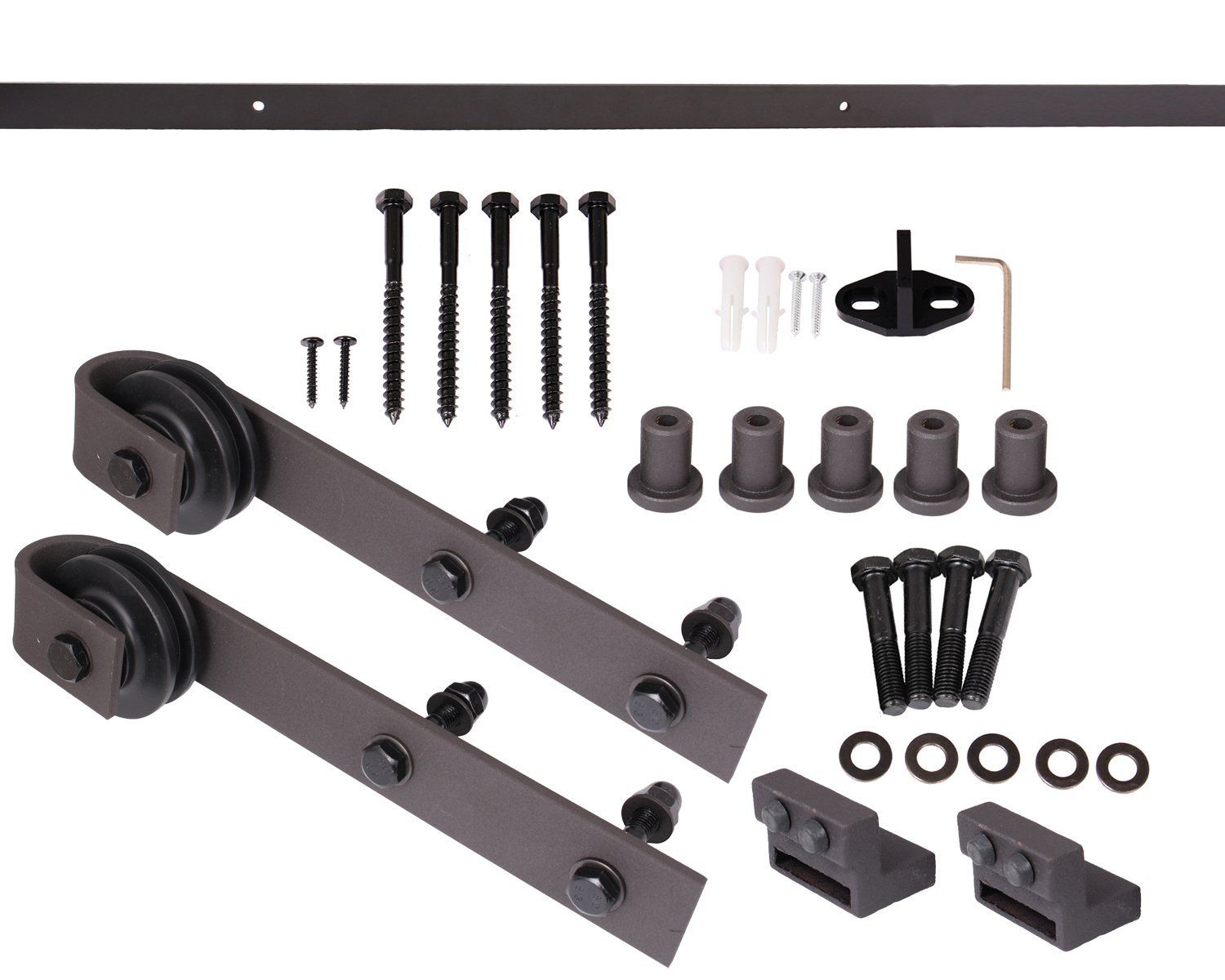

1 set include:
Door stopx2,sliding trackx1, wall mountx5,sliding rollerx2,bottom guidex1,door handle(selective)x1, anti-jump diskx1
| ITEM | Qty | Material&Surface
|
| Sliding Track(Length can be customized.) | 1*2mm | Carbon Steel +black powder coating / painting |
| Sliding Rollers | 2 | Carbon Steel +black powder coating / painting |
| Door Stops | 2 | Carbon Steel +black powder coating / painting |
| Wall Mounts &Screws | 5 | Carbon Steel +black powder coating / painting |
| Anti-Jump Disks | 2 | POM |
| Floor Guide | 1 | POM |
| Door Handle(not included in the kit) | 1 | Carbon Steel +black powder coating / painting |
Products Show
New door stop with damper
we already developed a new technology model,New door stop with damper, which replacing the original door stop and original Anti-jump.Technology is more advanced,the structure is more closely,we'd like to highly recommend this model to you,Pls have a try in your local market, if possible.
