| Prod Model: |
3A-300005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Version: |
for EDM Sinking Machine |
| Application: |
Testing of Concentricity and Angular Accuracy of H |
| Slot Size: |
56*56*200mm |
| Accuracy: |
0.002mm |
| OEM Logo Service: |
Avaliable |
| Note: |
with Chuck Spigots |
| Remark: |
Wrench and Collet Chuck Supply Separately |
| Net Weight: |
3.48kg |
| Advantage: |
X.Y.Z Axis Precise Adjustment |
Product Description

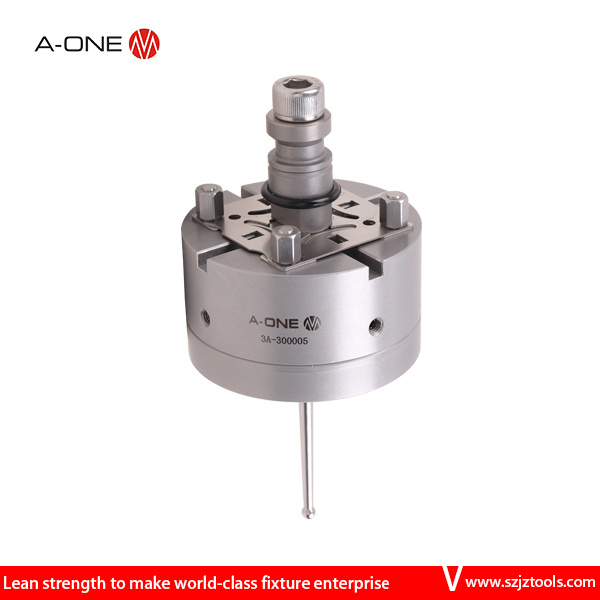

EROWA stainless steel sensor for EDM measureing workpiece 3A-300005
Detailed description:
1. Version: The sensor ball 5mm, fixed type.
2. Automatic measurement of workpiece in CNC or EDM sinking centers.
3. Can be used on EDM/wedm for precision machine.
Our products advantage:
Fast: Clamping in seconds. The way of clamp traditional manual lock clamp greatly reduce manual work and save time.
Save: Save aligment of processing suitable for variety and special workpiece processing achieve free preset and detection on outside.
Precision: Unique standard interface precision repeat locating.
Our company advantage:
The company has the advanced production facility such as JUNG form
Grinding machine and ELB highprecision surface grinding machine of Germany, MOORE jig grinding
Machine of USA, internal and external grinding machine and thread grindingmachine of Switzerland, and
OKUMA machining center andTSUGAMI numerical controlmachine of Japan.
Delivery time:
1-3days for sample order, 3-7days for official order
Why choose us?
1. The lowest production cost.
2. Flexible production plan.
3. Better quality production
If you interested our products, please feel free to contact me
Mobile: +8618038003166
| material | stainless steel.hardened |
| version | 5mm,fixed type. |
| application | automatic measurement of workpiece in CNC or EDM sinking centers. |
| repeatition accuracy | 0.002mm |
Shenzhen Jingzuan Precision Hardware & Tools Co. Ltd was established in 2000 and specialized in designing, manufacturing and sales of 3A fast positioning JIG system, zero point system, ball lock shaft system and all kinds of un-standard JIG, numerical control machine collet chuck, guide sleeve, and etc machine tool accessories. Shenzhen company covers an area of 3, 000 square meters.
The company has the advanced production facility introduced from Germany, Switzerland, the USA and Japan, such as JUNG form grinding machine and ELB high-precision surface grinding machine of Germany, MOORE jig grinding machine of USA, internal and external grinding machine and thread grinding machine of Switzerland, and OKUMA machining center and TSUGAMI numerical control machine of Japan. The company established constant-temperature grinding room of 20± 0.5º C and high-precision constant temperature measuring center, and introduced high-precision measuring equipment, such as German ZEISS coordinate measuring machine, NIKON V-16A projector, ZEISS tool microscope and TESA MICRO-HITE altimeter. The stable quality and high cost performance ratio are highly appreciated by domestic and overseas customers.
Our comapny fully implemented ISO 9001 quality management system and is a great asset to highquality products of the company.
