| Prod Model: |
5mm-62mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| E.Gal European D Type Shackle: |
5mm-50mm |
| Bow Shackle: |
5mm-60mm |
| Trawling Shackle: |
5mm-50mm |
| Us Type Forged D Shackle: |
3/16"-2 3/4" |
| JIS D Shackle: |
5mm-50mm |
| JIS Bow Shackle: |
5mm-50mm |
| Kenter Shackle: |
10mm-160mm |
| Anchor Shackle: |
8mm-72mm |
| Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
| Shape: |
D Type, Bow Type |
| Usage: |
Rigging Hardware, Marine Hardware |
| Color: |
Any Colour According Customers Request |
Product Description
1. Product Description:

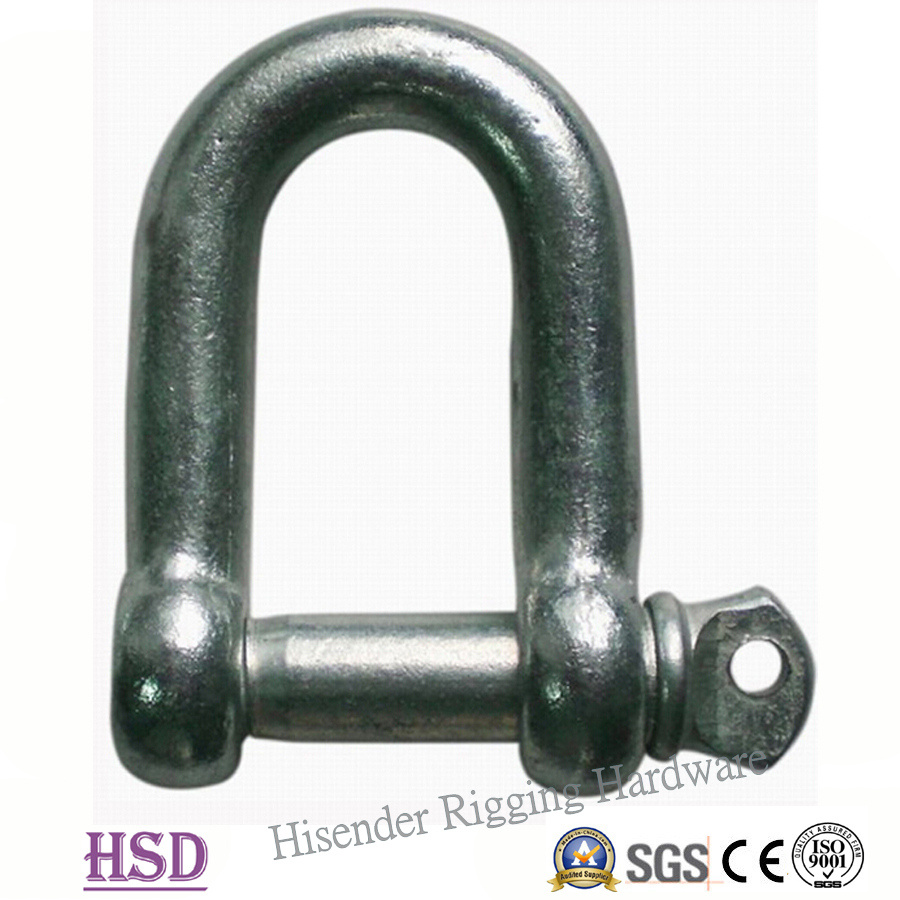

Model No.: self color European Trawling with Square Head Screw Pin Shackle.
Material: 45# steel /Q235/Alloy Steel.
Surface: Galvanized/ cself color.
Packing: gunny bag /carton+ iron pallet/wooden pallet.
| SWL | D | d | a | c | b | Weight per 100 pcs |
|
| kg | mm | mm | mm | mm | mm | kg |
| 80 | 5 | 5 | 10 | 19 | 11 | 1.9 |
| 100 | 6 | 6 | 13 | 25 | 14 | 3.4 |
| 200 | 8 | 8 | 16 | 32 | 18 | 7 |
| 320 | 10 | 10 | 19 | 38 | 20 | 13 |
| 520 | 12 | 12 | 25 | 51 | 26 | 24 |
| 800 | 16 | 16 | 32 | 64 | 33 | 50 |
| 1100 | 20 | 20 | 38 | 76 | 40 | 80 |
| 1500 | 22 | 22 | 44 | 89 | 50 | 130 |
| 2100 | 25 | 25 | 51 | 100 | 57 | 200 |
| 3000 | 28 | 28 | 57 | 115 | 68 | 300 |
| 3500 | 32 | 32 | 64 | 127 | 73 | 430 |
| 5000 | 38 | 38 | 76 | 152 | 85 | 675 |
| 7000 | 45 | 45 | 90 | 180 | 96 | 1250 |
| 8000 | 50 | 50 | 102 | 200 | 108 | 1750
|
2.Quality Assurance:
Manufacture & Export :
We are professional Manufacturer & Exporter of kinds of shackles from 2002 .
Specilizing in Manufacturing :
European type, US Type, jis type , DIN8210 Type shackle .
Mainly export to :
European countries, USA, Canada, Australia, Japan Korea,Singapore and so on.
Capacity :
We have our own factory and we can control every step ourseves .
3.Service Assurance :
Free Samples for provided if needed .
Accepting Designated Inspections if needed .
All enquiry can be reply in 4 hours .
Waiting for our pleasure cooperations.
Qingdao Hisender Rigging Hardware Co., Ltd. is a large enterprise focused on the supply of rigging hardware, located in Shan Dong Province and has manufacturing capability.
We are professional manufacturer & exporter of rigging hardware (steel wire rope accessories and chain fittings)such as shackles, wire rope clips, thimbles, turnbuckle, hooks, links, nuts, load binder, chain and wire rope. Also we have good experience and capability to develop new products according to customer's drawings or samples, including foreged, punched and casting products.
Manufacturing Capability
We have facilities using the latest advanced technology and professional equipment sourced from Switzerland, Germany and America, so we could also develop new products according to the customers'drawings and samples. We use the latest in-process controls and inspect all the products to guarantee the high-quality of the products.
Development Prospect
We have exported our products all over the word including European, America, Japan, Korea, Australia, the Middle East and Southeast Asia. Our basic business guide line is honest, quality and reliability. Welcome to visit our company and factory in the near future. We are always trying the best to supply you the most competitive price, the best quality and service.
Sales
Our products are popular in the world Market.
We mainly export: European countries, USA, Japan, Korea, Australia, Singapore, Africa, Canada, Middle East and southeast of Asia.
We sincrely hope to establish pleasure cooperations with customers all over the world.
Free samples can post for check and test if needed.
Give us a chance, we will do it better!
