| Prod Model: |
EX512 |
| Frequency Response: |
65Hz-18kHz |
| Channel: |
2(2.0) |
| Application: |
Computer, Home Theatre, Por |
| Rated Power: |
40W |
| Impedance: |
4ohm |
| Max Spl: |
98dB |
| Power Supply: |
DC12V/3A |
| Sensitivity (1W/1m): |
98dB |
| Amplification Type: |
Active |
| Speaker Material: |
Wood |
| Usage: |
Radio |
| Adjusting Method: |
Touch-Control |
| Sound Channel: |
2 |
| Structure: |
Closed Enclosure |
Product Description

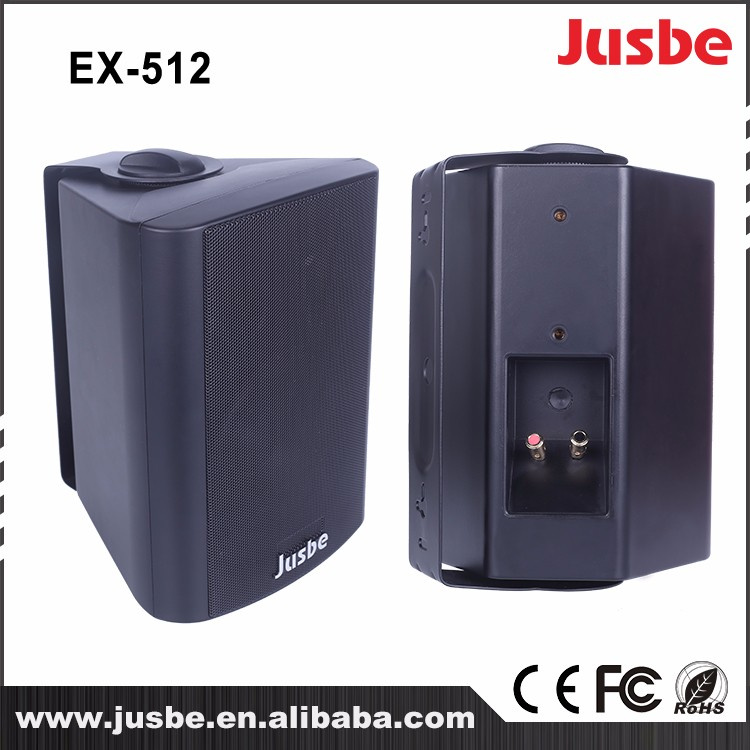

Ex512 Pro Audio OEM 40W 5inch Powered Speakers
Warranty:
1) 12 months warranty after delivery.
2) Professional after-sales department to provide 24*7 technical support, all complaints should be replied within 24 hours.
Feature:
Two-way design;
Injection molding forming enclosure made of ABS material,which is not easy to lose color and prolong the service life as well as to make the appearance design looks elegant, compact and artistic;

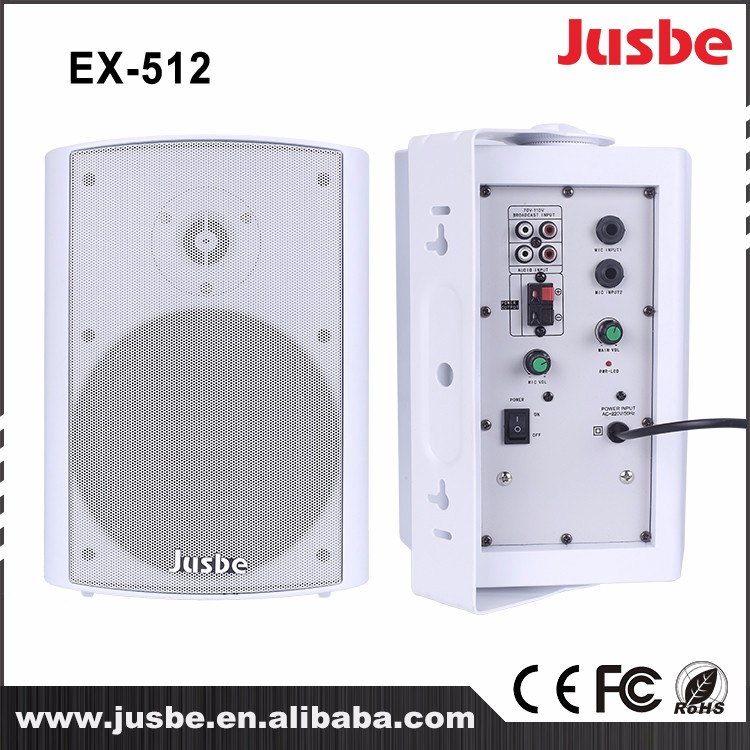

Built-in one channel broadcast priority interface, automatically switches when there is a broadcast signal;One channel stereo RCA input, two channel mic inputs coming with DC+6V;
Adjustment of mic volume and mic tone; adjustment of music volume and music tone;
Equipped with integrated U-shapped racks, speaker can rotate in 90° angle, humanized design, adopts fixed button, to be easily controlled by you which is simple and convenient.
| Model NO. | EX-512 | EX-602 |
| Rated power | 40w | 60w |
| Impedance | 4ohm |
| Working temperature | -20~75 |
| Frequence response | 60Hz-18KHz |

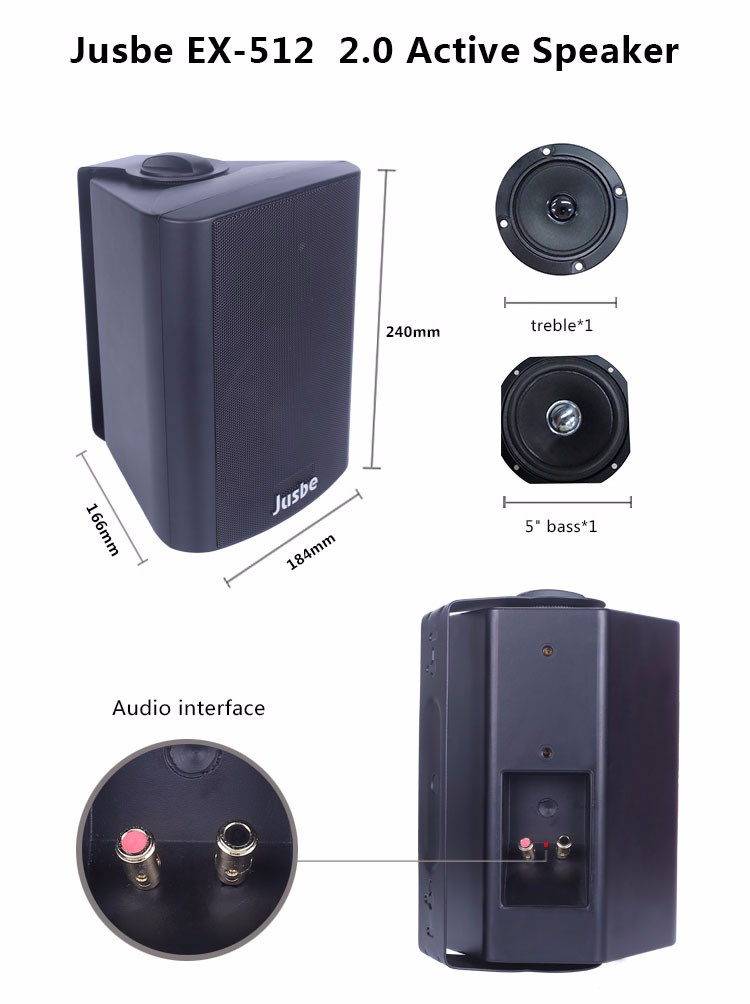

| Driver | 5-inch bass *1, treble*1 | 6.5-inch bass, 1.5-inch treble |
| Interface | 1 broadcast input (70V - 110V input), 1 stereo RCA, 2 microphone circuit interfaces |
| Sensitivity | 86dB/1W/1M | 85dB/1W/1M |
| SNR | 75dB |
| Max SPL | 98dB | 100dB |
| Divider | 1.8KHz |
| Cabinet Type | bass reflex |
| Color | Black (pearl white ) |
| Material | ABS plastic,steel mesh |
| Installation | Standard wall racks |
| Product Size(mm/set ) | 184*166*240 | 215*193*290 |
| Net weight | 8.3kg |
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
Guangzhou Jusbe Electronics Technology Co. Ltd. was established in 2002. For 14 years, we have been dedicated in the field of Professional audio system industry. As the solution supplier and manufacturer of Audio system, we're using artificial intelligence to change the world step by step: Amplifier, speakers, microphone, line array series, peripheral equipment, mixer...
Our factory covers 10 thousand square meters, including 2 main workshop(professional audio products workshop, teaching audio products workshop) and accessory workshop. In order to provide our clients with high performance products in competitive price, we import ISO9001 Quality Management System, ISO14000 Environment Management System and SRRC System to our factory. What's more, there're nearly 300 marketing staff, 30 branches all over the country.
In order to meet the global trend, our brand Jusbe has been registrated in USA, Hongkong. In the meantime, we have built strategic relationship with 20 excellent global partners.
It's rarely to find such a manufacturing basement of large scale and multiple systems. Relying on 15 major series and more than 1000 products, we're confidence to provide our clients from various area with complete and individual solution. For now, it's proud to say that we have 100 thousand successful cases worldwide and our clients're satisfied with them.

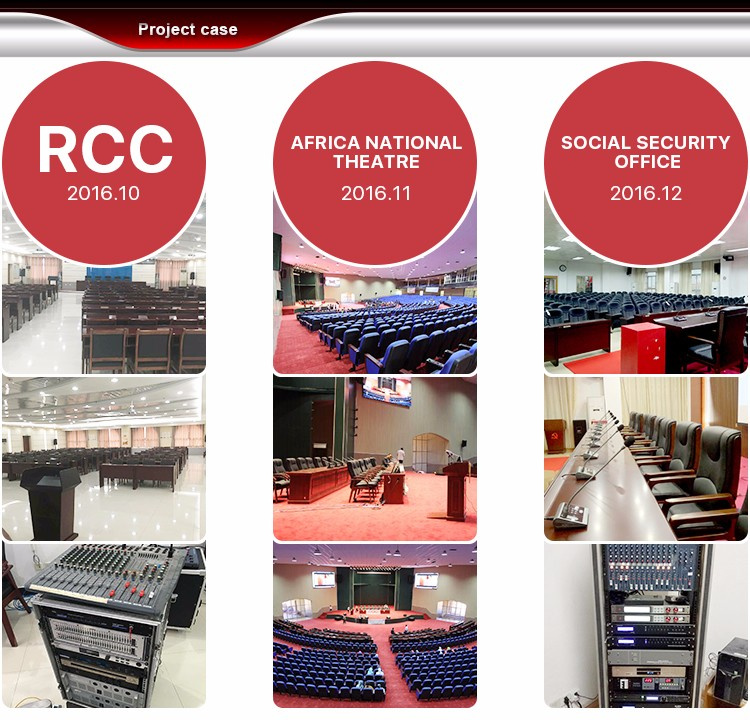

Our products have been applied to many important events or buildings, such as Google experience center, China Telecom, Guangzhou South Railway Station, Hengda Real Estate Group etc.
