| Price: | US $ 14900-15200/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | JSP40 |
|---|---|
| Color: | Green or as Customer's Request |
| Weight: | 2600kg |
| Suitable Excavtor: | 20-30 Ton |
| Oil Flow: | 155 L/Min |
| Max Turning: | 270 Degree |
| Frequency: | 2800rpm |
| Service: | OEM Service |
| Working Pressure: | 280 Bar |
| Type: | Vibratory Pile Hammer |
| Power Source: | Hydraulic System |
Advantages:
1.Hydraulic Motor driven turntable, inner gear design, effectively avoid the dirt and collision, gear is changeable, stable and reliable
2.fast conversion between driving and pulling work, less tension when pulling piles
3.Powerful hydraulic cylinder,Super durable tooth piece, add the double pressure protection device to ensure the safety
4.no damage to the bottom or top of steel plate and steel rail pile
5.No damage to the buildings even working frequently nearby
6.Silent work and short construction period, overcome environmental problems
7.Adopts original US imported hydraulic motor to guarantee the efficiency and quality
8.Adopts korean imported damping rubber block
Features:

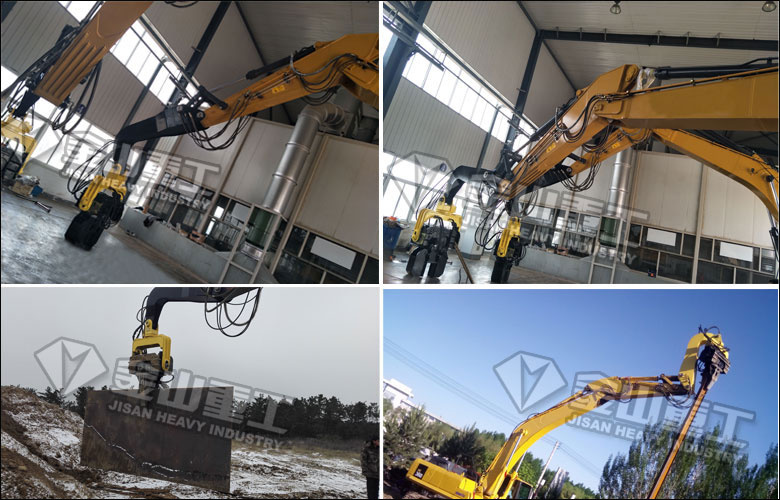

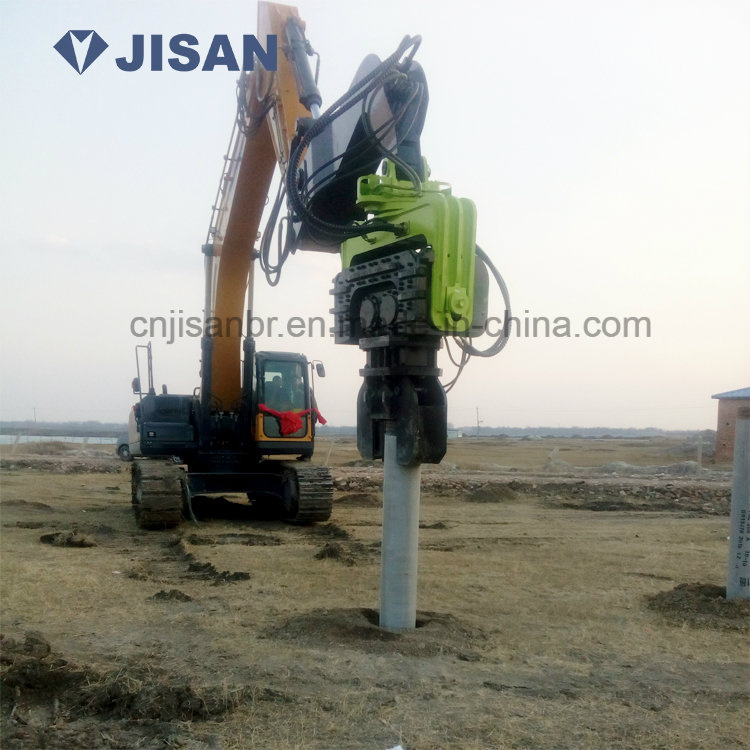

JISAN DLK series hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.
Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.
With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles, etc.
Parameters:
| Item\Model | Unit | JSP20 | JSP40 | |
| Eccentric Moment | Nm | 40 | 85 | |
| Frequency | rpm | 2800 | 2800 | |
| Centrifugal Force | KN | 300 | 570 | |
| Amplitude | mm | 6.8 | 14 | |
| Working Pressure | bar | 280 | 300 | |
| Oil Flow | L/min | 155 | 255 | |
| Max Turning | degree | 270 | 270 | |
| Weight | Main Body | kg | 2080 | 2940 |
| Extension Boom | kg | 740 | 1070 | |
| Total weight | kg | 2900 | 4100 | |
| Applicable Excavator | Ton | 20-30 | 35-50 | |

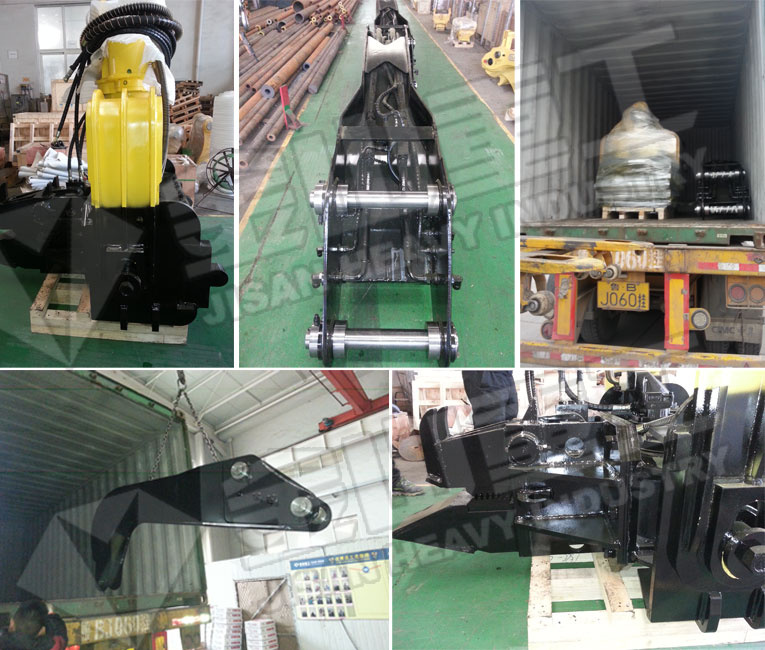

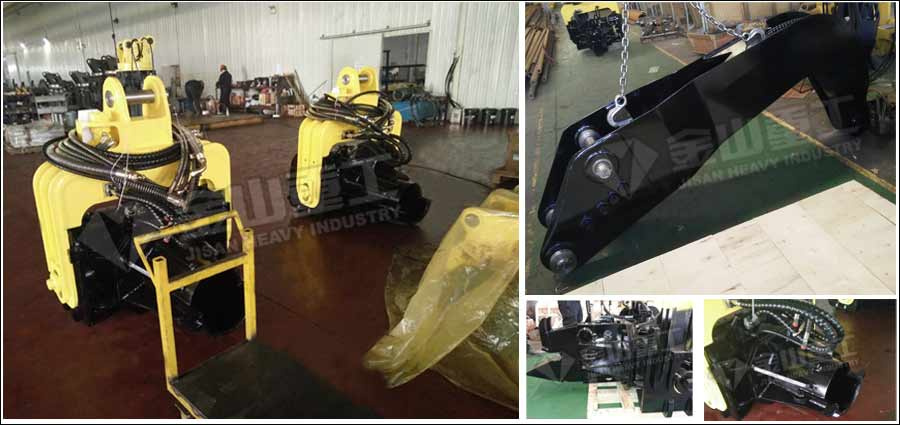

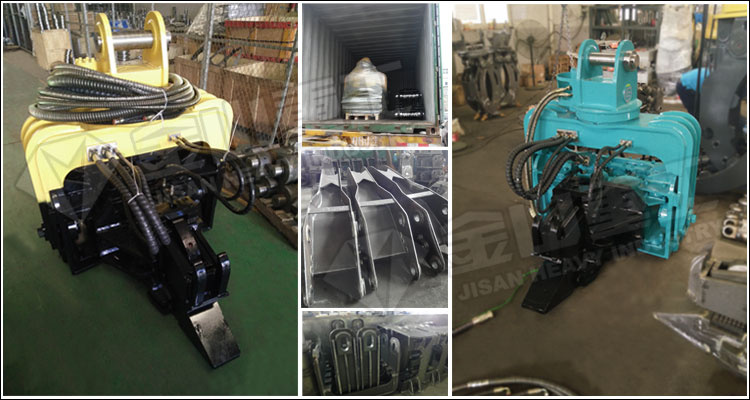

The standard set of pile hammer include:
- The body of pile driver
- Goose neck (vice arm)
- Clamp;
- Accessories.

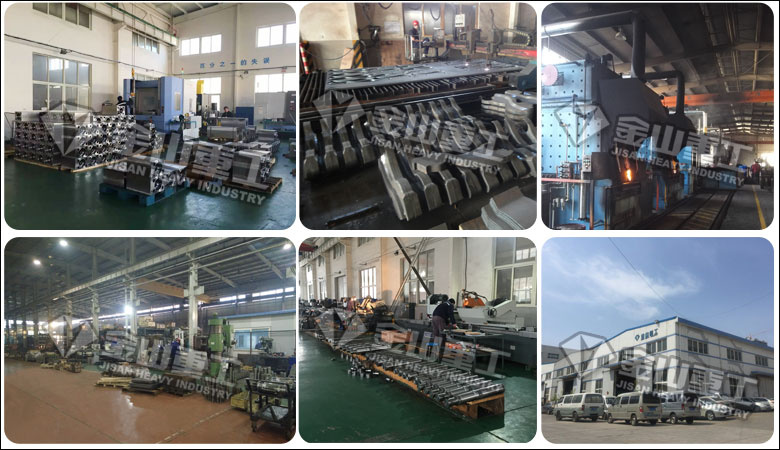

Company Introduction
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.

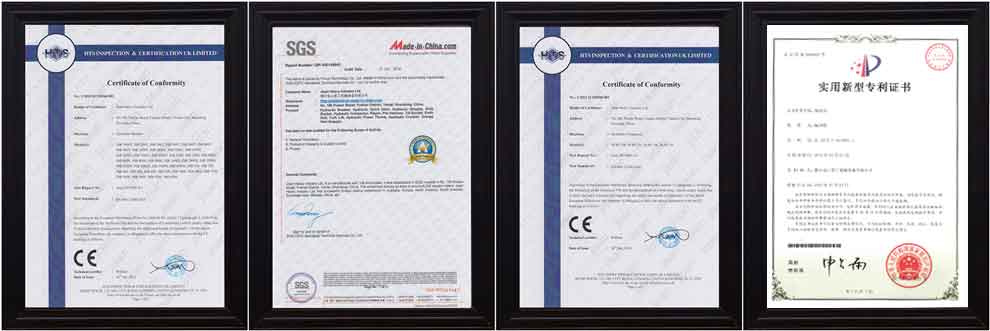

Certification
Our Service
1. 7Days *24Hours phone and email service
2. Your inquiry will be replied in 24 hours
3. Well-trained and qualified staff to answer all your questions
4. OEM Service available
5. Warranty: 14 months warranty for pile hammer, beyond the warranty period, all spare parts
offered to you with our cost price .
