Expanded Metal Mesh High Rib Formwork High Rib Mesh
| Price: |
Negotiable/Square Feet |
| Min Order: |
100/Square Feet |
| Pay Type: |
T/T |
| Prod Model: |
0.4x450x2200mm |
| Material: |
Galvanized Sheet Plate |
| Application: |
Construction Wire Mesh |
| Hole Shape: |
Diamond |
| Usage: |
Civil Building |
| Weave Characteristic: |
Stamping |
| Surface Treatment: |
Galvanized |
| Stamping Expanded Metal Mesh Category: |
Expanded Metal Mesh |
| Galvanized Surface Treatment: |
Hot-galvanize |
| Hot-galvanize Technique: |
Line Annealing |
| Specifications: |
Thickness |
| Weight: |
Middle-weight |
Product Description

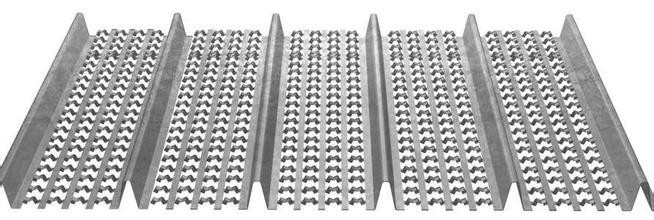

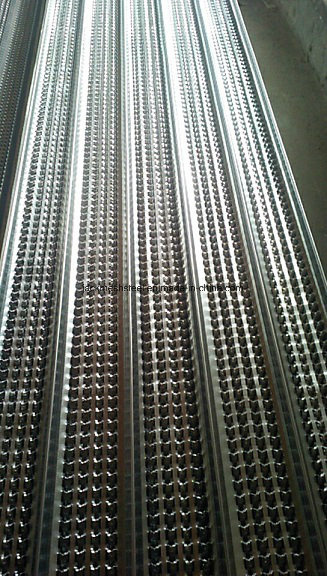

Description:High Ribbed Formwork is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in building construction to form retaining walls, columns, stop ends, construction joints and used to support slab flooring.Specifications: | Code | Rib height | Rib Distance | Thickness | Width | Length | Packing |
| MG-HR 03 | 19~20mm | 89~90mm | 0.3mm | 450mm | Free | Pallet |
| MG-HR 04 | 19~20mm | 89~90mm | 0.4mm | 450mm | Free | Pallet |
| MG-HR 05 | 19~20mm | 89~90mm | 0.5mm | 450mm | Free | Pallet |
| MG-HR 06 | 19~20mm | 89~90mm | 0.6mm | 450mm | Free | Pallet |
Anping County Xuanding Mesh Products Co., Ltd is a main producer and supplier of expanded metal, concrete reinforcement products and building accessories. We produce these products of excellent quality and various size:
High Rib Mesh
Rib Lath(Metal Rib/Stay form)
Rib lath box
Metal Lath
Coil Mesh/Brick mesh
Corner bead &Plastering accessories
Double Loop Bar tie wire
Welded Reinforcing mesh
Steel Fiber
Bar Support/Rebar Support Chair
Reinforcing concrete accessories
Established in 2001, our factory is located in the Anping County, Hebei Province, which is famous for its steel materials and mesh products; We are about 200kms from the biggest port-Tianjin port in North of China, very convenient for our exporting.
In the past years, our factory is joined by more and more workers in good technology and machinery, And after years development, we have become the leading and biggest manufacture of these products in North of China.
Based on the rich steel material in our area and our strong production ability, we can produce and supply kinds of our products in stock or after order; Looking forward to work together with more partners in building market.
