Expansion Joint Between Buildings for Bridge Construction
| Price: |
US $ 110/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
From 80mm to 1200mm |
| Certificate: |
ISO9000 |
| Steel Material: |
S355,Q345 |
| Rubber Proofing Material: |
EPDM |
Product Description
Contact information
Sales Manager: Ms Jenny Lee
Mobile Phone: +86-18678456530
Tel: 86-318-8538202
Fax: 86-0318-2210707
Website: www.zqdcrubber.com
Companies: Zaoqiang Dacheng Rubber Co.,Ltd.

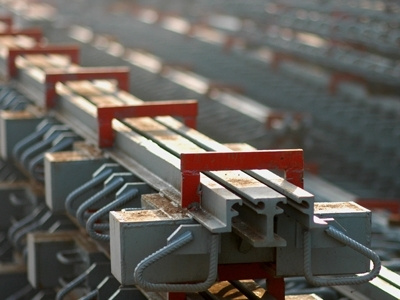

The introduction of bridge expansion joint
Structure steel type expansion joint are the most frequently employed types of expansion joints in road
bridges. By special steel welding elements arranged side by side and equally controlled they are
supported on special load carrying and control systems, intermediatesealing elements with form- and for
ce-fit clamping as well as marked by a continuous anchorage in the structure with permanent connection
to seal and coating.
Steel bridge expansion joints are used in Highway bridge decks, Service ramps, Multi- storey car parks
and so on.Stainless steel bridge expansion joints are used to prevent buildings or bridges appear some
cracks because of climate change.

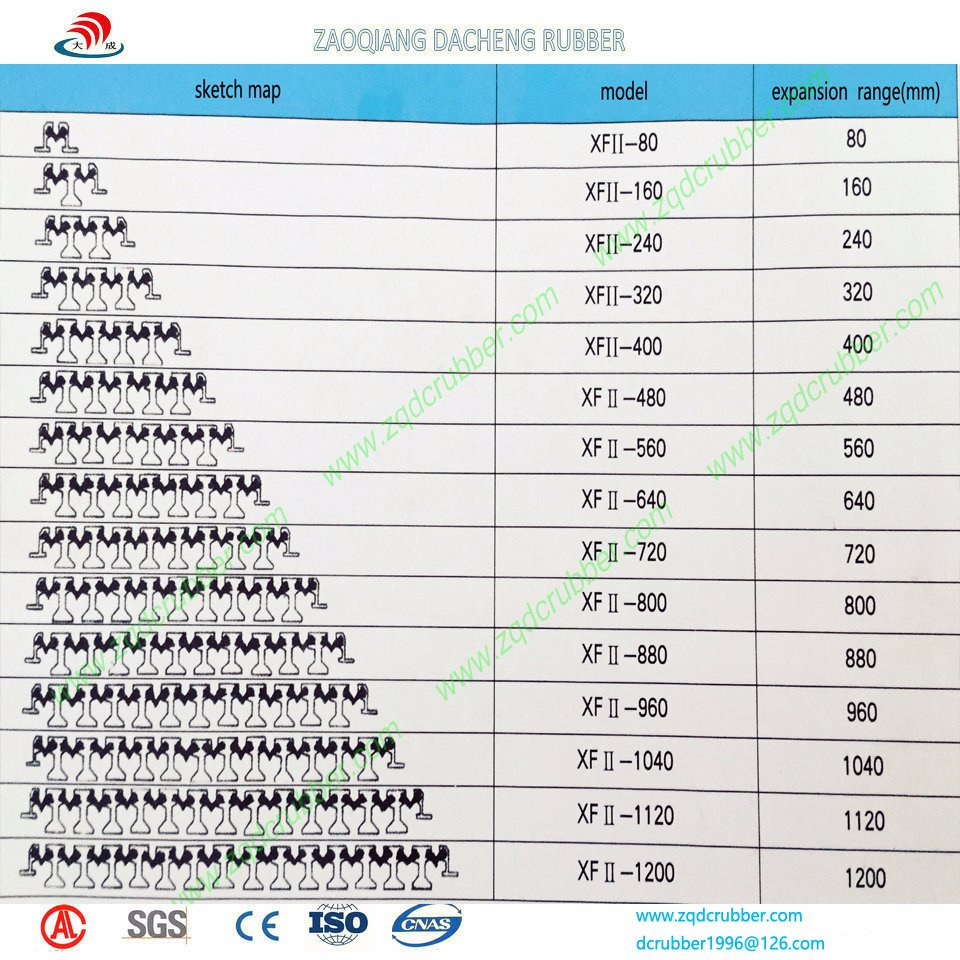

The size of steel bridge expansion joint
The expansion range contains 15 levels( from 80mm to1200mm)that can meet the requirements of various of bridges,In fact in our before orders,the highest expansion range was up to about 1700mm.
And we use EPDM rubber within the bridge expansion joint ,the suitable temperature range is from -40ºC-60ºC.
we wil design and produce suitable products according your detailed drawing you need.The following describes the work of the system.

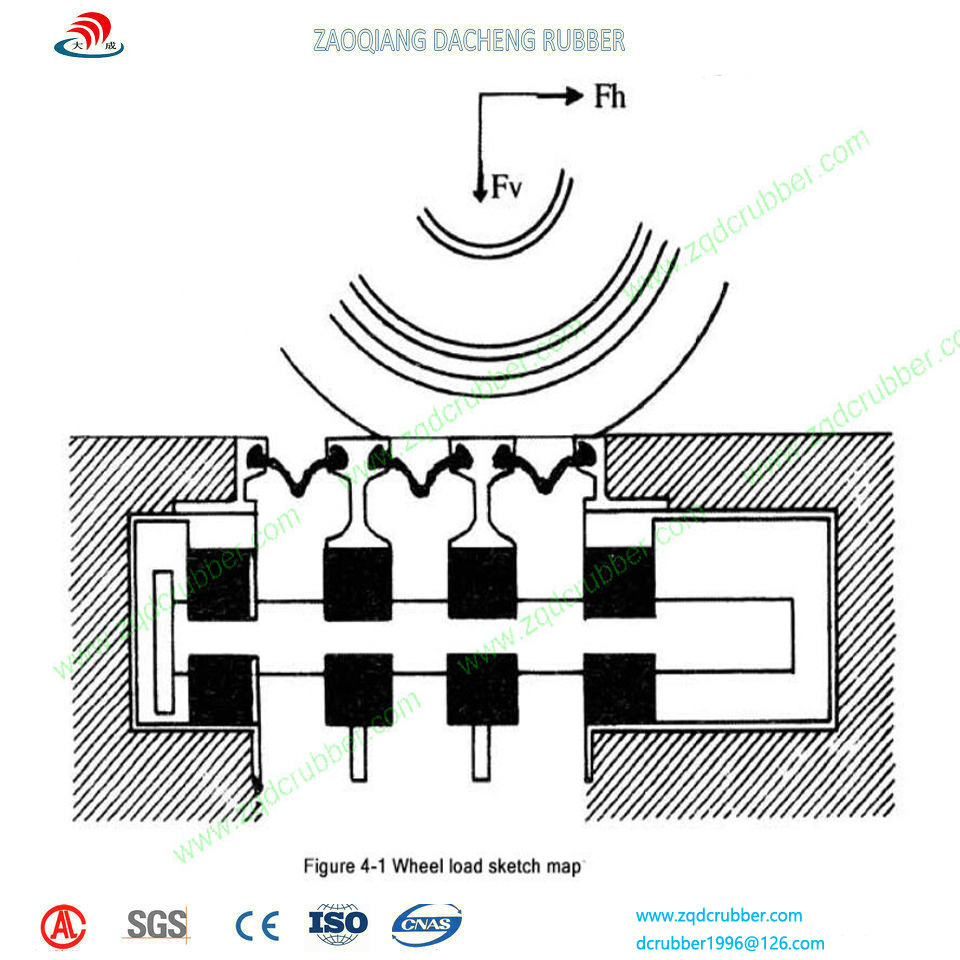

The work system of the bridge expansion joint includes three systems.Support ratation system,Waterproof sealing system and Anchorage system.

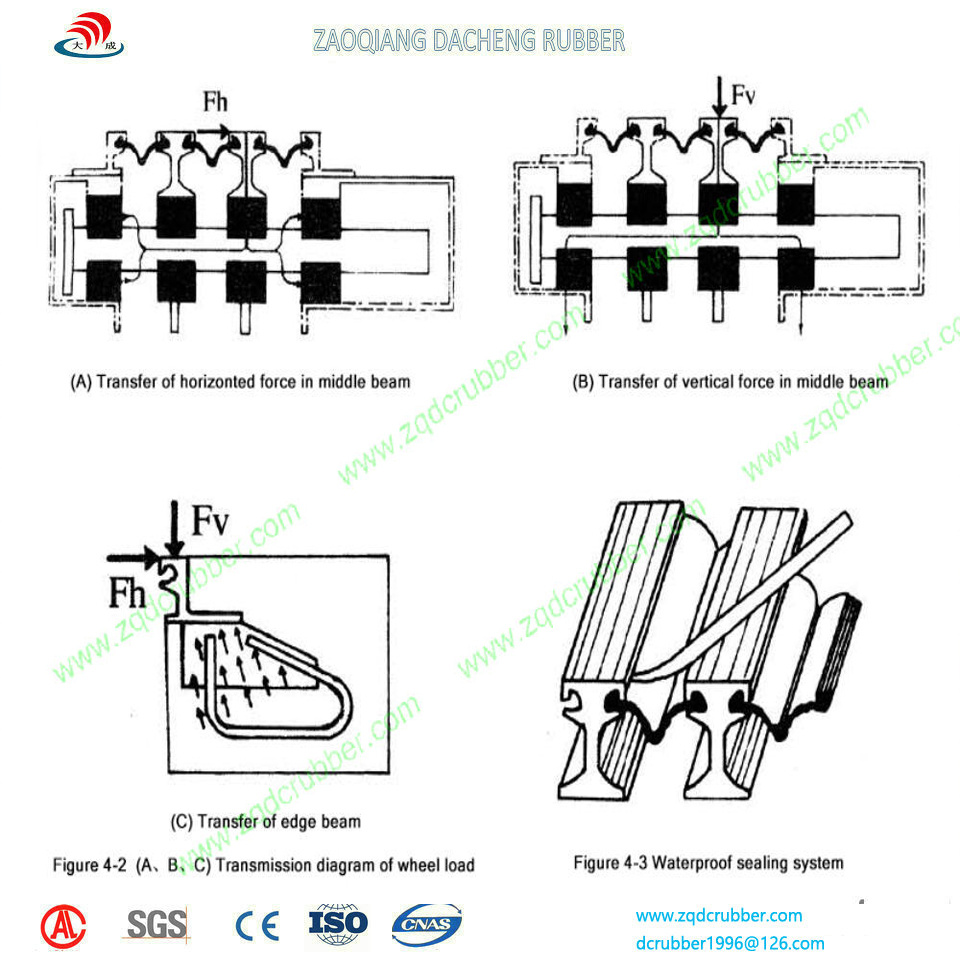

the following is support ratation system.
.
the following is waterproof sealing system
Bridge bearings and expansion joint are important parts of whole bridge components, but the amount money that spent on bridge bearing and expansion joint is only 2-3.5%, it is absolutely a wise choice to evaluate it within the whole project to prevent failed choice bringing unnecessary costs.
We ZAOQIANG DACHENG RUBBER Co., Ltd are the state-owned company as the overseas sales company of Hengshui Rubber Co. Ltd, which is iniated in 1954 and located in High and New Technology Industrial Park, Hengshui City, Hebei Province, the company has held the enterprise spirit of "solidarity, progress, pragmatic, contribution, and striving to be the first" and adhered to the quality guideline of " market oriented technical progress, taking the lead in the industry with quality, keeping good faith to ensure customer satisfaction". Through independent research and development, and joint development with scientific research institutes, it has realized great-leap-forward development and grown from a small workshop with some dozens of workers in 1954 into a group enterprise Hengshui Rubber Co., Ltd as the core.
The dominant products include, Bridge bearings, bridge expansion devices, engineering ruber water-proof components, prestressed steel bars and high molecular new-type water-proof materials, protective fences, sound-absorbing panel, bridge inspection vehicle, in 8 categories and over 10, 000 varieties.
The company has participated in construction of many national key road and railway lines. As well as many forign countries' infrastructure construtions, such as Congo Maya International airport, Dubai Meidan racecourse, etc...Many kinds of projects we coperated with China National Construction Companies who have oversea teams all over the world and exported directly to other countries. With excellent product quality, excellent after-sales service by the vast nuber of customers and experts praise.
