| Price: | US $ 650/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | EZ-6AL |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Punch Force: | 60kn |
| Stroke: | 25mm |
| Punch/Charge: | 250times |
| Battery Voltage: | 18V, 3.0 Ah ,Li-ion |
| Charging Time: | 2 Hours |
| Weight: | 2.25kg |
| Size Of Tool: | 392X116X75 |
| TECHNICAL DATA | |
| Item No: | EZ-6AL |
| Crimping force: | 60KN |
| Stroke: | 25mm |
| Weight of tool: | 2.25kg |
| Size of tool: | 392x116x75 |
| Thread of piston: | 3/4-19UN |
| Time/charge: | 250times(Max.mild steel 3mm,dia49.6mm) |
| Voltage of battery: | 18V |
| Capacity: | 3.0Ah |
| Voltage: | 100-240V AC |
| Package: | Plastic box |
| ACCESSORIES | |
| Battery: | 2pcs |
| Charger: | 1pc |
| sealing ring of cylinder: | 1set |
| sealing ring of safety valve: | 1set |
| 3.5mm mild steel: | Max.punching hole 61.5mm(pipe conduct 2") |
| 2mm mild steel: | Max punching hole161.9mm( pipe conduct 2") |
| 2mm stainless steel: | Max punching hole 61.5mm( pipe conduct 2") |

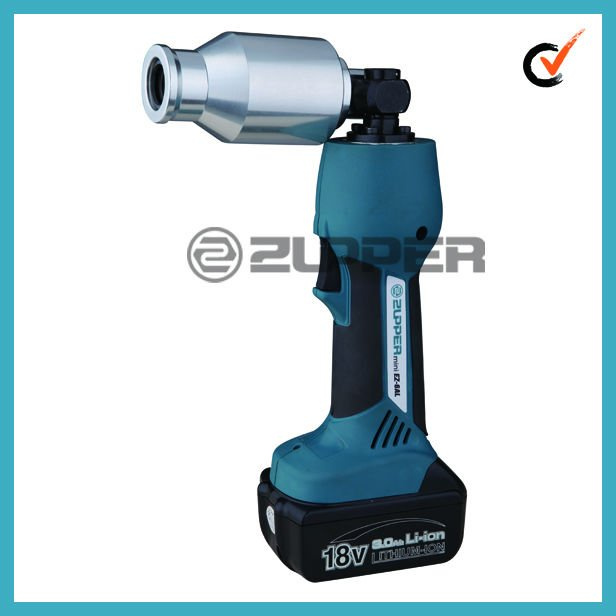

| FEATURES EZ-6AL portable punch hole machine 1. All tools can be controlled by one key-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position. 2. LCD Data Display-The Total Crimping Times, Electricity Power, Errors Info can be checked by the Display, also we can special making for customer to show the pressure if necessary. 3. Air Cooling Heat dissipation system to extend using. 4. Heads Rotates 350 degree in order to gain better access to tight corners or other difficult working areas. 5. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles copare to NiMH batteries. 6. The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies forwards the connector and a slow crimping motion 7. USD connect to memory crimping time | |
3. Shipping.
Port: | Shanghai/Ningbo (Usually) | |
Shipping : | By Air, By Sea or By Express | |
Shipping Time : | 4-10days By Express |
|
7-15days By Air | ||
30-45days By Sea | ||
Trade Terms | FOB, CIF, EXW, CFR, ... | |
4. Company information
Taizhou juli tools co., LTD., founded in 1983.Is one of the excellent transmission and distribution battery tools, hydraulic tools, pipe tools, fittings, cable connection terminalof the supplier. Its contain "TPT", and "ZUPPER" brands.
5. FAQ
Q 1: Is the whole working procedure finished by your workshop?
Re: Yes, the whole working procedure finished by our workshop.
Q 2: How about your stock?
Re: We always are not in stock, we produce as customers' requirement.
Q 4: What is your delivery time ?
Re: It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.
Q 5: How do you guarantee your quality ?
Re: Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material ,machining roughly in the first step. casting ,forging ,punching ,heat treatment ,finish machining ,painting ,assembling and finally packing ,we will spot check for each steps.
Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.
Q 6: What's your warranty time?
Re: The warranty time is 12 month.
Sample trial order is welcomed.
You can visit our factory at any time.
