| Price: | US $ 0.399-0.488/Set |
|---|---|
| Min Order: | 3500/Set |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | 6205ZZ |
|---|---|
| Certificate: | ISO9001:2009; ISO/TS16949:2009 |
| Grease: | Shell or others |
| Cage: | Steel |
| Bearing Material: | Gcr15 Chromium Steel |
| Rolling Body: | Ball Bearings |
| The Number Of Rows: | Single |
| Spherical: | Non-Aligning Bearings |
| Outer Dimension: | 26-160 mm |

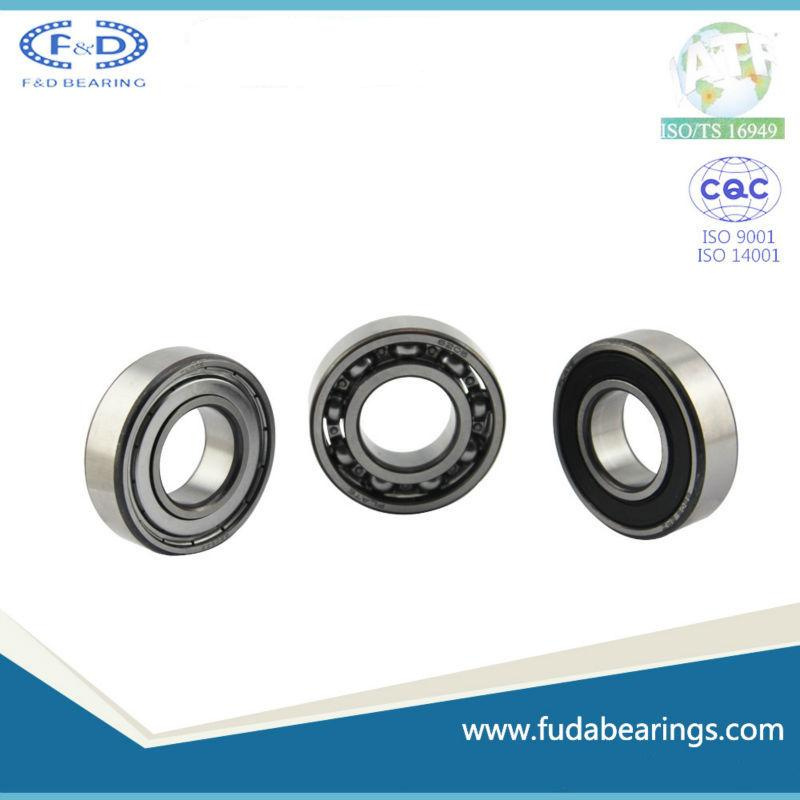

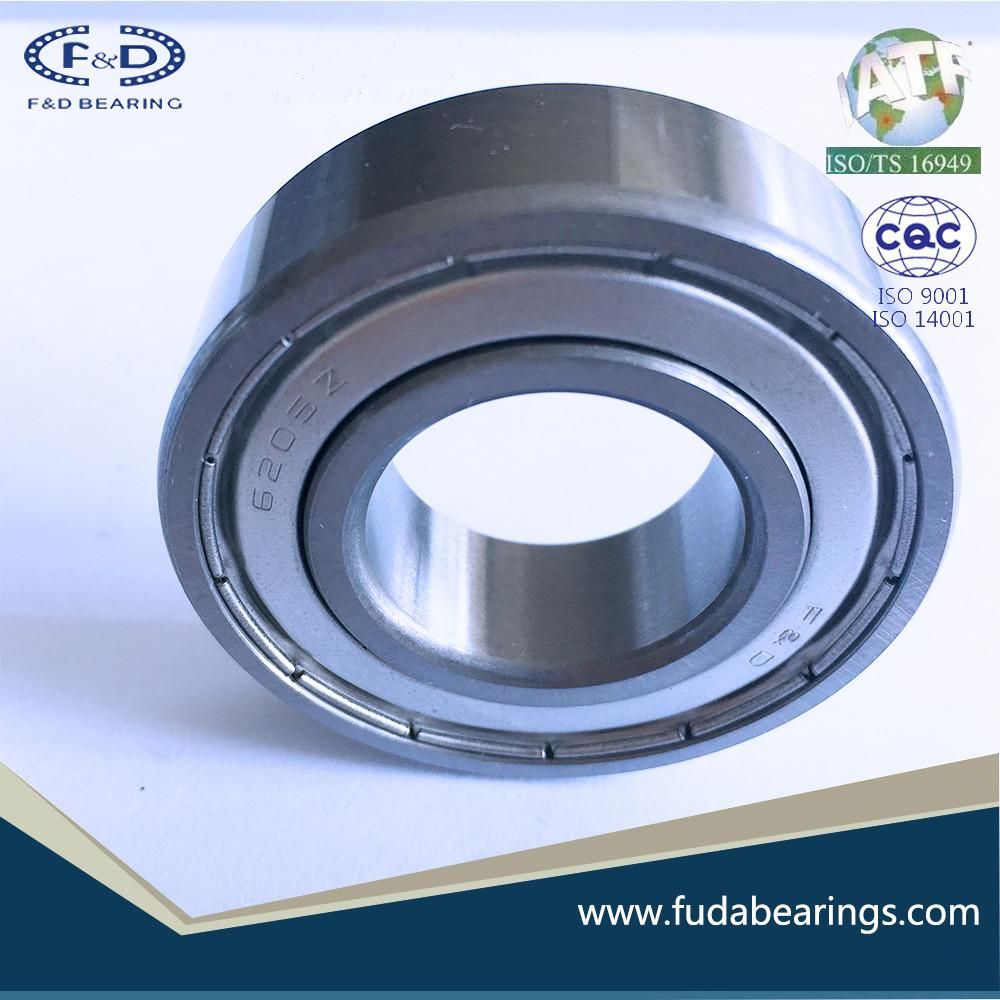

F&D bearing 6205ZZ for tradmill bearing Exercise Walker home use treadmill roller bearings
1.Bearing Factory more than 20 years
2.F&D,CBB bearing brand look for distributor and agents.
3.OEM Accepted.
4.ISO9001:2000. TS16949.
The type of F&D 6205ZZ bearing ,materials used will determine the life span, reliability and performance of the bearings. However, there are many factors affecting the performance of the bearings which include the selection of the load carrying capacity, the rolling contact conditions, and the cleanliness of the operating environment and the dimensional stability of the bearing components.
Fuda bearing company has adopted the carbon-chromium steel material(Gcr15) in our productionof the bearing.

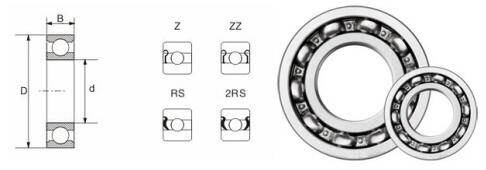

| Bearing No. | I.D | O.D | W | Loading Rating(KN) | Steel Ball Parameter | Max Speed | ||||||
| d | D | B | Dynamic | Static | No. | Size | Grease | Oil | ||||
| mm | inch | mm | inch | mm | inch | Cr | Cor | mm | r/min | r/min | ||
| 6000 | 10 | 0.3937 | 26 | 1.0236 | 8 | 0.3150 | 4.55 | 1.95 | 7 | 4.763 | 29000 | 34000 |
| 6001 | 12 | 0.4724 | 28 | 1.1024 | 8 | 0.3150 | 5.10 | 2.39 | 8 | 4.763 | 26000 | 30000 |
| 6002 | 15 | 0.5906 | 32 | 1.2598 | 9 | 0.3543 | 5.60 | 2.84 | 9 | 4.763 | 22000 | 26000 |
| 6003 | 17 | 0.6693 | 35 | 1.3780 | 10 | 0.3937 | 6.80 | 3.35 | 10 | 4.763 | 20000 | 24000 |
| 6004 | 20 | 0.7874 | 42 | 1.6535 | 12 | 0.4724 | 9.40 | 5.05 | 9 | 6.350 | 18000 | 21000 |
| 6005 | 25 | 0.9843 | 47 | 1.8504 | 12 | 0.4724 | 10.10 | 5.85 | 10 | 6.350 | 15000 | 18000 |
| 6006 | 30 | 1.1811 | 55 | 2.1654 | 13 | 0.5118 | 13.20 | 8.30 | 11 | 7.144 | 13000 | 15000 |
| 6007 | 35 | 1.3780 | 62 | 2.4409 | 14 | 0.5512 | 16.00 | 10.30 | 11 | 7.938 | 12000 | 14000 |
| 6008 | 40 | 1.5748 | 68 | 2.6772 | 15 | 0.5906 | 16.80 | 11.50 | 12 | 7.938 | 10000 | 12000 |
| 6009 | 45 | 1.7717 | 75 | 2.9528 | 16 | 0.6299 | 21.00 | 15.10 | 12 | 8.731 | 9200 | 11000 |
| 6010 | 50 | 1.9685 | 80 | 3.1496 | 16 | 0.6299 | 21.80 | 16.60 | 13 | 8.731 | 8400 | 9800 |
| 6011 | 55 | 2.1654 | 90 | 3.5433 | 18 | 0.7087 | 28.30 | 21.20 | 12 | 11.000 | 7700 | 9000 |
| 6012 | 60 | 2.3622 | 95 | 3.7402 | 18 | 0.7087 | 29.50 | 23.20 | 13 | 11.000 | 7000 | 8300 |
| 6013 | 65 | 2.5591 | 100 | 3.9370 | 18 | 0.7087 | 30.50 | 25.20 | 13 | 11.112 | 6500 | 7700 |
| 6014 | 70 | 2.7559 | 110 | 4.3307 | 20 | 0.7874 | 38.00 | 31.00 | 13 | 12.303 | 6100 | 7100 |
| 6015 | 75 | 2.9528 | 115 | 4.5276 | 20 | 0.7874 | 39.50 | 33.50 | 14 | 12.303 | 5700 | 6700 |
| 6016 | 80 | 3.1496 | 125 | 4.9213 | 22 | 0.8661 | 47.50 | 40.00 | 14 | 13.494 | 5300 | 6200 |
| Bearing No. | I.D | O.D | W | Loading Rating(KN) | Steel Ball Parameter | Max Speed | ||||||
| d | D | B | Dynamic | Static | No. | Size | Grease | Oil | ||||
| mm | inch | mm | inch | mm | inch | Cr | Cor | mm | r/min | r/min | ||
| 6200 | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 5.10 | 2.39 | 8 | 4.763 | 25000 | 30000 |
| 6201 | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 6.10 | 2.75 | 7 | 5.953 | 22000 | 26000 |
| 6202 | 15 | 0.5906 | 35 | 1.3780 | 11 | 0.4331 | 7.75 | 3.60 | 8 | 5.953 | 19000 | 23000 |
| 6203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 9.60 | 4.60 | 8 | 6.747 | 18000 | 21000 |
| 6204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 12.80 | 6.65 | 8 | 7.938 | 16000 | 18000 |
| 6205 | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 14.00 | 7.85 | 9 | 7.938 | 13000 | 15000 |
| 6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 19.50 | 11.30 | 9 | 9.525 | 11000 | 13000 |
| 6207 | 35 | 1.3780 | 72 | 2.8346 | 17 | 0.6693 | 25.70 | 15.30 | 9 | 11.112 | 9800 | 11000 |
| 6208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 29.10 | 17.80 | 9 | 12.000 | 8700 | 10000 |
| 6209 | 45 | 1.7717 | 85 | 3.3465 | 19 | 0.7480 | 32.50 | 20.40 | 10 | 12.000 | 7800 | 9200 |
| 6210 | 50 | 1.9685 | 90 | 3.5433 | 20 | 0.7874 | 35.00 | 23.20 | 10 | 12.700 | 7100 | 8300 |
| 6211 | 55 | 2.1654 | 100 | 3.9370 | 21 | 0.8268 | 43.50 | 29.20 | 10 | 14.288 | 6400 | 7600 |
| 6212 | 60 | 2.3622 | 110 | 4.3307 | 22 | 0.8661 | 52.50 | 36.00 | 10 | 15.081 | 6000 | 7000 |
| 6213 | 65 | 2.5591 | 120 | 4.7244 | 23 | 0.9055 | 57.50 | 40.00 | 10 | 16.669 | 5500 | 6500 |
| 6214 | 70 | 2.7559 | 125 | 4.9213 | 24 | 0.9449 | 62.00 | 44.00 | 11 | 16.462 | 5100 | 6000 |
| 6215 | 75 | 2.9528 | 130 | 5.1181 | 25 | 0.9843 | 66.00 | 49.50 | 11 | 17.462 | 4800 | 5600 |
| 6216 | 80 | 3.1496 | 140 | 5.5118 | 26 | 1.0236 | 72.50 | 53.00 | 11 | 18.256 | 4500 | 5300 |
| 6217 | 85 | 3.3465 | 150 | 5.9055 | 28 | 1.1024 | 83.50 | 64.00 | 11 | 19.844 | 4200 | 5000 |
| 6218 | 90 | 3.5433 | 160 | 6.2992 | 30 | 1.1811 | 96.00 | 71.50 | 10 | 22.225 | 4000 | 4700 |
| Bearing No. | I.D | O.D | W | Loading Rating(KN) | Steel Ball Parameter | Max Speed | ||||||
| d | D | B | Dynamic | Static | No. | Size | Grease | Oil | ||||
| mm | inch | mm | inch | mm | inch | Cr | Cor | mm | r/min | r/min | ||
| 6300 | 10 | 0.3937 | 35 | 1.3780 | 11 | 0.4331 | 8.20 | 3.50 | 6 | 7.144 | 23000 | 27000 |
| 6301 | 12 | 0.4724 | 37 | 1.4567 | 12 | 0.4724 | 9.70 | 4.20 | 6 | 7.938 | 20000 | 24000 |
| 6302 | 15 | 0.5906 | 42 | 1.6535 | 13 | 0.5118 | 11.40 | 5.45 | 7 | 7.938 | 17000 | 21000 |
| 6303 | 17 | 0.6693 | 47 | 1.8504 | 14 | 0.5512 | 13.50 | 6.55 | 7 | 8.731 | 16000 | 19000 |
| 6304 | 20 | 0.7874 | 52 | 2.0472 | 15 | 0.5906 | 15.90 | 7.90 | 7 | 9.525 | 14000 | 27000 |
| 6305 | 25 | 0.9843 | 62 | 2.4409 | 17 | 0.6693 | 21.20 | 10.90 | 7 | 11.500 | 12000 | 14000 |
| 6306 | 30 | 1.1811 | 72 | 2.8346 | 19 | 0.7480 | 26.70 | 15.00 | 8 | 12.000 | 10000 | 12000 |
| 6307 | 35 | 1.3780 | 80 | 3.1496 | 21 | 0.8268 | 33.50 | 19.10 | 8 | 13.494 | 8800 | 10000 |
| 6308 | 40 | 1.5748 | 90 | 3.5433 | 23 | 0.9055 | 40.50 | 24.00 | 8 | 15.081 | 7800 | 9200 |
| 6309 | 45 | 1.7717 | 100 | 3.9370 | 25 | 0.9843 | 53.00 | 32.00 | 8 | 17.462 | 7000 | 8200 |
| 6310 | 50 | 1.9685 | 110 | 4.3307 | 27 | 1.0630 | 62.00 | 38.50 | 8 | 19.050 | 6400 | 7500 |
| 6311 | 55 | 2.1654 | 120 | 4.7244 | 29 | 1.1417 | 71.50 | 45.00 | 8 | 20.638 | 5800 | 6800 |
| 6312 | 60 | 2.3622 | 130 | 5.1181 | 31 | 1.2205 | 82.00 | 52.00 | 8 | 22.225 | 5400 | 6300 |
| 6313 | 65 | 2.5591 | 140 | 5.5118 | 33 | 1.2992 | 92.50 | 60.00 | 8 | 24.000 | 4900 | 5800 |
| 6314 | 70 | 2.7559 | 150 | 5.9055 | 35 | 1.3780 | 104.00 | 68.00 | 8 | 25.400 | 4600 | 5400 |
| 6315 | 75 | 2.9528 | 160 | 6.2992 | 37 | 1.4567 | 113.00 | 77.00 | 8 | 26.988 | 4300 | 5000 |
| 6316 | 80 | 3.1496 | 170 | 6.6929 | 39 | 1.5354 | 123.00 | 86.50 | 8 | 28.575 | 4000 | 4700 |

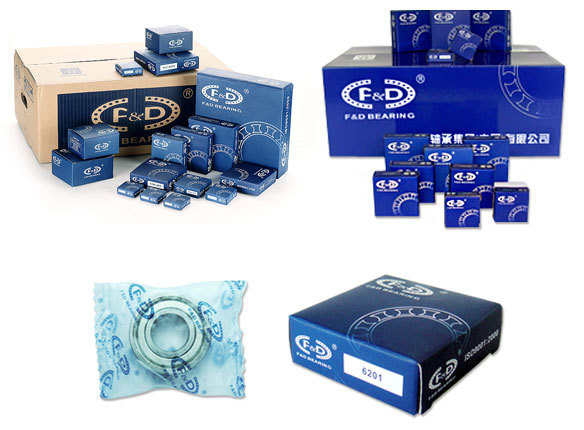

| Packaging Detail | 1.Industrial Exporting Package with anti-tarnish paper/Carton/Pallet 2. Individual plastic/Carton/pallet 3. As the customers' requirements |
| Delivery Detail | 30-45 days for normal order |
At present, the Corporation has more than 1,000 employees, a fixed assets of 1.05 billion yuan, and produces 250 million sets of bearings annually. In 2010, the Corporation achieved bearing sales of 650 million yuan. The Corporation's products are widely used in more than 50 countries and regions under 2 independent brands, namely "F&D" and "FLATE". Now Fuda created new brand "CBB".

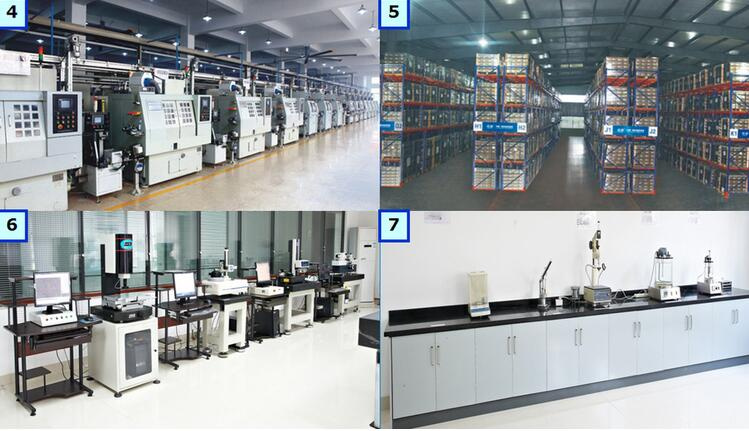

Since 2008, the Corporation has set up a Research & Development Center equipped with multiple laboratories used for precision measurement, mechanical testing, lifespan testing, and physicochemical testing, to continuously upgrade its skills and raise its manufacturing standard and product's precision. Our workshops are installed with a series of advanced numerically-controlled, grinding and assembly equipment that utilize centralized filtration and cooling systems. Together with the production equipment suppliers, we developed these grinding, ultra-precision, fully automated integrated production lines, and own the intellectual property rights. The precision level of the products are at P5 level and above, with noise level reaching Z4, V4 and above. Some of our projects have exceeded the 30% precision reserves. Our products are widely used in electric motors, automobiles, motorcycles, household appliances, textile, electric tools and water pump equipment industries, both locally and globally.
Our Trade Partner
Why Choose US
About US

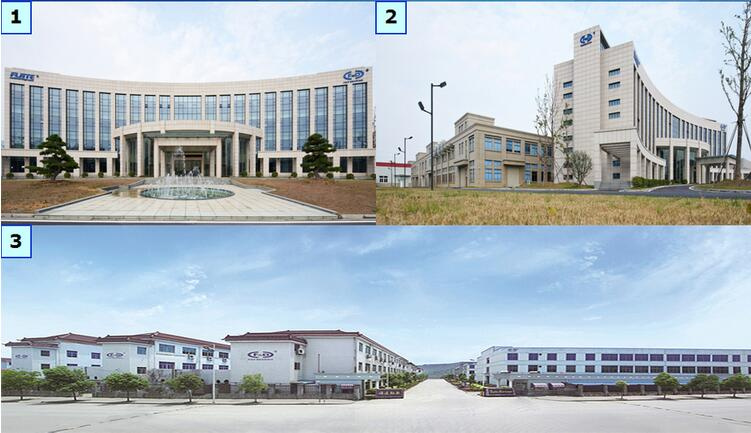

Fuda Bearing Corporation Co., Ltd. was founded in 1996, and became one of Chinese largest bearing manufacturers and exporters. which specializes in designing and producing deep groove ball bearings, pillow block bearings with high quality & precision. After more than 10 years'hard work, Fuda has developed into a high-tech company that is capable of bearing research & development, manufacturing, and marketing. The Corporation consists of 5 subsidiaries including Zhejiang Fuda Bearing Co., Ltd, Flate Precision Tech. Co.,Ltd, Cixi Unit Machinery Co., Ltd, Cixi Oyat Bearing Co.,Ltd, Fuda Bearing Corporation Imp.& Exp.Co.Ltd. Now Fuda has employees more than 1000 with the fixed assets of RMB 1.05 billion. And the annual production capacity can reach 25 million sets. In 2010, the bearing sales volume was RMB 650 millions.Besides it creates two self-owned brands called F&D and CBB. The products are well received in more than 50 countries and regions.
Quality Assurance
Product quality is the lifeline of an enterprise. In order to possessing the leading technology, our company implements the quality control system and establishes a technical and strict inspection team. As per the regulation of three-dimensional management and multiple checks, each product was inspected by the producer, inspector, inspection department and quality department elaborately, especially to the important inspection items and precision inspection item.
Our Service
High quality, good credit and excellent service are the tenet of our company. Customers'satisfaction is our lifeline, as well as our highest honor. We will do our best to meet your requirements, and will do better in the future.
