Factory 125mm Double Row Round Edge Diamond Grinding Wheel
| Price: |
US $ 4.8-5/Piece |
| Min Order: |
30/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PCDSB |
| Item Name: |
Diamond Grinding Wheel |
| Arbor Hole: |
16mm |
| Diameter: |
5inch |
| Tooth Thickness: |
10mm |
| Segment Height: |
5mm |
| Delivery Time: |
10-15 Days |
| OEM: |
Accept |
| Application: |
Polishing Grinding&Concrete |
| Type: |
Turbo, Single Row, Double Row etc |
| Technology: |
Cold Pressed, Hot Pressed, Laser Welding, Silver |
Product Description

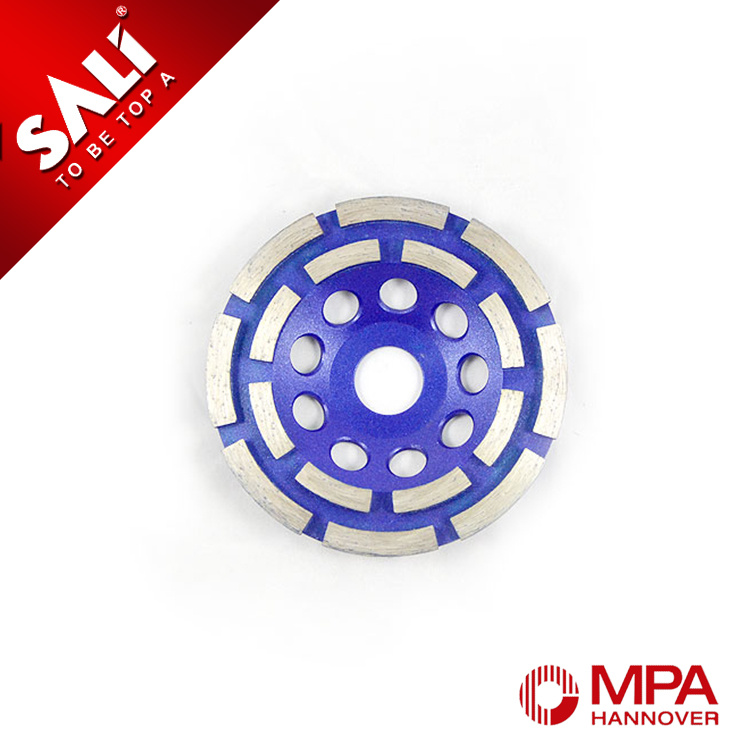

125MM double row round edge diamond grinding wheel
1.specification
| Shank Material | 65Mn |
| Segement | 7MM |
| Type | Turbo, Single row, double row |
| Technology | Cold pressed, hot pressed, laser welding, silver welding |
| Grit Size | 30/40,40/50, 50/60, 60/80 |
| Diamond Concentration | 20% - 30% |
| HRB | 85-105 |
Application | Diameter | Segment Height | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Single row | 105mm(4") | 5 | 7 | 8 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 9 | M14,5/8"-11,22.23 |
125mm(5") | 5 | 7 | 10 | M14,5/8"-11,22.23 |
150mm(6") | 5 | 7 | 12 | M14,5/8"-11,22.23 |
180mm(7") | 5 | 7 | 14 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Double row | 105mm(4") | 5 | 7 | 16 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 18 | M14,5/8"-11,22.23 |
125mm(5") | 5 | 7 | 20 | M14,5/8"-11,22.23 |
150mm(6") | 5 | 7 | 24 | M14,5/8"-11,22.23 |
180mm(7") | 5 | 7 | 28 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height | Segment Width(mm) | Segment No. | Arbor (mm) |
Turbo | 105mm(4") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |
125mm(5") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |

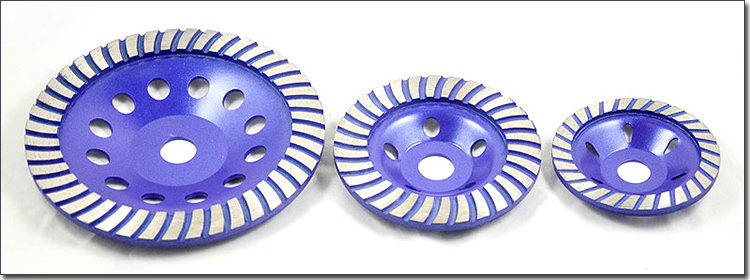

2.Picture
3.Application:
Used for grinding marble, granite, stone, ceramic, concrete, asphalt, brick.
4.Others
We, SALI is a professional manufacture which is located iin the hardware city Yongkang, Zhejiang, China. With sales department in Yiwu City which is the world famous city ofr its small comodity market. SALI Brand was introduced as a well-known trademark by Govenment in China.
SALI has a strong strength of resin boned cutting and grinding disc, while diamond saw blade, TCT blade, flap disc, wire cup brush, drill and gloves also available. The main products cutting disc and grinding wheel have got MPa and EN12413 approved. Our annual turnover is over 100million RMB. Products have been exported to Asia, MID-east, European and Latin America Africa, etc. We SALI constantly update the products performance to meet the markets and strive to be top A on stable quality and sincere service.
And Currently, we have sole agent in Sri Lanka, Ethiopia, Romania, Sudan, etc. Hope we have the great chance to support your business soon. Thank you.
Since we have established our own Brand SALI, a whole range products, includinig hand tools, all kind of abrasives tools will be encluded from time to time. And to promotion our brand all over the world, SALI will attending lots of exhibition to show our products, including Canton Fair (two times each year), Dubai hardware exhibition, Mexico hardware exhibition, Las Vegas Hardware exhibition, Indonesia Construction Exhibition, India Construction Exihibition, Shanghai Hardware Exhibition, etc.
Beside, SALI team spend time to visit our customers at Sri Lanka, Iran, Qatar, Ethiopia, Sudan, etc every year. Knowing their sales, helping advitising, and investigating market requirement.
To meet the increasing market demand, We have incresed our production plant up to 2500 square meters for cutting disc and grinding wheel, bring in over 40 molding machines (auto) to replace old one (semi-auto).
SALI is aiming to established a TOP A brand to the world, bringing safely, effiently to the end user.
