Factory Diamond Cutting Wheel Machines CNC Machine Lathe Awr32h
| Price: |
US $ 14000-17000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
AWR32H |
| Colour: |
Blue or Black |
| Controller: |
CNC or PC |
| Voltage: |
3 Phase 380 or Your Request Voltage |
| Cutting Effect: |
Rainbow Line or Cutting Line |
| Detection Way: |
Touch Ruby Probe System |
| Cutter: |
Special Diamond Cutter |
| Optimized Software: |
Designed for Optimize Program |
| Clamping Form: |
3 Jaws Chuck |
| Max Wheel Size: |
up to 27 Inch,30 Inch,or 32 Inch |
| Oversea Service: |
Offer |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

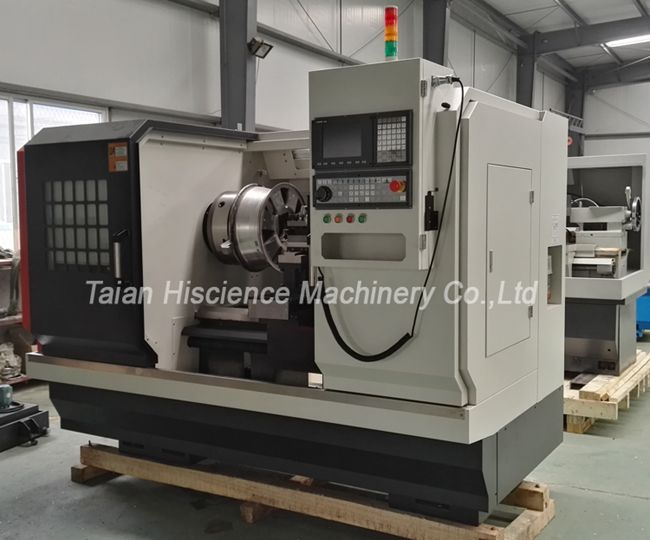

Factory Diamond Cutting Wheel Machines cnc machine lathe AWR32H
Specification list
| ITEMS | AWR32H |
Max. swing over bed (mm)(inch) | Φ880(30') |
Max. Diameter of wheel(mm) (inch) | Φ820(28') |
Cross slide travel (mm) | 450 |
Width of the rail (mm) | 400 |
Length of the rail (mm) | 1650 |
Size of the three-jaw chuck (inch) | 16' |
Range of spindle speed (RPM) | 50-1800 |
Spindle speed control | Automatic |
Spindle bore (mm) | Φ82 |
Taper of spindle bore | 1:20(Φ90) |
Taper of spindle nose | A2-10 |
Adjustable stroke of carrier in X direction | 100mm |
Max. size of tool post | 25×25mm |
Stations of tool carrier | 4 position |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min |
Motor power | 7.5KW |
Machine size | (L/W/H) (mm) | 2970×1660×2080 |
Package size | 3120×1810×2350 |
Net weight | 3200KGS |
Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.
We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.
Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.
CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.
The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.
The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.
Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
