Prod Model: |
V20-001 |
Working Pressure: |
Pn1.0-32.0MPa |
Sealing: |
EPDM, PTFE or Teflon |
Media: |
Water, Air, Gas |
Thread Type: |
Thread Type: G(Bsp, BSPT), NPT Thread |
Insurance: |
Cathay Insurance |
OEM/ODM: |
Accepted |
Material: |
Brass |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Structure: |
Oil Seal Ball Valve |
Type: |
Tee Ball Valve |
Application: |
Household Usage |
Product Description

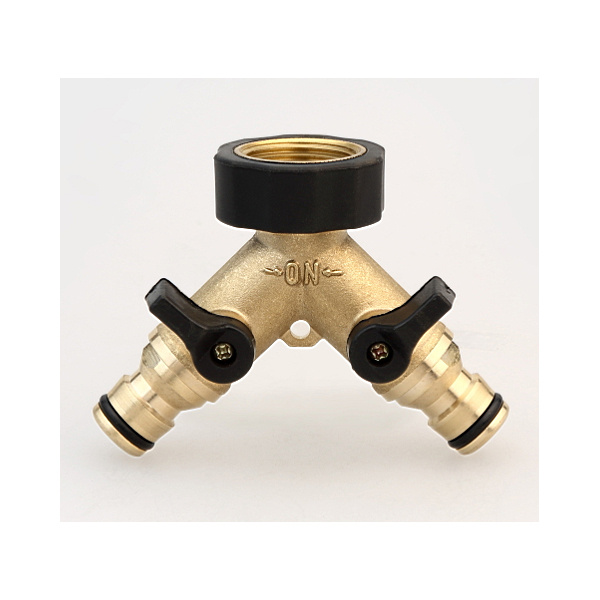

New product copper alloy Handle brass ball valve
The ball valve is mainly used to cut off or connect the line of medium, can also be used to regulate and control fluid, strong shear force between the metal seat seal V type ball valve V type ball core and welding hard alloy, especially suitable for containing fibers, small solid particles and other media.
Working principle
The ball valve is mainly used to cut off or connect the line of medium, can also be used to regulate and control fluid, strong shear force between the metal seat seal V type ball valve V type ball core and welding hard alloy, especially suitable for containing fibers, small solid particles and other media. Switch and multi way valve in the pipeline not only can flow, and flow diversion, flexible control of the medium, but also to turn off any channel to the other two channels. This kind of ball valve should be installed horizontally in the pipeline
The valve itself is compact, reliable sealing, simple structure, easy maintenance, sealing surface and spherical often in the closed state, the media can not easily be eroded, easy operation and maintenance for water, solvents, acids, and natural gas general working media, but also applies to poor working conditions of media, such as oxygen, hydrogen peroxide methane and ethylene, etc., are widely used in various industries. Ball valve body can be integrated, or can be combination.
Material | Brass forged body,brass bonnet, brass stem, brass packing gland nut,brass wedge disc and cast iron handwheel. Brass can be CuZn39Pb3,CZ121,CZ122,C37710,CW614N,CW617N,DZR BRASS, etc. |
Surface | Natural brass |
Size | 1/2" to 4" (DN15 to DN100) |
Testing Pressure | 100% tested with 0.6MPa - 0.8MPa by air. |
Samples Time | 1) 2 days - For our existing samples for reference 2) 15 days - If new size, need make the new mould |
OEM Acceptable | Yes |
Production Capacity | 100,000 pcs each month |
Packing Details | Poly bag, inner box, out carton and pallet. |
Payment Term | T/T ,L/C,,D/P,D/A,PAYPAL,WESTERN UNION |
Delivery Time | 20 days to 40 days after confirming the order |
Q.What are your quality control procedures?
A.We strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment .As an added measure,all clients receive production samples for approval.
Q.How are orders packed and shipped?
A.For custom order,we can design full-color custom packaging to match your brand ,if requires .Most shipments include boxes packed inside an outer carton and placed on a wooden pallet.
Q.Are there any special requirements for OEM purchases?
A.Yes.we require proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q.Do you come with a warranty ?
A.Yes.we back our products100%.
