Prod Model: |
V9300 |
Card Technology: |
Em Card/T5557card/M1 Card |
Working Voltage: |
DC6V, 4 PCS AA DC Battery. |
Working Temperature: |
-30~+60ºC |
Power Consumption: |
Static Current:≤20ua, Dynamic Cuttent:≤200mA |
Type: |
Electronic |
Shape: |
Mortise Door Lock |
Anti-theft Standard: |
A |
Part: |
Lock |
Usage: |
Hotel Door Locks |
Material: |
Stainless Steel 304 |
Style: |
ANSI Standard |
Backset: |
60mm/70mm |
Door Thickness Fits: |
30mm Above |
Lock Cylinder Length: |
70-120mm |
Product Description

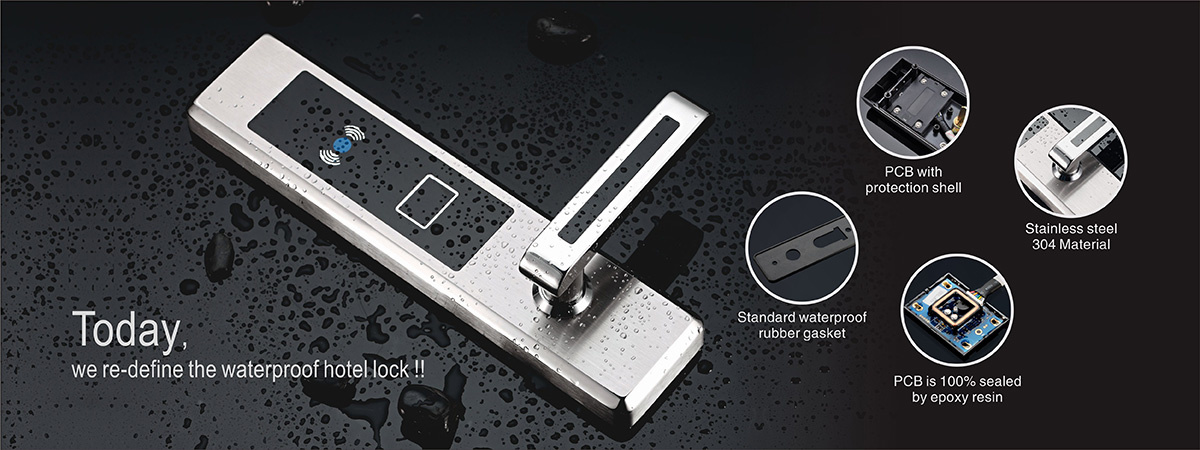

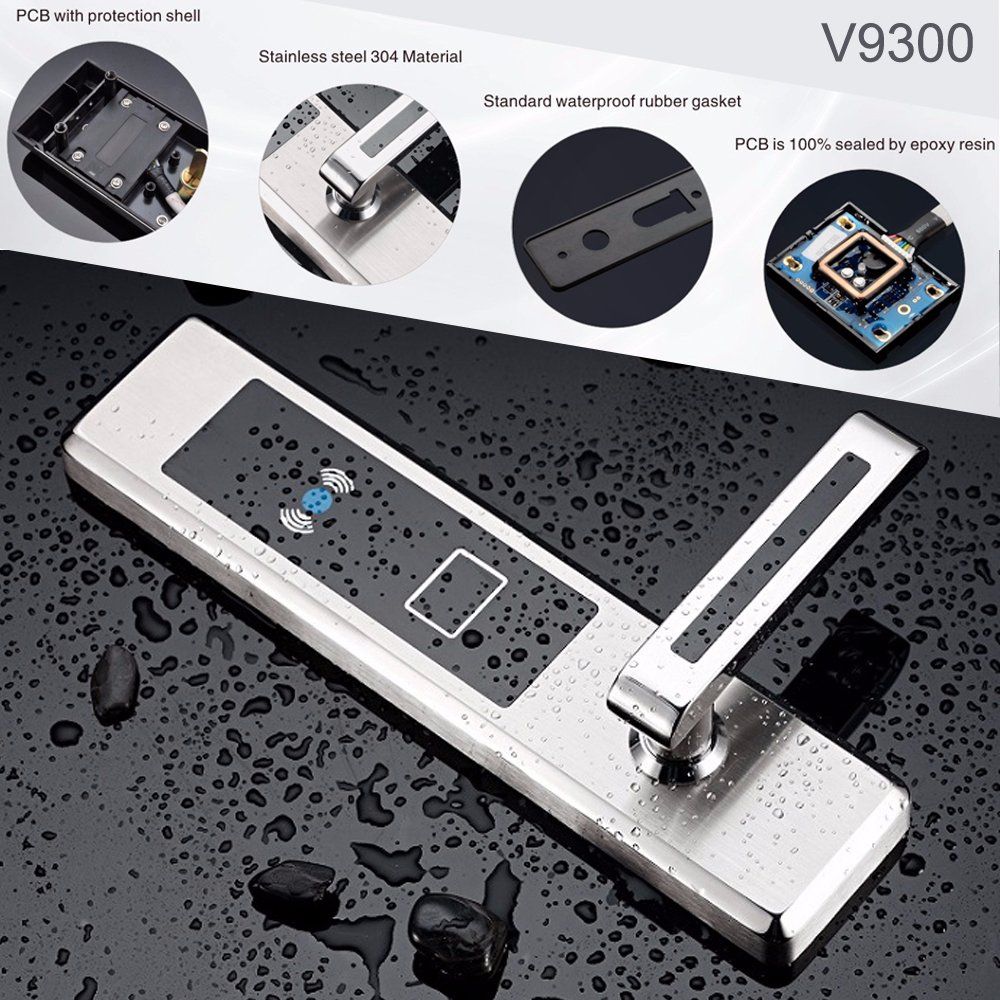

Factory Price RFID Card Keyless Hotel Waterproof Door Lock
Product Description
Weight | 3 KGS |
Dimension | 310L*74W*20H(mm) |
Card Technology | EM card/T5557 card/M1 card |
Static Load | < = 20μA |
Working Load : | <= 200mA |
Humidity | 10%-85% |
Working Temperature : | ' -30 ~ +60 degrees |
Material | Stainless Steel 304, Moisture-proof, Fire-proof |
Surface Treatment | Stainless steel drawbench processing/Gold PVD Coating |
Mortise | American Standard Mortise |
Card Technology | EM card/T5557 card/ M1 card |
Override Mechanical Key | 2 PCS For Each Lock |
Working Voltage | DC6V or 4PCS AA Alkaline Batteries.12 Months' Duration |
Low Battery Warning | Lower Than 4.8V |
Door Thickness | 35mm above |
Application | Hotel, Apartment ,office or House door |
Certificates | CE, FCC |

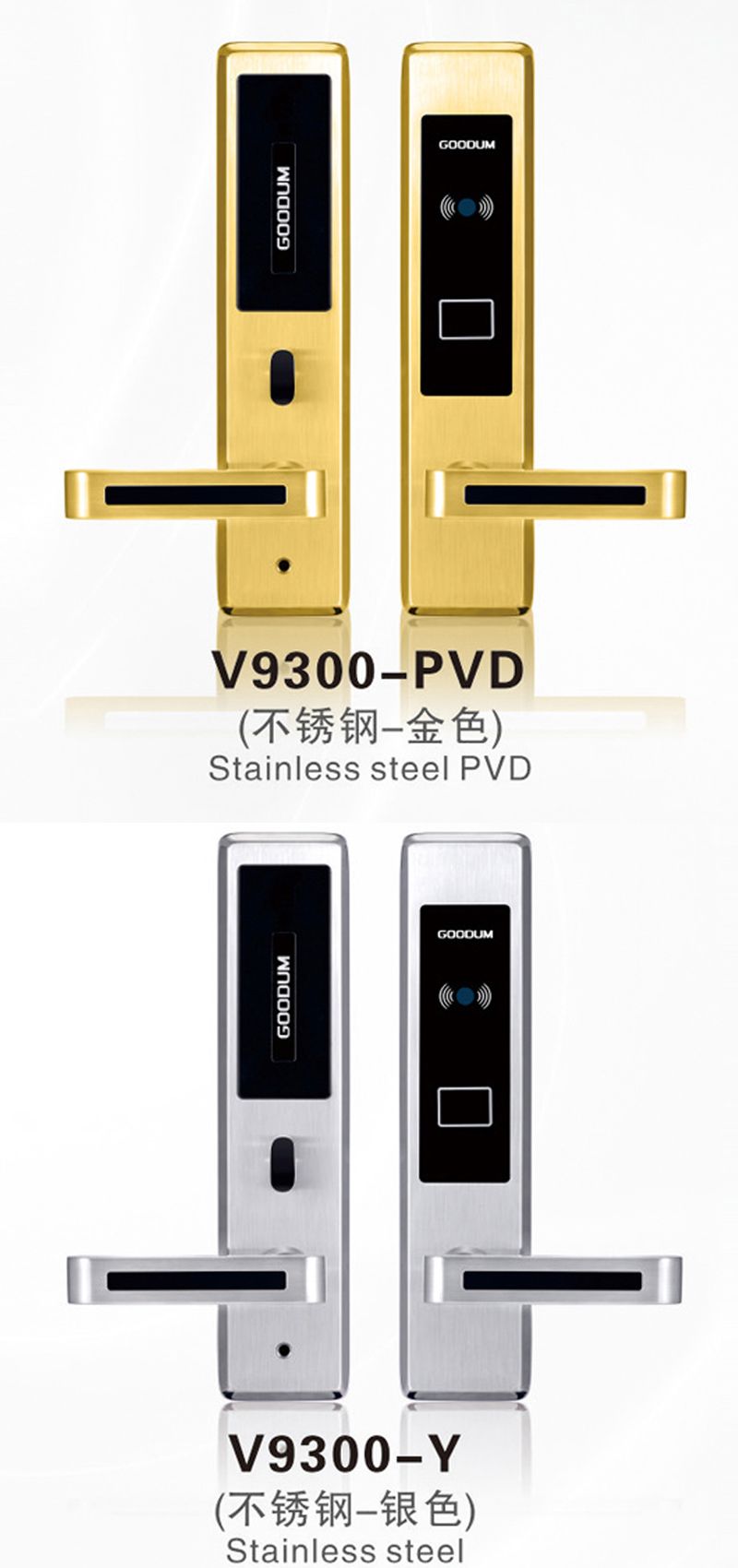

Different Colors
What's the function of the lock?
·Stand alone electronic lock with RFID technology.
·Brushed stainless steel finish.
·ANSI Standard mortise
·Handle lifted locking
·Compatible with M1 Energy Saver
·Open by intelligent inductive cards or mechanical key
·Personalized Locking System and cylinder cover
·Step by step installation software, easy operation. OEM acceptable.
·Classified Access Authorization for safety management.
·All card with validity, guest card expires automatically at default check out date and time.
·Lost guest card suspension simply by issuing a new guest card with suspending function.
·Low Battery Voltage warning.
·Lock failure alarm.

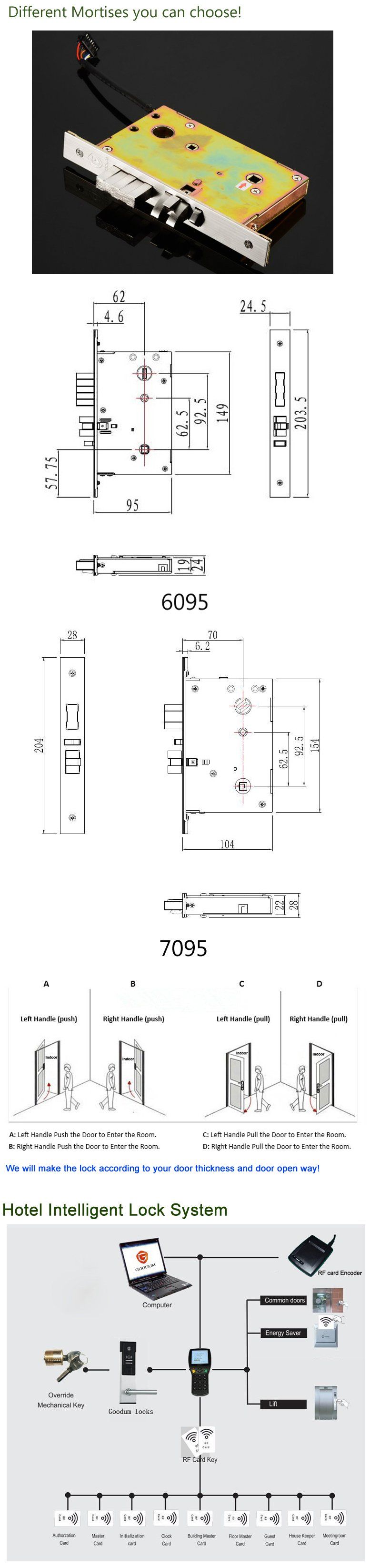

Drawings:
Package: 3.3kg/piece; 6 pieces/carton; 21kg/carton; carton size:645*400*307mm
Delivery: 5-15 workdays after the deposit
